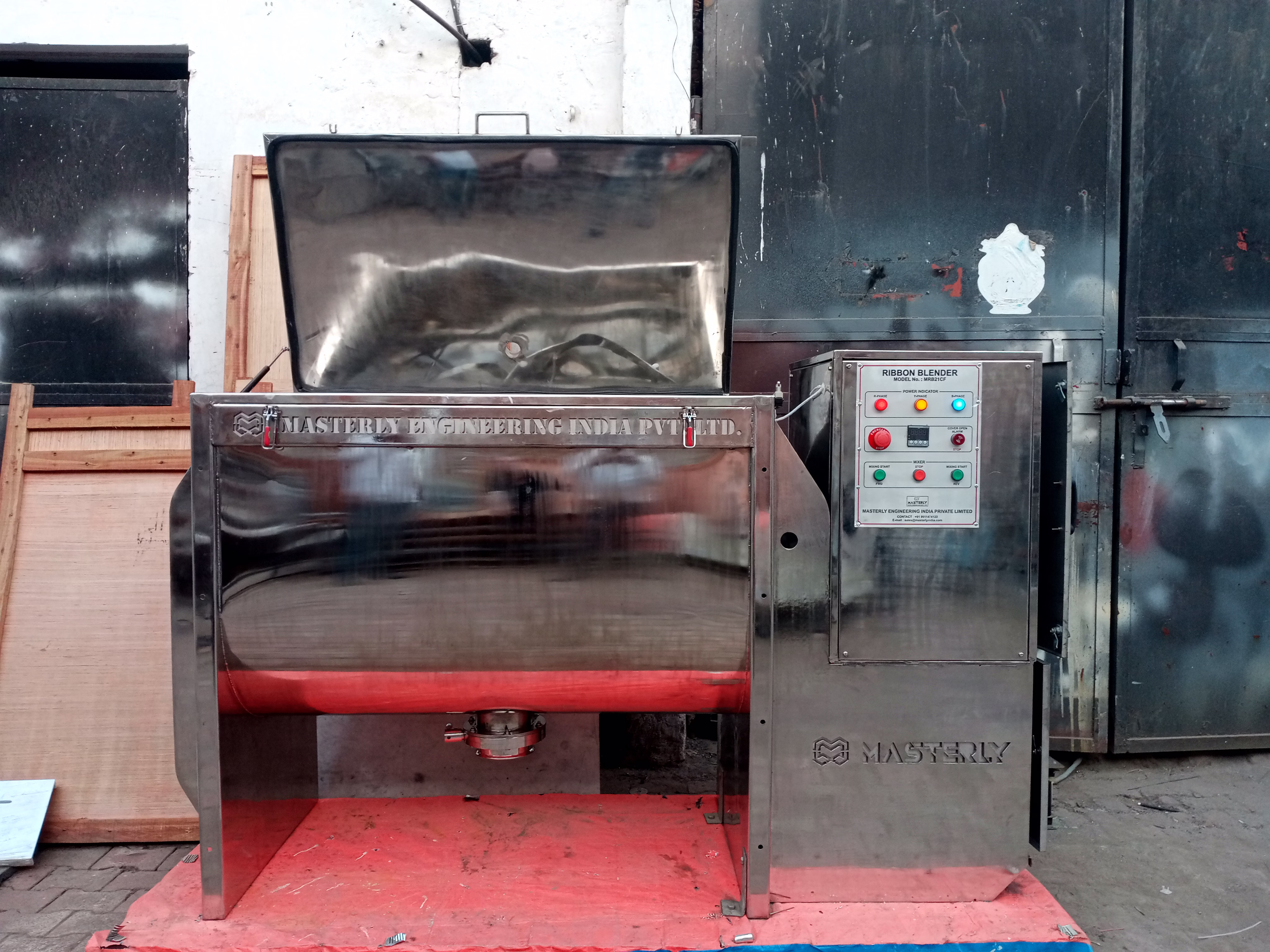

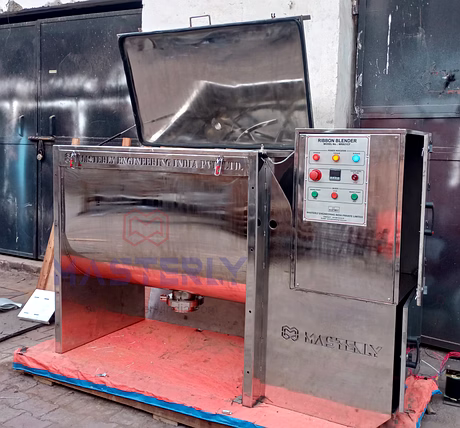

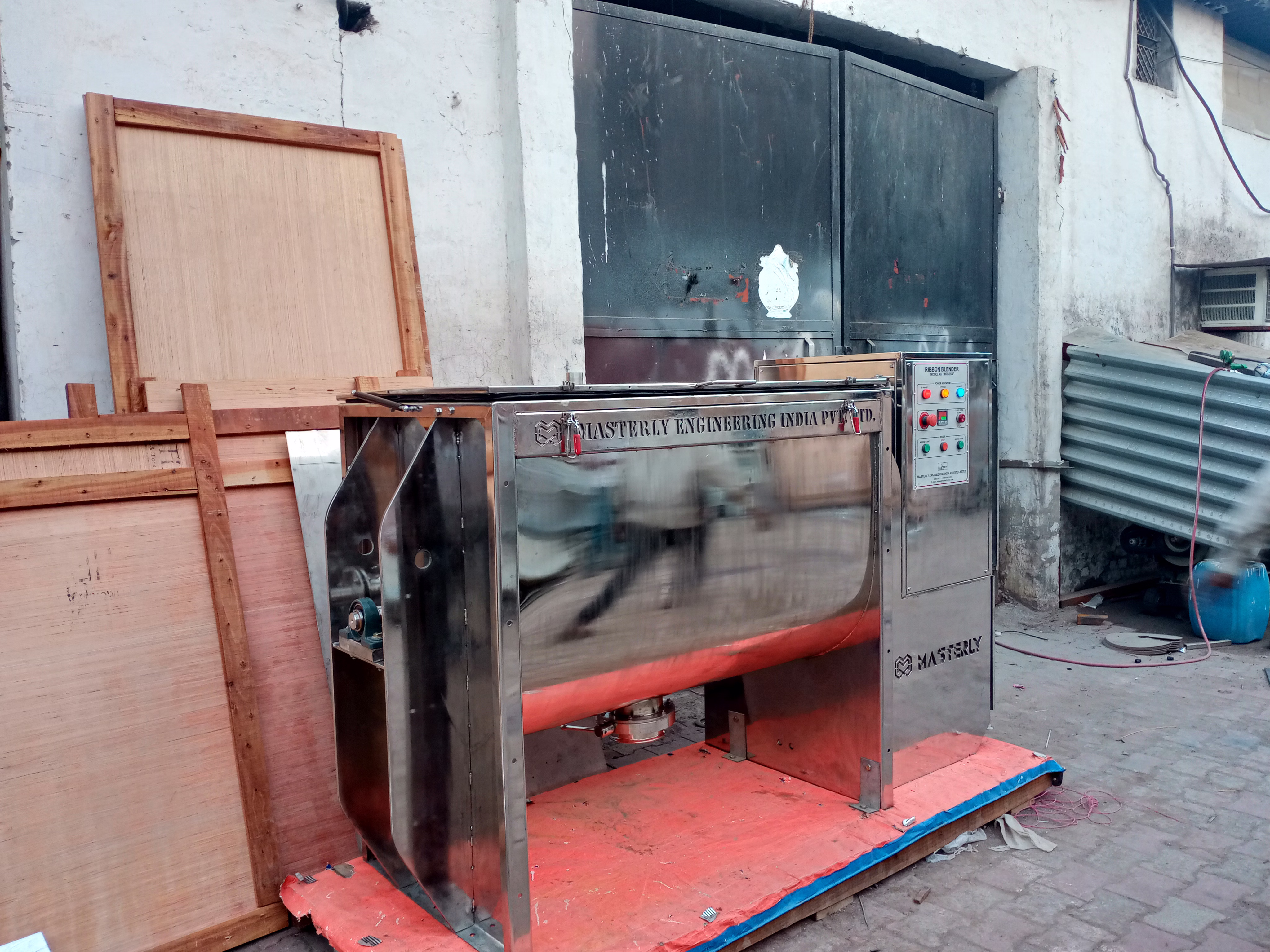

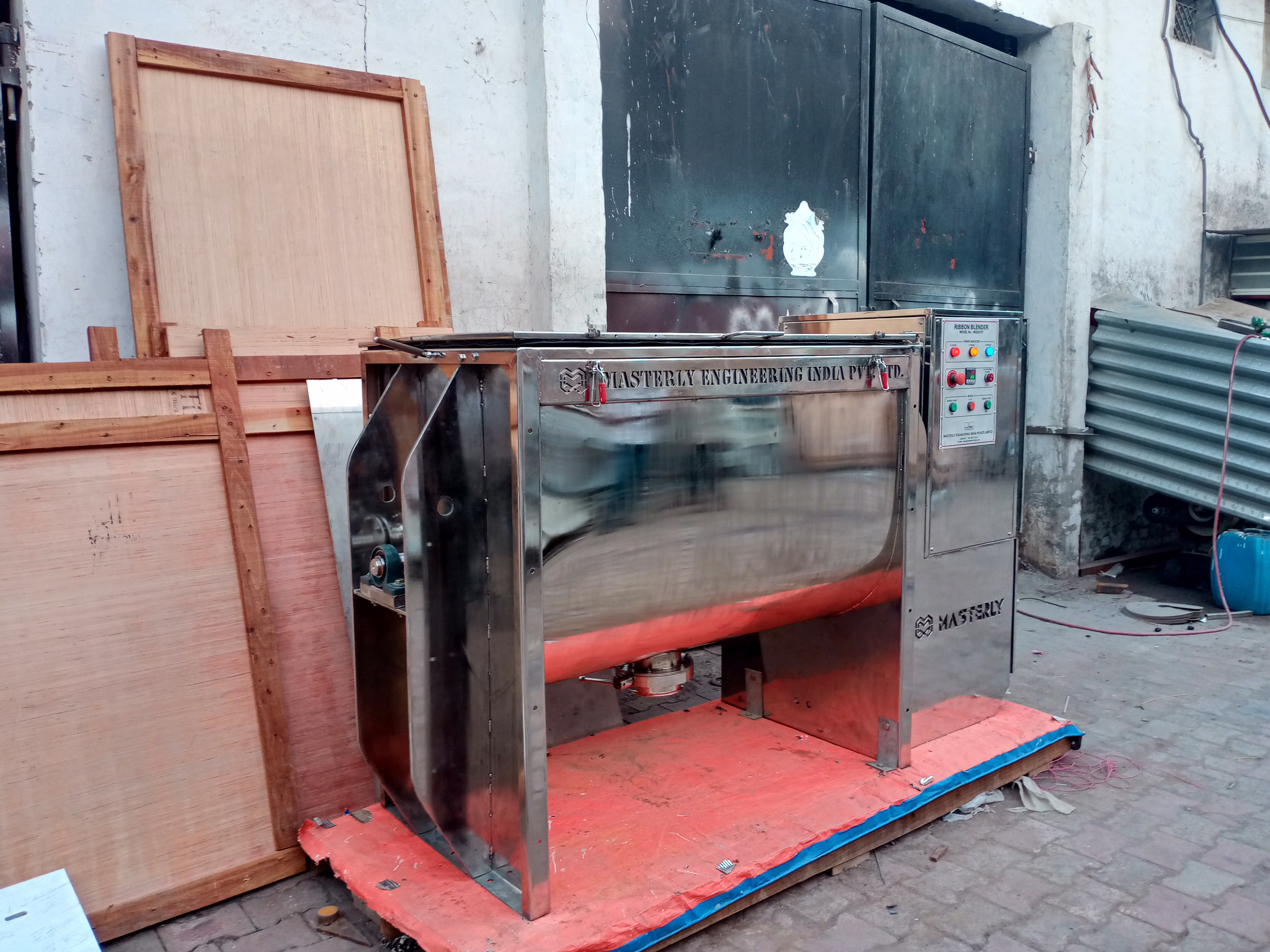

The 500 Liter Ribbon Blender Mixer is an industrial-grade mixing machine specifically designed for efficient and uniform blending of dry powders, granules, and light paste materials. Equipped with precisely engineered helical ribbon blades mounted on a horizontal shaft inside a robust U-shaped trough, this mixer ensures thorough mixing by moving materials in opposite directions simultaneously. Its close clearance design between the ribbons and trough walls guarantees consistent blend quality throughout the 500-liter batch volume. This mixer is ideal for industries such as pharmaceuticals, food processing, chemicals, plastics, and cosmetics, where precise, homogeneous mixtures are critical. It supports optional features such as discharge valves, safety covers, and liquid injection systems for coating applications, making it a versatile solution for complex mixing requirements.
Key Features
| Features | Description |
|---|---|
| Batch Capacity | 500 Liters |
| Mixing Mechanism | Helical ribbon agitators on a horizontal shaft |
| Trough Design | U-shaped for optimum material flow |
| Material Movement | Outer ribbon moves material forward, inner ribbon moves material backward |
| Mixing Efficiency | Close clearance between ribbons and trough walls for uniform blending |
| Suitable Materials | Dry powders, granules, small quantity liquid coated powders |
| Optional Features | Discharge valve, safety covers, liquid injection spray system |
| Industries Served | Pharmaceutical, food, chemical, cosmetic, plastic |
| Attributes | Description |
|---|---|
| Batch Size | 500 Liters |
| Blade Design | Helical ribbons (inner and outer) |
| Motor Power | Typically 5-15 HP (depending on model and material) |
| Construction Material | Stainless Steel (SS304/SS316 option) |
| Operational Speed | 20-40 RPM (adjustable) |
| Discharge Type | Bottom discharge valve, pneumatically or manually operated |
| Safety Features | Protective cover, emergency stop, overload protection |
| Liquid Injection | Optional spray nozzles for coating liquids |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the mixer is specifically designed to blend dry powders and granules uniformly by the opposing motion of its inner and outer helical ribbons, making it suitable for simultaneous mixing.
Yes, optional liquid injection spray nozzles can be integrated to spray oils, binders, or flavors onto powders for coating applications during the mixing process.
Standard safety features include a protective cover to prevent contamination and contact with moving parts, emergency stop functionality, and overload protection for motor safety.
The mixer is constructed from stainless steel, typically SS304 or optionally SS316, ensuring compliance with hygiene and corrosion resistance requirements for pharmaceutical and food-grade applications.
Yes, the operational speed is variable typically between 20 to 40 RPM, allowing optimization of mixing intensity depending on material type and process requirements.
Country Of Origin: India
A Ribbon Blender is a type of industrial mixing machine used for blending dry powders, granules, and sometimes pastes in industries like pharmaceuticals, food processing, chemicals, plastics, and cosmetics.
It gets its name from the ribbon-shaped blades mounted on a horizontal shaft inside a U-shaped trough. These ribbons are specially designed to move material in opposite directions simultaneously – the outer ribbon pushes the material in one direction, while the inner ribbon moves it in the opposite direction.
The use of a Ribbon Blender is mainly for uniform mixing of powders, granules, and bulk solids in various industries. It is one of the most common and efficient blenders for dry material processing.
🔹 Main Uses of Ribbon Blender
Powder Mixing
Blends dry powders evenly (e.g., flour, starch, spices, pharmaceutical powders).
Granules Mixing
Used for combining granules with powders (e.g., tablet granulation in pharma).
Coating & Mixing with Small Liquids
Can spray small amounts of liquid (like oils, flavor, binder) onto powders during mixing.
Premix Preparation
Prepares base mixes (e.g., food premixes, detergent powders, nutraceuticals).
Batch Mixing for Uniformity
Provides consistent blending in batch sizes, ensuring product quality.
🔹 Industry-wise Uses
Pharmaceutical Industry – blending drug powders, granules before tableting.
Food Industry – mixing flour, spices, premixes, flavor powders.
Chemical Industry – detergents, pesticides, fertilizers, pigments.
Cosmetics Industry – face powders, talcum, herbal powders.
Plastic Industry – blending polymer powders, additives, masterbatches.
