Single Head Beater 44’’X42’’ Machine – 200 Kg,

Specification:

* 1.6Ton to 2 Ton Capacity per day

* Beater head size 44” dia X 42” breadth head size Main shaft 6” dia

12’6” L shaft metal EN8 Grade.

* Main shaft (1) 6” bearing size 5”

* Blade size 8mm thick x 150mm breadth x 1067mm length – 96 Nos.

* Roater 3CI castiron flange with slotted, locking blade and locking wood, Face and outer dia machining head -1No.

* Suitable countershaft and motor bed assembly -1 no.

* V pully 60” X 5” SPC sec -1 No.

* 40” X 05” SPC -1 No, 30” X 5” SPC -9” X 5” SPC -1 No.

* Suitable bearing and block sleeves and accessories

* Base bed Box -1 no, Knife bed Box -1 no, Safety cover -1 no.

* Discharge mouth -1 set, Lift Hook -1 no.

* Lifting system (Screw Rod) worm and worm wheel System Type -1 Set

* The flanges are Cast Iron, the Main Shaft EN8, Blades are mild Steel.

* The Beater Legs Bearing Box and base frame are mild steel

Additional Accessories:

* Extra Knife bed Box -1 nos.

 Paper Moulde and Board Moulde Machine Approximate 77 ½” Height X 52 ½” Breath X 84” Length.

 Cutting Drum Size - 20” Dia X 44” Length, Bearing Size 2 ½” -2 set, Total Length 60” – 1 No (Double slotted).

 Baby Rolls- 3” Dia X 44” Length, Bearing Size 1 ½” (1 ½” X 3” X 44”) Total Length 60”-6 No’s + 1 No’s Spare.

 3.54 Gear Box (election)-1 No, it suitable motor and gearbox bed.

 Rubber Roll (Press Roll) -45-50hrc 10” Dia X 44” Length Bearing Size.

 2 ½” (2 ½” X 9 ½” X 44”) Total Length 60”-1 No.

 Conveyor Belt Adjustment And Tightening Setup By Screw Rod System

 The cutting drum is made up of MS.

 The Frames are Made Of 6” X 3” Channel.

 Running Mesh + Spare Mesh 1No’s.

 Machine Body Fabricate by 1” MS Plate.

 Capacity 1000 kg per hour.

 Size 24” X 27 ½” dia head size, Suitable heavy play wheel - 2 Nos.

 Running blade - 6 Nos and Bed blade – 3 Nos.

 Main soft 5½” dia, bearing size 5” dia.

 Machine body 1” plate fabrication, Feeding Tray type, Output Delivery Conveyor Type

MODEL: Single Head Beater 36’’X30’’ Machine – 100 Kg

Specification:

Beater head size 36” dia X 30” breadth head size Main shaft 5.5” dia

10ft Length shaft metal EN8 Grade.

Bearing and pully size 4”

Blade size 8mm thick x 5 ½” breadth x 29 ½” mm length – 72 Nos.

Roater 3 CI castiron flanges with slotted, locking blade and locking

Wood, face and outer dia machining head -1No.

V pully 36” X 4” SPC sec -1 No. 6”x4 SPC

Suitable bearing and block sleeves and accessories

Base bed Box -1 no, Knife bed Box -1 no, Safety cover -1 no.

Discharge mouth -1 set, Lift Hook -1 no.

Lifting system (Screw Rod) worm and worm wheel System Type -1 Set

The flanges are Cast Iron, the Main Shaft EN8, and the Blades are mild Steel.

Beater Legs, Bearing Bar, and Base frame are mild steel

RAG CHOPPER - 42” x 48” Crunch Machine :

• 1 MACHINE Capacity 4000-5000 kg per hour

• Size 42” 48” Dia head size running blade 12 No’s, bed blade 3No’s

• Main soft 6 1⁄2” Dia 1 NO’S, Bearing size 6”dia 1 NO’S

• It is suitable for heavy flywheel 2No’s

• Machine body 1 1/4”with plate fabricating

• Discharge conveyor type

• Feeding conveyor movable type with motorized gearbox type

• A 100 HP 1500 RPM motor runs the machine's Main HEAD.

• Spare Blades 1 MACHINES – Sets(15 No’s)

• 25mm Dia Hole Mesh-1 set

• Main Shaft With EN8 GRADE (UV Test report)

• Fly Wheels, Pulleys or Cast Iron (30 Grade)

• Steel Bearing Block(6”)

• Machine Body MS Plate(UV Tested)

• Delivery conveyor approximate height 15 feet

44 “Dia x 42” Length

Capacity 4Ton per day

One Batch 800 kg 3½ hrs approximately 6 batches per day

Blade Size 5/16”x6”x42” 96 No.

Main Shaft 6½“Dia, 12 Feet Length (EN8), 5” Bearing and 4½” Pulley Size

Blanches are Cast iron

Suitable Stand with M.S. Fabrication

Lifting Worm & Worm Wheel System, Base Frame,

Safety Wooden Cover, Beater Bed Box with Knife Box

‘V’ Pulley size 5c sec/60”dia or Flats Pulley

Reduction ‘V’ Pulley Size 12”x 40” 8 ‘C’ Section -2 set

30” X10" C section- 2 set

Counter Shaft set and 4” Dia Bearing Black 2 Set

One motor run by two Rotor

Machine run by 100 HP 960 RPM Motor - 2no

One complete machine value without motor (USD 12,750)

Two complete machine values without motor 12,750 x 2 No = 25,500

NOTE: Feeding and lifting automatic motorized method

4 Bed knife box including

Specification:

Including 2 HP motor (3000 rpm) with Trolley Bed, Bed size 3Feet/21”

The frame is made by 2”x2.5” Square Pipe

Knife holder Adjustment type front and back

Motor bed up and down Moving by screw type

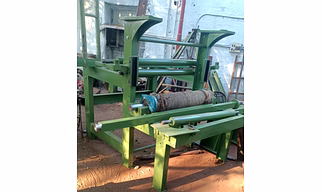

CYLINDER MOULD

• Main mould (40’’OD X 48’’Breadth) drum.

• It’s suitable 6 no’s arrow wheels and 2 no’ side wheel. Centre fixing with 3’’ main shaft.7 ft length with suitable stand bearing blocks and sleeves. Rubber roll 10’’ dia 48’’ Length 2½’’ bearing size 66’’ length.

Tension roll

• 8 no’s

• Cutting drum-20’’ dia *48’’ length

Others

• Belt adjustment screw rod set-4 Sets

• Rollers are mounting with frame

• Frame fabricated by-6’’ * 3’’ channel.(58’’ breadth *68’’ Height) 120’’length.

 Machine working table size 44x44x44”.

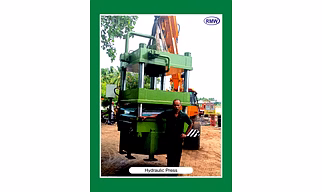

 The Pressing Load Capacity is 80 tons.

 Motor 10 HP with Hydraulic Pump.

 Suitable Steel Fabrication body.

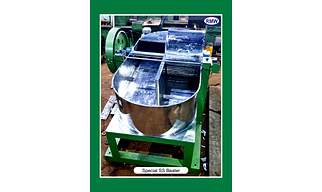

Model: 21” X24” SS Beater Machine (1 Complete Machine)

• Beater Roater 21”Bx24” Dia,

• Main shaft 3” Dia 90”x60”

• No of Blades 48.

• Roater up and down Auto Feeding Motorized Gear Box type.

• The machine is suitable for all equipment

• Roater Tank 5mm SS304 Grade Sheet.

• Roater with 8mm Plate and Suitable (80 mm) Main Shaft, 3” Dia Bearing and Pulley Size.

• Base Bed Knife Box – 1no Including

Note:

• Bearing Bar and Long Leg, Short Leg Base Frame are in MS.

• Roater and Roater Main Shaft, Blades, and flanges are in SS304 Grade.

• Complete 1 Full set of machines. (Excluding Of Erection and Electrical Work)

Specification:

• 400Kg Per Batch (Each Batch=3hrs) Per Day=8 Batch, [8x400kg=3200Kg Per day].

• Beater head size 44”dia X 42” breadth 44*42.

• Main shaft (1) 6” bearing size 5” shaft length 12.6” – 1 No.

• Main shaft (2) 6” bearing size 5” shaft length 12.3” – 1 No.

• Suitable countershaft and motor bed assembly -1 No.

• 40” X 07” SPC, 9”x7” SPC. - 60” play wheel -1 No.

• 20” X 10” SPC - pully wheel 60”x5” -2 no.

• 44” X 42” Beater head – 2 Nos, Safety cover– 2 Nos.

• Suitable bearing and block sleeves and accessories.

• Base bed box – 2 Nos, Knife bed box - 2 Nos.

• Discharge Mouth -2No with Lifting Rod

• Flanges are Cast Iron, Main Shaft EN8, Blades are in mild Steel.

• Beater Legs and Bearing Box, Base frame are mild steels

 Size 24”X27 ½”Dia head size, running blade 6 no,

bed blade 3no

 Main soft 5 ½” Dia, Bearing size 5”dia

 It suitable heavy fly wheel 2 Nos

 Machine body 1”with plate fabricating

 Discharge conveyor type with 1HP 1500 RPM motor

 Feeding conveyor movable type with 2HP motorized

gearbox type

 Gear box equipment’s

 The machine run by 50 HP 1500 RPM motor (50 Hp

motor not in our scope)

 Spare Blades – 1 Sets(9 No’s)
