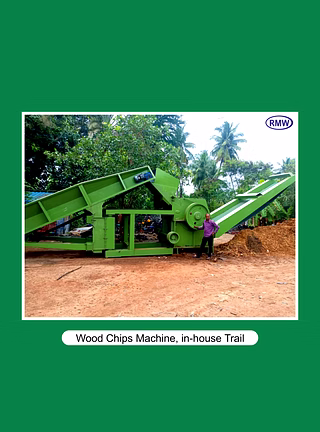

Wood Chipper Machine 42"x44"

Brand: ramson

Inclusive of all taxes

The Wood Chipper Machine 42"x44" by RAG CHOPPER is an industrial-grade crunch machine designed for high-capacity wood chipping and shredding tasks. It features a robust 42” diameter head with 12 running blades and 3 bed blades, enabling efficient processing of large volumes of wood and other fibrous materials. The machine handles a capacity of 4000-5000 kg per hour, ideal for demanding wood processing units and biomass industries. Constructed with a 1 1/4” thick MS plate body, the machine ensures durability and stability during operation. It incorporates heavy-duty flywheels and a sizable 100 HP 1500 RPM motor to power the main head, providing consistent and powerful performance. The feeding conveyor is motorized and movable for flexible operation, while the discharge conveyor elevates processed materials approximately 15 feet for convenient collection. Additional features include a main shaft made of high-quality EN8 grade steel supported by UV-tested bearings, cast iron flywheels and pulleys (30 grade), and spare blade sets (15 pieces) to maintain operational efficiency. The entire construction is verified through UV testing to ensure material integrity and long service life. This wood chipper machine is perfect for businesses specializing in wood chip production, biomass fuel processing, and agricultural waste management, offering reliable and large-scale wood size reduction solutions.

Key Features

Features Description
Capacity per Hour 4000-5000 kg
Head Diameter 42” x 48”
Running Blades 12 No’s
Bed Blades 3 No’s
Main Shaft Material EN8 Grade Steel with UV Test Report
Main Motor 100 HP, 1500 RPM
Machine Body 1 1/4” thick MS Plate, UV Tested
Flywheels 2 Heavy Duty, Cast Iron (30 Grade)
Feeding Conveyor Movable, Motorized Gearbox Type
Discharge Conveyor Approximate Height 15 feet
Spare Blades Set 15 Blades
Bearing Size 6” Diameter Steel Bearing Block
Attributes Description
Machine Type Wood Chipper / Crunch Machine
Dimensions 42" x 44"
Blade Type Running and Bed Blades
Blade Count 12 Running Blades, 3 Bed Blades
Material Grade for Shaft EN8 Grade Steel
Motor Power 100 HP
Motor Speed 1500 RPM
Machine Body Material Mild Steel Plate, 1 1/4 inch thick
Flywheel Material Cast Iron, 30 Grade
Feeding Conveyor Movable Type with Motorized Gearbox
Discharge Conveyor Height Approx. 15 Feet
Spare Blades Included Yes, 15 Blades per Set
Bearing Size 6 inch diameter
Hole Mesh Diameter 25mm
Intended Application Heavy-duty wood chipping and biomass processing

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

The machine can process between 4000 to 5000 kilograms of wood material per hour, making it suitable for heavy industrial use.

The machine features 12 running blades and 3 bed blades, crafted for efficient and consistent wood chipping.

The feeding conveyor is movable and equipped with a motorized gearbox for flexible operation.

A 100 HP motor operating at 1500 RPM powers the main head of the wood chipper.

The main shaft is made of high-grade EN8 steel with UV test certification, and the machine body is fabricated from 1 1/4 inch thick mild steel plates, also UV tested.

Yes, the package includes one set of 15 spare blades to ensure continuous operation without downtime.

The discharge conveyor elevates the chipped material to approximately 15 feet for efficient collection or transfer.

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: ramson

Country Of Origin: India

RAG CHOPPER - 42” x 48” Crunch Machine :


• 1 MACHINE Capacity 4000-5000 kg per hour

• Size 42” 48” Dia head size running blade 12 No’s, bed blade 3No’s

• Main soft 6 1⁄2” Dia 1 NO’S, Bearing size 6”dia 1 NO’S

• It is suitable for heavy flywheel 2No’s

• Machine body 1 1/4”with plate fabricating

• Discharge conveyor type

• Feeding conveyor movable type with motorized gearbox type

• A 100 HP 1500 RPM motor runs the machine's Main HEAD.

• Spare Blades 1 MACHINES – Sets(15 No’s)

• 25mm Dia Hole Mesh-1 set

• Main Shaft With EN8 GRADE (UV Test report)

• Fly Wheels, Pulleys or Cast Iron (30 Grade)

• Steel Bearing Block(6”)

• Machine Body MS Plate(UV Tested)

• Delivery conveyor approximate height 15 feet
