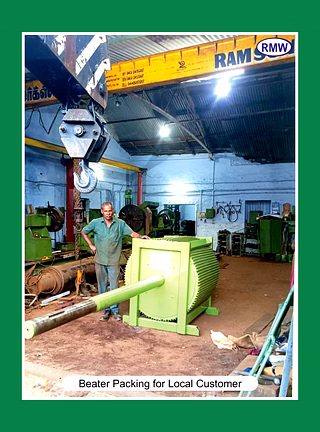

The Single Head Beater 30"X36" - 100 kg model is a heavy-duty industrial machine designed for high-capacity beating applications, ideal for businesses requiring robust and efficient stirring or mixing solutions. This machine features a large beater head of 36 inches diameter and 30 inches breadth, driven by a sturdy 5.5-inch diameter main shaft made from high-grade EN8 metal, extending 10 feet in length, ensuring durability and longevity. Equipped with 72 blades, each sized 8mm thick by 5 ½ inches breadth and 29 ½ mm length, the beater delivers powerful performance. The rotor is constructed with 3 cast iron flanges that are slotted and equipped with locking blades to maintain precise operation. The system includes a 36” X 4” V-pulley and an additional 6” x 4” SPC pulley, supported by 4-inch bearings and pulley size components for smooth and reliable motion. The beater assembly integrates mild steel beater legs, bearing bars, and base frames for structural integrity, coupled with essential components like safety covers, discharge mouth, lift hook, and a screw rod lifting system featuring a worm and worm wheel setup for controlled beater height adjustment. This comprehensive setup is tailored for industrial-scale processing, offering efficiency, stability, and ease of maintenance, making it suitable for manufacturing plants, food processing units, and related industrial applications.
Key Features
| Features | Description |
|---|---|
| Beater Head Size | 36 inches diameter x 30 inches breadth |
| Main Shaft | 5.5 inches diameter, 10 feet length, EN8 grade metal |
| Number of Blades | 72 blades |
| Blade Dimensions | 8mm thickness x 5 ½ inches breadth x 29 ½ mm length |
| Rotor Flanges | 3 cast iron (CI) flanges with slotted locking blades |
| V-Pulley Sizes | 36” x 4” SPC section and 6” x 4” SPC pulley |
| Bearing and Pulley Size | 4 inches |
| Material Construction | Main shaft EN8 metal; blades mild steel; flanges cast iron; frame mild steel |
| Safety and Accessories | Safety cover, discharge mouth, lift hook included |
| Lifting System | Screw rod worm and worm wheel system for height adjustment |
| Attributes | Description |
|---|---|
| Model | Single Head Beater 36”X30” |
| Capacity | 100 kg |
| Main Shaft Material | EN8 grade metal |
| Beater Head Material | Cast Iron and Mild Steel |
| Blade Material | Mild Steel |
| Rotor Flanges Material | Cast Iron |
| Pulley Material | SPC (Steel Profile Channel) |
| Bearing Diameter | 4 inches |
| Lifting Mechanism Type | Screw rod worm and worm wheel system |
| Safety Features | Safety cover and discharge mouth included |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The main shaft is made from high-grade EN8 metal ensuring strength and durability, while the blades are manufactured from mild steel for effective beating performance.
This beater includes 72 blades each measuring 8mm thickness, 5 ½ inches breadth, and 29 ½ mm length, providing comprehensive coverage for efficient mixing.
The beater features a screw rod lifting system with a worm and worm wheel mechanism, allowing precise and stable height adjustments.
Yes, the machine comes equipped with a safety cover, discharge mouth, and lift hook to ensure operator safety during use.
The machine uses 4-inch diameter bearings and pulley sizes, ensuring smooth and reliable rotation of the beater head.
Brand: ramson
Country Of Origin: India
MODEL: Single Head Beater 36’’X30’’ Machine – 100 Kg
Specification:
Beater head size 36” dia X 30” breadth head size Main shaft 5.5” dia
10ft Length shaft metal EN8 Grade.
Bearing and pully size 4”
Blade size 8mm thick x 5 ½” breadth x 29 ½” mm length – 72 Nos.
Roater 3 CI castiron flanges with slotted, locking blade and locking
Wood, face and outer dia machining head -1No.
V pully 36” X 4” SPC sec -1 No. 6”x4 SPC
Suitable bearing and block sleeves and accessories
Base bed Box -1 no, Knife bed Box -1 no, Safety cover -1 no.
Discharge mouth -1 set, Lift Hook -1 no.
Lifting system (Screw Rod) worm and worm wheel System Type -1 Set
The flanges are Cast Iron, the Main Shaft EN8, and the Blades are mild Steel.
Beater Legs, Bearing Bar, and Base frame are mild steel
