The Cylinder Mold is a precision-engineered paper and board molding machine designed to streamline the production of molded fiber products. With overall dimensions approximately 77 ½” in height, 52 ½” in breadth, and 84” in length, it offers a large operational footprint suited for industrial-scale manufacturing. Central to its functionality is the cutting drum, measuring 20” in diameter and 44” in length, fabricated from robust mild steel (MS) and equipped with two heavy-duty 2 ½” bearings to ensure smooth, continuous rotation. The machine incorporates six baby rolls with 3” diameter and 44” length, each fitted with 1 ½” bearings, plus an additional spare roll to minimize downtime. A 3.54 gearbox (electrically driven) complements the system, mounted on a custom gearbox bed to ensure optimal power transmission and system stability. The press roll utilizes a durable rubber roll with a hardness rating of 45-50 HRC, measuring 10” in diameter and 44” in length, supported by a 2 ½” bearing, ensuring consistent pressure application during molding. User-friendly conveyor belt adjustment and tightening is facilitated via a screw rod system, enhancing operational control and maintenance ease. The structural frame is constructed from sturdy 6” x 3” channel steel, providing durability and stability necessary for industrial environments. Additionally, the machine comes with a running mesh and a spare mesh to ensure continuous production without interruptions. This Cylinder Mold machine is perfectly suited for papermaking industries looking to improve output quality and efficiency in molded paper and board manufacturing.
Key Features
| Features | Description |
|---|---|
| Overall Dimensions (HxBxL) | 77 ½” Height x 52 ½” Breadth x 84” Length |
| Cutting Drum Size | 20” Diameter x 44” Length, MS construction |
| Cutting Drum Bearings | 2 x 2 ½” bearings |
| Baby Rolls Size | 3” Diameter x 44” Length |
| Baby Rolls Bearings | 1 ½” bearings (6 rolls + 1 spare) |
| Gearbox | 3.54 ratio, electrically driven, 1 No with suitable motor and gearbox bed |
| Press Roll (Rubber Roll) | 10” Diameter x 44” Length, 45-50 HRC hardness |
| Press Roll Bearing | 2 ½” bearing |
| Conveyor Belt Adjustment | Screw rod system for easy tightening and adjustment |
| Frame Material | 6” x 3” channel steel |
| Additional Components | Running mesh and spare mesh (1 No each) |
| Attributes | Description |
|---|---|
| Machine Type | Paper Mould and Board Mould Machine |
| Material of Cutting Drum | Mild Steel (MS) |
| Number of Baby Rolls | 6 + 1 spare |
| Baby Rolls Bearing Size | 1 ½” x 3” x 44” |
| Gearbox Ratio | 3.54 |
| Operating Power | Requires suitable motor for gearbox |
| Press Roll Hardness | 45-50 HRC |
| Conveyor Belt System | Adjustment and tightening via screw rod system |
| Frame Dimensions | 6” x 3” Channel steel construction |
| Meshes Provided | 1 running mesh + 1 spare mesh |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The cutting drum measures 20” diameter and 44” length, made of mild steel (MS) for its strength and durability, ensuring long-term operational stability and resistance to wear during the cutting process.
The screw rod system allows precise adjustment and tightening of the conveyor belt without using additional tools, facilitating quick maintenance and minimizing machine downtime.
The hardness rating of 45-50 HRC for the rubber press roll ensures optimal pressure and durability during the molding process, maintaining consistent quality of the molded paper products.
The machine includes six baby rolls, each 3” diameter by 44” length, equipped with 1 ½” bearings along with one additional spare roll to ensure uninterrupted production.
Yes, the machine is designed with a 3.54 ratio gearbox and a suitable motor bed, allowing compatibility with various electrical motors tailored to production requirements.
Brand: ramson
Country Of Origin: India

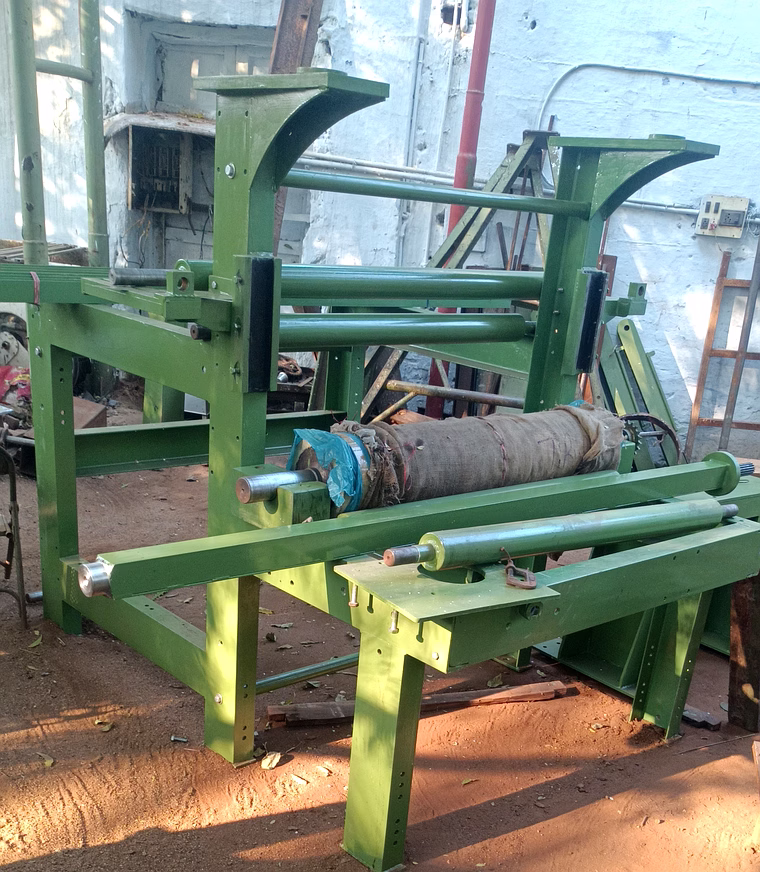

Paper Moulde and Board Moulde Machine Approximate 77 ½” Height X 52 ½” Breath X 84” Length.
Cutting Drum Size - 20” Dia X 44” Length, Bearing Size 2 ½” -2 set, Total Length 60” – 1 No (Double slotted).
Baby Rolls- 3” Dia X 44” Length, Bearing Size 1 ½” (1 ½” X 3” X 44”) Total Length 60”-6 No’s + 1 No’s Spare.
3.54 Gear Box (election)-1 No, it suitable motor and gearbox bed.
Rubber Roll (Press Roll) -45-50hrc 10” Dia X 44” Length Bearing Size.
2 ½” (2 ½” X 9 ½” X 44”) Total Length 60”-1 No.
Conveyor Belt Adjustment And Tightening Setup By Screw Rod System
The cutting drum is made up of MS.
The Frames are Made Of 6” X 3” Channel.
Running Mesh + Spare Mesh 1No’s.
