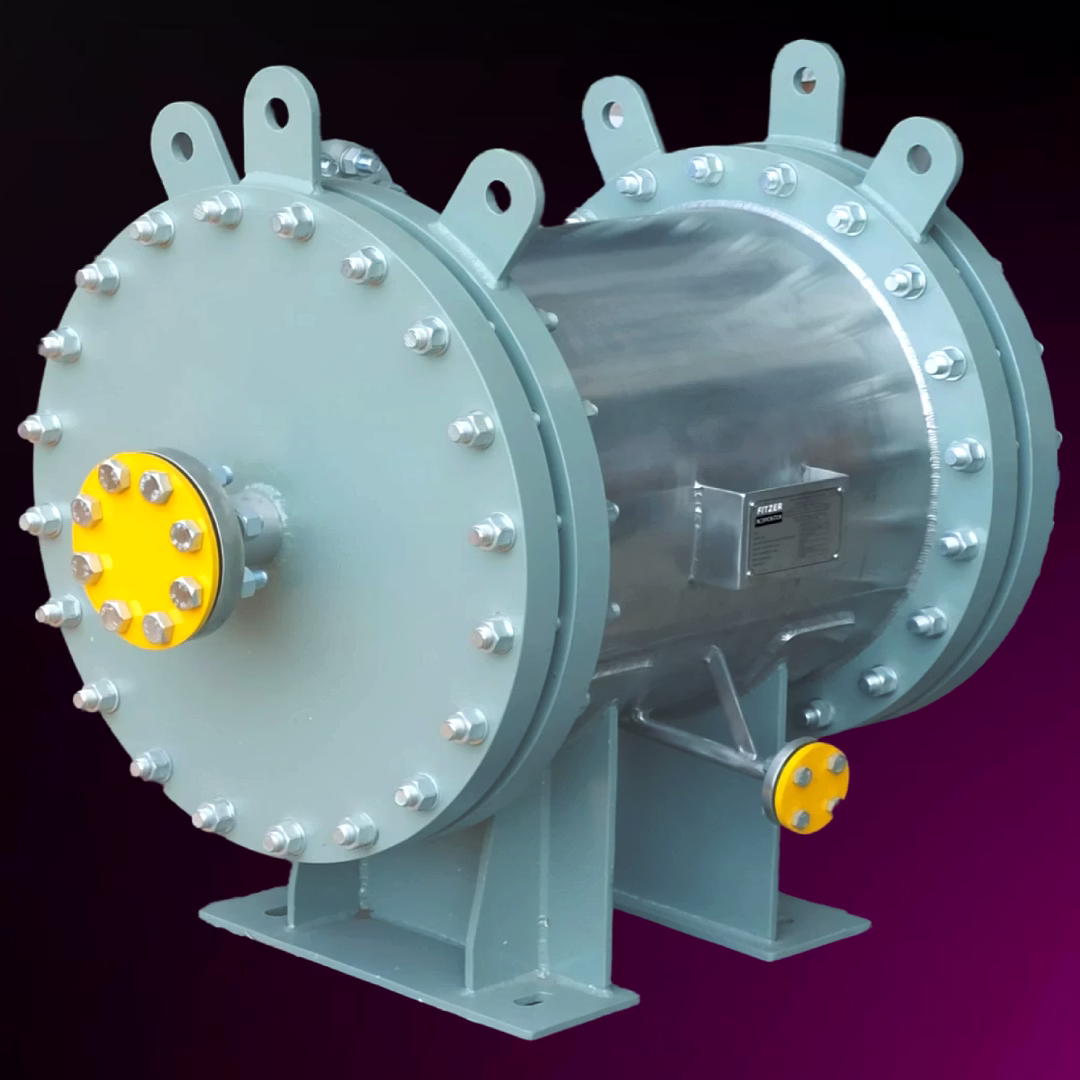

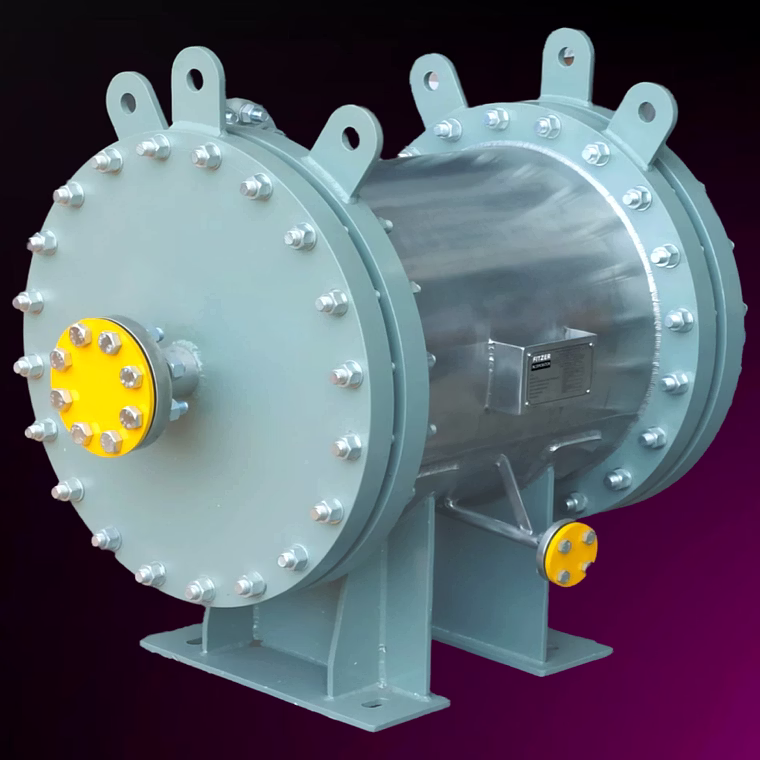

The Spiral Plate Heat Exchanger by FITZER is designed for optimal thermal efficiency and reliability, making it the ideal solution for various industrial applications. Constructed from two long metal plates rolled into a concentric spiral, this heat exchanger effectively separates fluids to enhance heat transfer without the risk of mixing. Its self-cleaning passages ensure continuous high performance while the countercurrent or co-current flow options cater to diverse operational needs. The compact footprint allows for easy installation and access, making it suitable for facilities with limited space. Designed in compliance with international standards like ASME and TEMA, this heat exchanger is certified ISO 9001:2008, ensuring adherence to quality control measures. With capabilities to handle a wide range of temperatures from -100°C to 500°C and a maximum working pressure of 45 BAR and above, the FITZER Spiral Plate Heat Exchanger meets the rigorous demands of water, oil, air, and industrial processes. Boasting a lifespan of over 20 years and requiring minimal maintenance, this heat exchanger is an excellent investment for businesses looking to enhance their heat transfer efficiency while maintaining reliability in challenging operating environments.
Key Features
| Features | Description |
|---|---|
| High Thermal Efficiency | Optimal heat transfer with no fluid mixing. |
| Self-Cleaning Passages | Designed to reduce maintenance and interruptions. |
| Compact Footprint | Ideal for installations with limited space. |
| Countercurrent and Co-Current Flow Options | Flexibility in operation tailored to specific needs. |
| Robust Construction | Durable design ensuring longevity and reliability. |
| Attributes | Description |
|---|---|
| Certification | ISO 9001:2008 Certified |
| Grade | ASME, API, TEMA, PED |
| Color | Green, Grey, Industrial Grade Epoxy |
| Automatic Grade | Manual |
| Warranty | 1 Year Manufacturing |
| Medium Used | Water, Slurry Liquid |
| Operating Temperature | -100°C to 500°C |
| Thickness | 2MM to 50MM |
| Diameter | 300MM & Above |
| Maximum Working Pressure | 45 BAR & Above |
| Product Code | FI-SHE-900 |
| Port | Mumbai & Gujarat |
| Delivery Time | 3-4 Weeks |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The heat exchanger is constructed from durable metal plates designed for optimal thermal performance.
It can operate within a temperature range of -100°C to 500°C.
It can process water, oil, air, and slurry liquid.
The expected lifespan is over 20 years with proper maintenance.
The typical delivery time is 3-4 weeks from the date of order.
Brand: fitzer
Country Of Origin: India
Design Features & Benefits

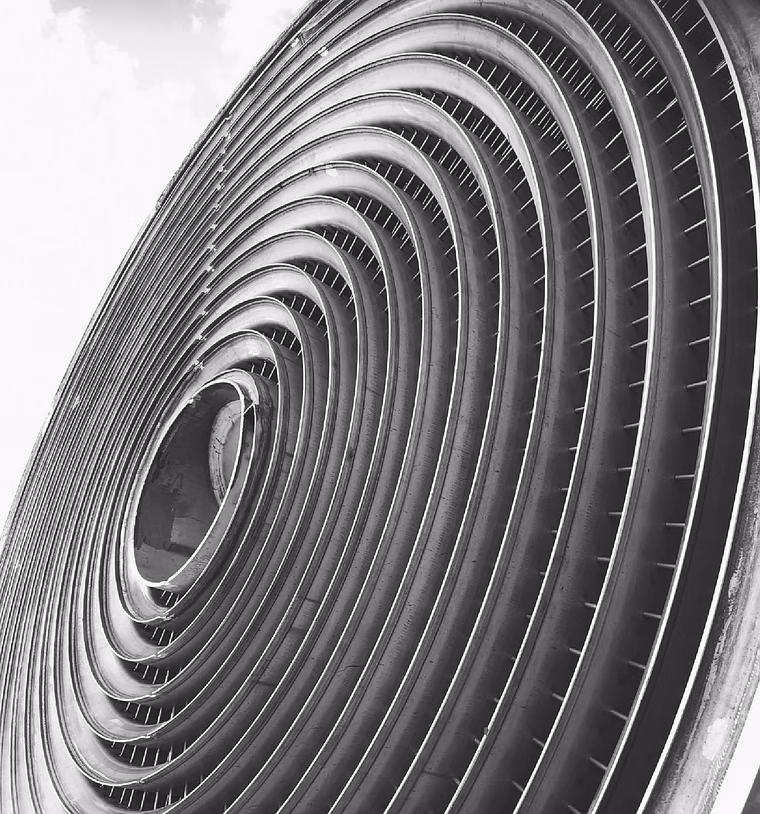

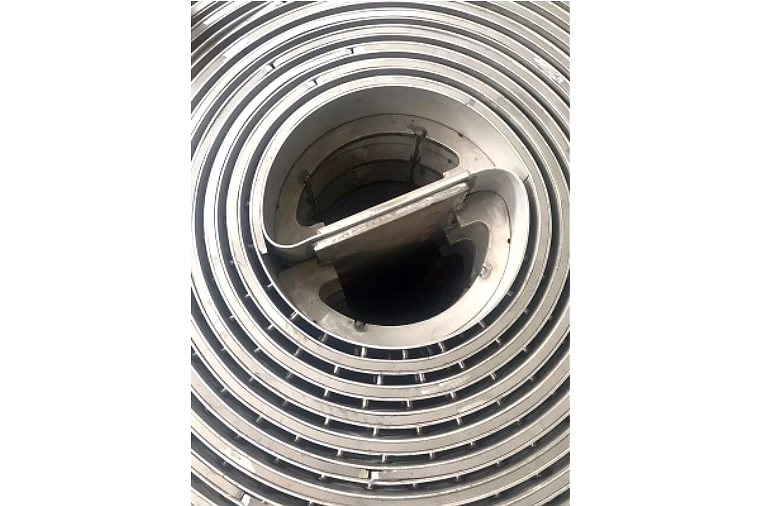

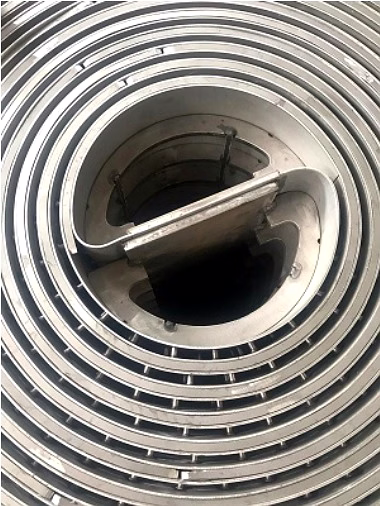

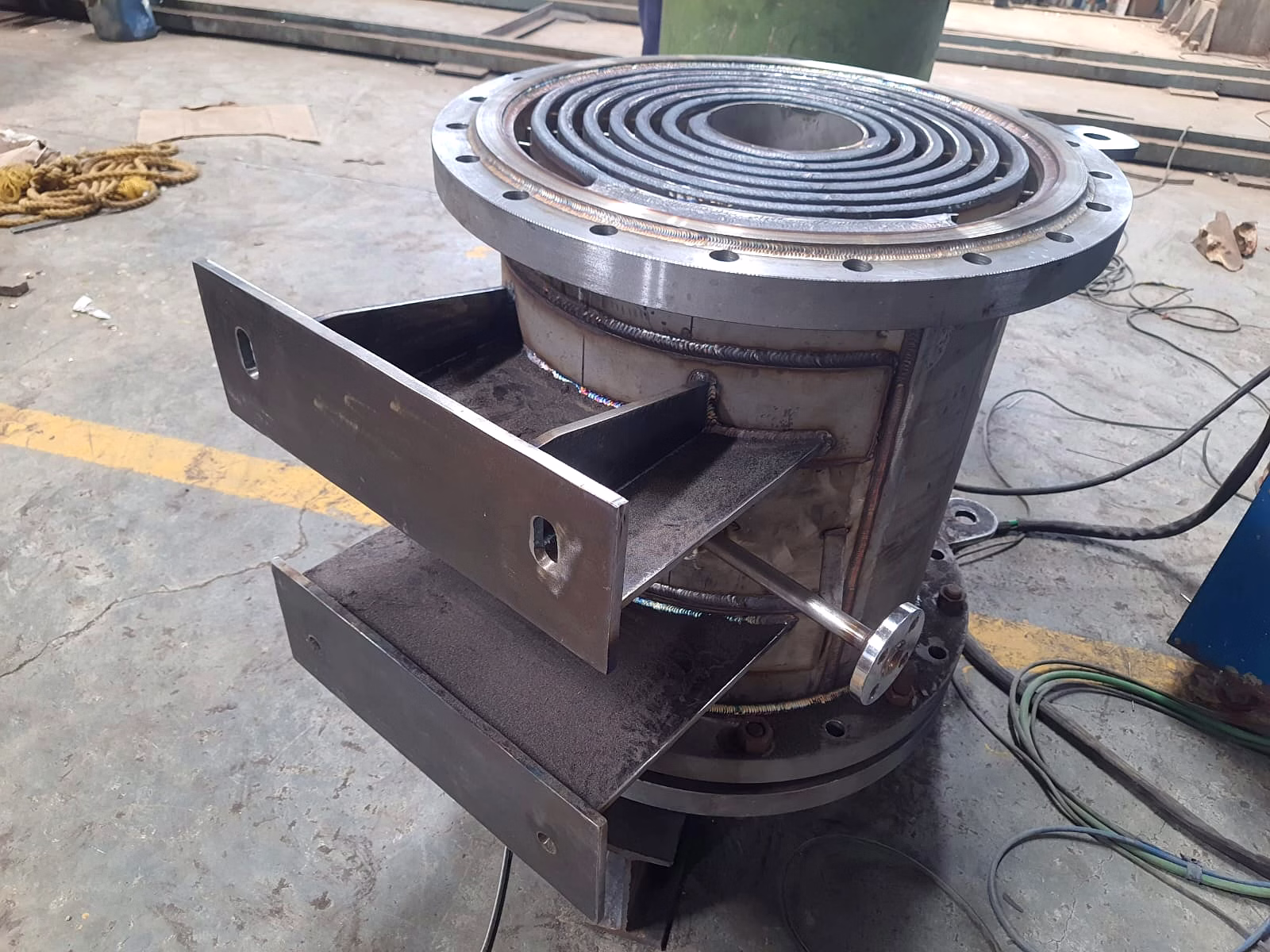

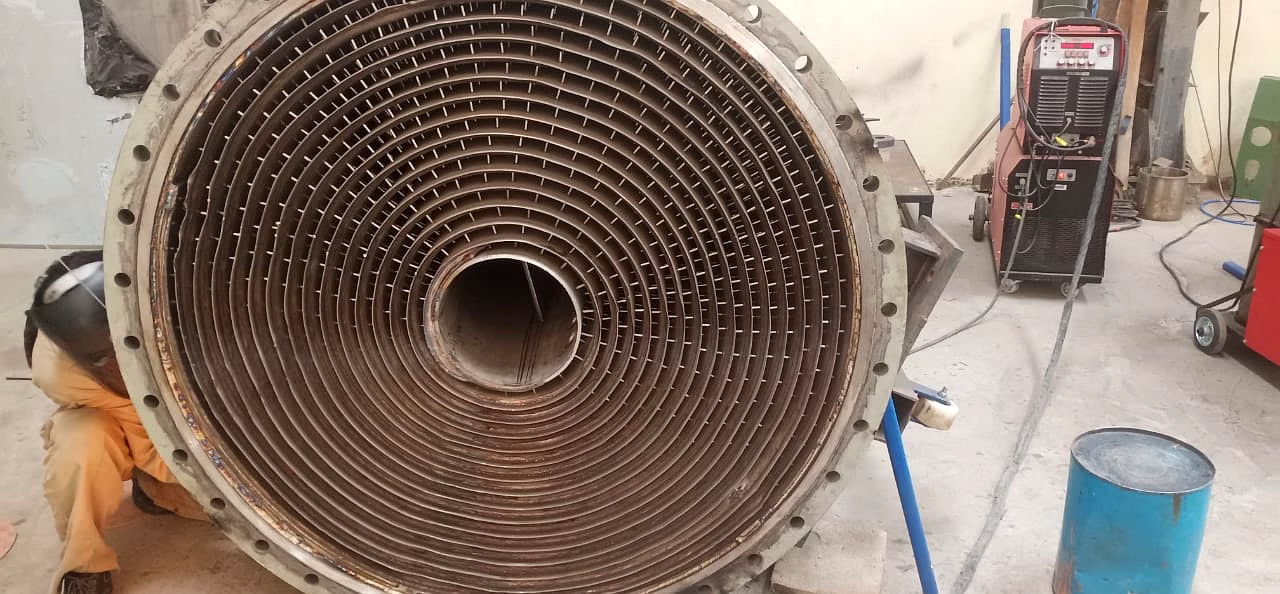

The spiral plate heat exchanger is made by rolling two long metal plates around a center core to form two concentric spiral flow passages, one for each fluid. The plate edges are welded shut so that each fluid stays within its own passage and there is no flow bypassing or intermixing. Channel plate width and spacing (gap between plates) are optimized for the specified duty, maximum heat transfer, and ease of access. The plate gap is maintained by welded spacer studs although some designs do not require them.
Due to its inherent circular design and large surface area to volume ratio, the spiral heat exchanger offers unique advantages over other types of heat exchangers like the shell and tube.
High Thermal Efficiency
Self-Cleaning Passages
Countercurrent or Co-current
Small Footprint & Easy Access
Product Details
Certification ISO 9001:2008 Certified
Grade ASME, API, TEMA, PED
Color GREEN, GREY, INDUSTRIAL GRADE EPOXY
Voltage NOT APPLICABLE
Condition New
Automatic Grade Manual
Power NOT APPLICABLE
Warranty 1 YEAR MANUFACTURING
Driven BY PROCESS
Brand Name FITZER
Shape Cylindrical
Medium used WATER, SLURRY LIQUID
Ratings -100 DEG C TO 500 DEG C
Finishing Coated
Corrosion Resistance Yes
Phase NOT APPLICABLE
Usage Water, Oil, Air, Heat Transfer, Hydraulic And Industrial Process, HIGH THERMAL EFFICIENCY
Weight As Per Designed
Dimension (LxWxH) As Per Designed
Packaging Type Wooden Box
Production Capacity 5 units per month
Speciality Reliable, Robust Construction, Easy To Use, High Efficiency, counter current and co current flow
Size CUSTOMIZED
Operating Temperature -100 DEG C TO 500 DEG C
Hardness METAL
Depth AS PER DESIGN
Thickness 2MM TO 50 MM
Technique counter current and co current flow
Diameter 300 MM & ABOVE
Maximum Working Pressure 45 BAR & ABOVE
Inlet Temperature -100 DEG C AND ABOVE
Flow Rate 5 LPM AND ABOVE
Outlet Temperature AS REQUIRED
International Standard ASME. TEMA, ASHRAE, IBR, ASME-U-STAMP & R -STAMP
Brand FITZER
LIFE SPAN 20 YEARS & MORE
Product Code FI-SHE-900
Port Mumbai & Gujarat
Payment Terms T/T
Delivery Time 3-4 Weeks
Packaging Details WOODEN
