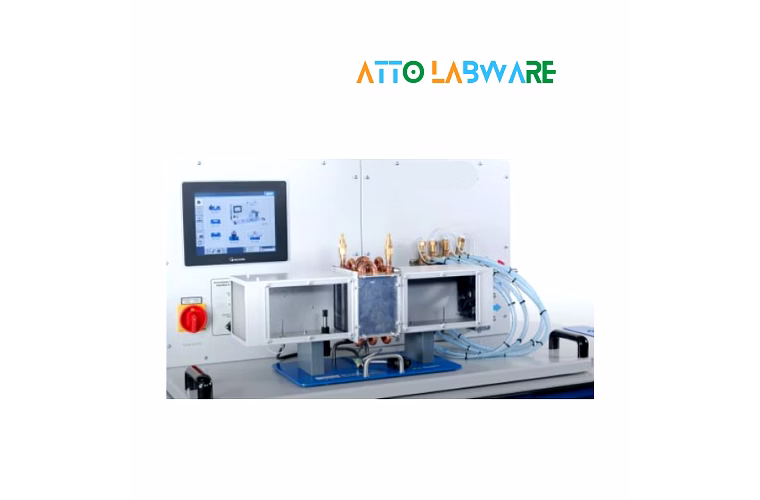

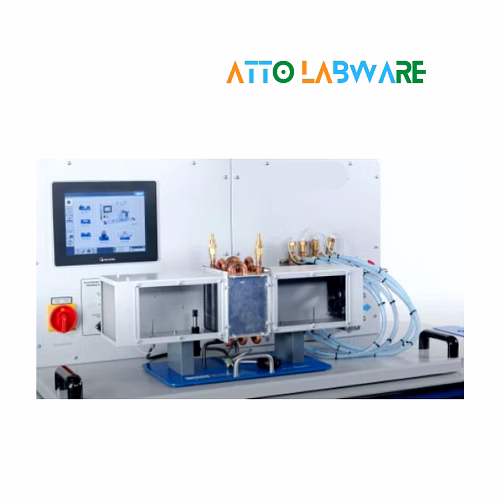

The Atto Labware Finned Tube Heat Exchanger Apparatus is an advanced laboratory device specifically designed to facilitate comprehensive studies and experiments on convective heat transfer processes. This equipment is ideal for educational institutions and industrial research labs seeking precise analysis of heat transfer coefficients, fin efficiency, and overall thermal performance in finned tube designs. Its robust construction and accurate instrumentation allow for detailed observation of how fins influence heat dissipation in various fluid flow conditions. The apparatus enables users to measure temperature differentials, flow rates, and thermal resistances, thereby providing critical insights into optimizing heat exchanger designs for enhanced thermal efficiency in practical applications. With this apparatus, students and professionals can conduct repeatable, quantifiable experiments, making it a valuable tool for both teaching and research in the field of thermal engineering and heat exchanger technology.
Key Features
| Features | Description |
|---|---|
| Purpose | Study of convective heat transfer, fin efficiency, and heat transfer coefficients |
| Design | Finned tube heat exchanger setup with adjustable flow parameters |
| Application | Laboratory experiments and research in thermal engineering |
| Measurement Parameters | Temperature, fluid flow rate, thermal resistance |
| Construction | Durable materials for long-term laboratory use |
| User Interface | Clear measurement displays and easy-to-read instrumentation |
| Educational Use | Ideal for engineering labs focusing on heat transfer studies |
| Data Accuracy | High precision sensors for reliable experimental data |
| Compatibility | Works with various fluids commonly used in heat transfer studies |
| Portability | Compact and stable design suitable for lab environments |
| Attributes | Description |
|---|---|
| Heat Exchanger Type | Finned Tube |
| Heat Transfer Mode | Convective |
| Material | Corrosion-resistant metals and thermally conductive fins |
| Temperature Measurement Range | -10°C to 150°C |
| Flow Rate Range | Adjustable, typically 0 to 10 L/min |
| Dimensions | Approx. 60 cm x 40 cm x 30 cm (L x W x H) |
| Power Supply | 230 V AC / 50 Hz |
| Included Accessories | Thermocouples, flow meter, user manual |
| Weight | Approx. 12 kg |
| Installation | Tabletop setup requiring minimal assembly |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the apparatus supports adjustable flow rates up to 10 L/min, allowing detailed analysis of fluid velocity impact on heat transfer and fin efficiency.
The apparatus is equipped with thermocouples capable of accurate temperature readings across a variety of common heat transfer fluids over a range of -10°C to 150°C.
Yes, it includes high precision, factory-calibrated sensors to provide reliable and repeatable experimental results.
By measuring temperature gradients and fluid flow characteristics across the finned tube, the apparatus provides empirical data essential for calculating actual fin efficiency under different operating conditions.
While the basic setup focuses on standard fin geometry, it allows for fin attachment replacement for comparative fin efficiency studies depending on model upgrades.
