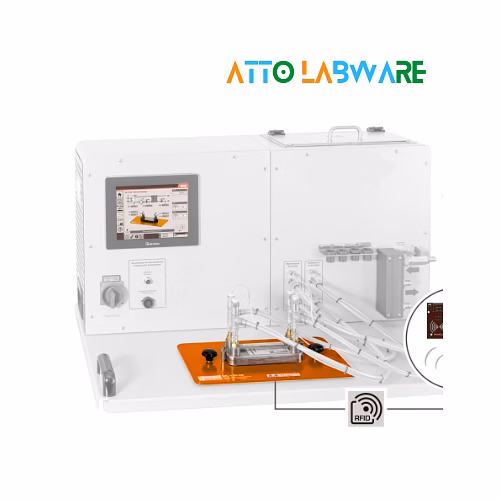

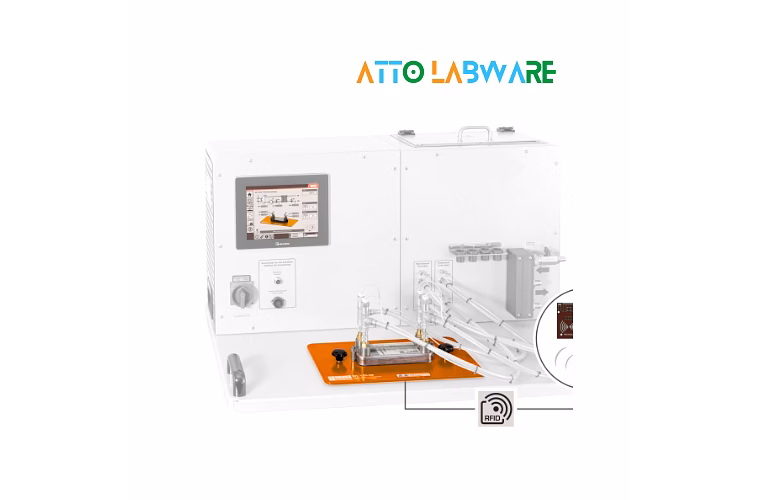

The Atto Labware Plate Heat Exchanger Apparatus is a specialized engineering laboratory instrument designed for detailed study and analysis of heat transfer processes in parallel and counterflow configurations. This apparatus enables precise examination of heat exchanger performance, including efficiency and Log Mean Temperature Difference (LMTD), making it an essential tool for academic and research institutions focusing on thermodynamics and heat transfer experiments. Constructed with high-quality material plates and transparent sections for visual inspection, this unit allows learners and researchers to observe thermal exchange phenomena in real-time, providing valuable insights into fluid flow and temperature gradients. Its modular design supports easy maintenance and adaptability in experimental setups, making it a reliable solution for hands-on educational environments and industrial research labs specializing in thermal systems.
Key Features
| Features | Description |
|---|---|
| Heat Transfer Modes | Supports parallel and counterflow heat transfer studies |
| Measurement Parameters | Enables analysis of heat exchanger efficiency and Log Mean Temperature Difference (LMTD) |
| Material Construction | High-quality corrosion-resistant plates suitable for various fluids |
| Visibility | Transparent sections for real-time observation of fluid dynamics and heat exchange |
| Modular Design | Facilitates easy assembly, maintenance, and adaptability in experimental setups |
| Applications | Ideal for engineering education, research labs, and thermal system analysis |
| Flow Configuration | Designed to demonstrate both parallel and counterflow configurations clearly |
| Measurement Interfaces | Integrated ports for temperature and flow sensors to acquire accurate data |
| Compact Size | Space-saving design suited for laboratory bench setups |
| Attributes | Description |
|---|---|
| Plate Material | Stainless steel or corrosion-resistant alloy |
| Number of Plates | Typically 10-20 plates for effective heat transfer area |
| Operating Temperature Range | Up to 150°C depending on fluid type |
| Operating Pressure | Up to 5 bar |
| Heat Transfer Area | Variable, depending on number of plates installed |
| Fluid Compatibility | Water, oils, and other non-corrosive liquid media |
| Temperature Sensors | Thermocouples or RTDs integrated at inlet and outlet points |
| Flow Rate Range | Adjustable via external pumps, typically 0-10 L/min |
| Dimensions | Compact size approximately 500mm x 400mm x 300mm |
| Weight | Approx. 15-20 kg |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Atto Labware Plate Heat Exchanger Apparatus is specifically designed to allow users to study and compare both parallel and counterflow heat transfer processes.
The apparatus enables precise measurement of heat exchanger efficiency and Log Mean Temperature Difference (LMTD), essential for thermal performance evaluation.
Yes, the construction materials and design allow use with water, oils, and other non-corrosive fluids commonly used in heat transfer experiments.
The apparatus includes transparent sections that permit real-time visual inspection of fluid flow and heat transfer within the plates.
The unit comes with integrated thermocouples or RTDs positioned at inlets and outlets to provide accurate temperature readings for analysis.
Yes, the modular design allows users to vary the number of plates to study the effect on heat exchanger performance.
