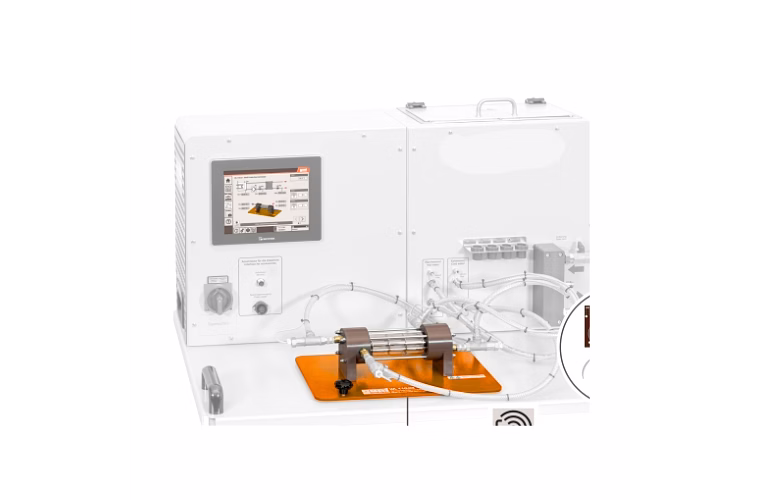

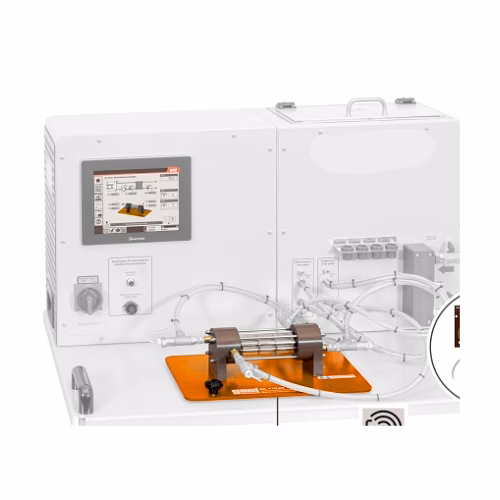

The Atto Labware Shell & Tube Heat Exchanger Apparatus is a specialized educational tool designed for in-depth experimental study of heat transfer principles in shell and tube heat exchangers. This apparatus enables the analysis of Log Mean Temperature Difference (LMTD) and thermal efficiency in both parallel flow and counterflow configurations, making it ideal for engineering labs and industrial training centers. Constructed with precision-engineered materials, the apparatus simulates real-world heat exchanger operations, providing hands-on experience with fluid dynamics and thermal interactions. It features transparent sections for visual flow observation and highly accurate temperature measurement points to facilitate detailed thermal analysis. This equipment is essential for demonstrating the effects of flow arrangement on heat transfer rates and for optimizing heat exchanger performance based on empirical data.
Key Features
| Features | Description |
|---|---|
| Flow Modes Studied | Parallel flow and counterflow configurations |
| Heat Transfer Measurement | Enables calculation of Log Mean Temperature Difference (LMTD) |
| Construction Material | High-grade stainless steel shell with transparent acrylic tube section |
| Temperature Sensors | Multiple precision thermocouples for inlet/outlet temperature monitoring |
| Efficiency Analysis | Determines thermal efficiency of the heat exchanger |
| Visual Observation | Transparent components allow visual tracking of fluid flow |
| Application | Designed for academic and industrial heat transfer experiments |
| Flow Rate Control | Adjustable flow rates for both shell and tube sides |
| Compact Design | Optimizes lab space without compromising measurement accuracy |
| Attributes | Description |
|---|---|
| Heat Exchanger Type | Shell and tube |
| Flow Arrangements | Parallel flow, Counterflow |
| Shell Material | Stainless steel |
| Tube Material | Acrylic (transparent section for visual study) |
| Temperature Measurement Points | 4 inlet/outlet points with thermocouples |
| Fluid Compatibility | Water and other selected heat transfer fluids |
| Flow Rate Range | Adjustable from low to moderate flows suited for lab studies |
| Dimensions | Approx. 600 mm x 300 mm x 400 mm (LxWxH) |
| Weight | Approx. 12 kg |
| Power Requirement | Not applicable (manual or external fluid source) |
| Included Accessories | Thermocouple sensors, flow control valves, mounting stands |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The apparatus is designed with adjustable flow paths allowing users to switch between parallel and counterflow configurations easily, enabling direct comparative studies of temperature profiles and heat transfer efficiency in both modes.
Yes, by using the precise inlet and outlet temperature measurements and flow rate data, users can calculate the thermal efficiency of the shell and tube heat exchanger under various operating conditions.
While the apparatus is primarily designed for water-based experiments, it supports other heat transfer fluids compatible with stainless steel and acrylic materials, following safety guidelines.
The acrylic section is engineered for standard lab temperature ranges and is robust enough for educational use, but it is not intended for high-temperature industrial simulation.
Yes, the apparatus includes individual flow control valves for both shell and tube sides allowing precise adjustment to simulate different operational scenarios.
