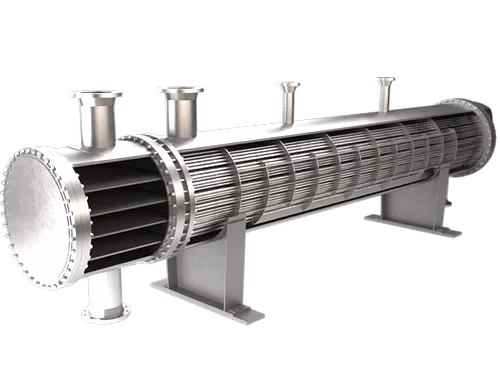

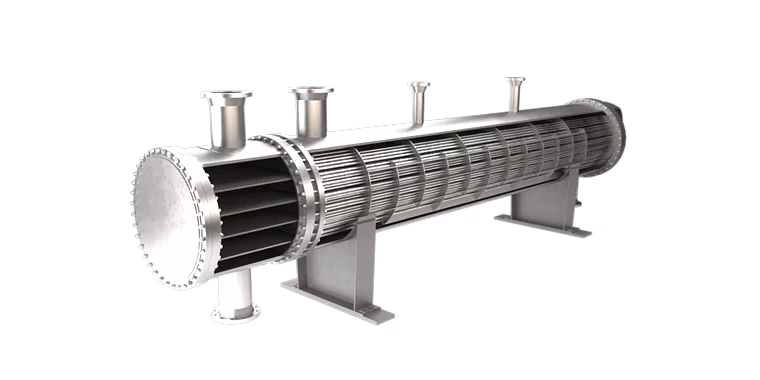

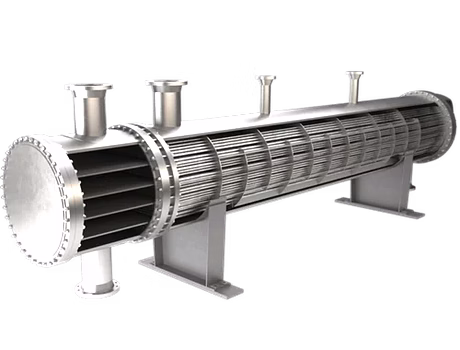

The Shell and Tube Heat Exchanger is a robust industrial heat transfer solution designed for high-efficiency thermal exchange between two fluid streams. Featuring a construction where one fluid flows inside a bundle of tubes and the second fluid flows over these tubes within a pressure-resistant shell, this exchanger facilitates efficient heat transfer while handling high pressures and temperatures. Crafted from corrosion-resistant materials such as stainless steel and copper alloys, it ensures longevity and minimal maintenance in demanding environments. The modular and customizable configurations make it suitable for diverse industrial sectors including power generation, chemical processing, HVAC systems, and oil refinery operations. This exchanger stands out for its reliable performance, ease of maintenance, and adaptability to various thermal loads and fluids, making it an indispensable component in industrial thermal management applications.
Key Features
| Features | Description |
|---|---|
| Heat Transfer Type | Shell and tube arrangement facilitating efficient heat exchange |
| Material Options | Available in stainless steel, copper alloys, and other corrosion-resistant materials |
| Application Domains | Ideal for power plants, chemical processing, HVAC, and oil refineries |
| Design Configuration | Modular and customizable to meet specific industrial thermal load requirements |
| Pressure Handling | Capable of withstanding high-pressure industrial environments |
| Temperature Tolerance | Designed for high-temperature operations |
| Maintenance | Easily maintainable with access for cleaning and inspection |
| Corrosion Resistance | High resistance to scaling and corrosion for prolonged service life |
| Fluid Flow Arrangement | One fluid flows inside tubes; the other fluid flows over tubes within the shell |
| Attributes | Description |
|---|---|
| Tube Bundle Material | Stainless steel / Copper alloys |
| Shell Material | Stainless steel / Carbon steel / Alloy steel |
| Design Pressure | Up to industrial grade high pressures (specific ratings customizable) |
| Operating Temperature Range | Suitable for temperatures up to 400°C or per customer requirements |
| Flow Configuration | Counterflow or parallel flow arrangements available |
| Customization | Tube diameter, length, number of passes, and shell size customizable |
| Heat Transfer Area | Varies based on design; scalable to meet process needs |
| Maintenance Access | Tube bundle removable for cleaning and inspection |
| Corrosion and Scaling Resistance | Enhanced by material selection and surface treatments |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The tubes are typically made from stainless steel or copper alloys known for corrosion resistance, while the shell can be made of stainless steel, carbon steel, or alloy steel depending on the application requirements.
Yes, the design features modular configurations allowing customization of tube diameter, length, number of tube passes, and shell size to accommodate specific thermal load needs.
It is engineered with industrial-grade materials and robust construction capable of withstanding high pressures and operating temperatures up to 400°C, ensuring reliable performance in harsh environments.
Yes, the tube bundle is designed for easy removal, facilitating cleaning and inspection, which simplifies maintenance and enhances operational lifespan.
It supports both counterflow and parallel flow arrangements, enabling optimized heat transfer efficiency based on specific process requirements.
Corrosion and scaling resistance is achieved through the selection of high-grade materials like stainless steel and copper alloys, complemented by surface treatments and design features that minimize scaling buildup.
Country Of Origin: India

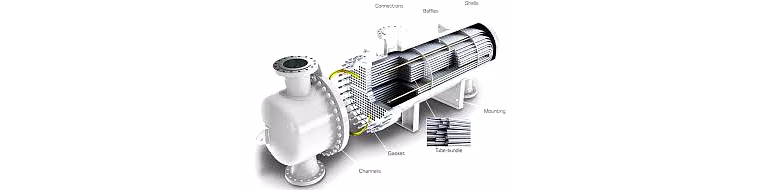

The Shell and Tube Heat Exchanger efficiently transfers heat between two fluids using a series of tubes enclosed in a shell. Ideal for industrial applications, it offers high thermal efficiency, durability, and easy maintenance.
Widely used in power plants, chemical processing, HVAC, and oil refineries, the Shell and Tube Heat Exchanger handles high pressures and temperatures with excellent reliability. Its design allows one fluid to flow through the tubes while another flows over them within the shell, enabling effective heat exchange. Available in various materials like stainless steel and copper alloys, it is resistant to corrosion and scaling. Modular configurations and customizable designs ensure suitability for diverse thermal loads and specific industrial requirements.
