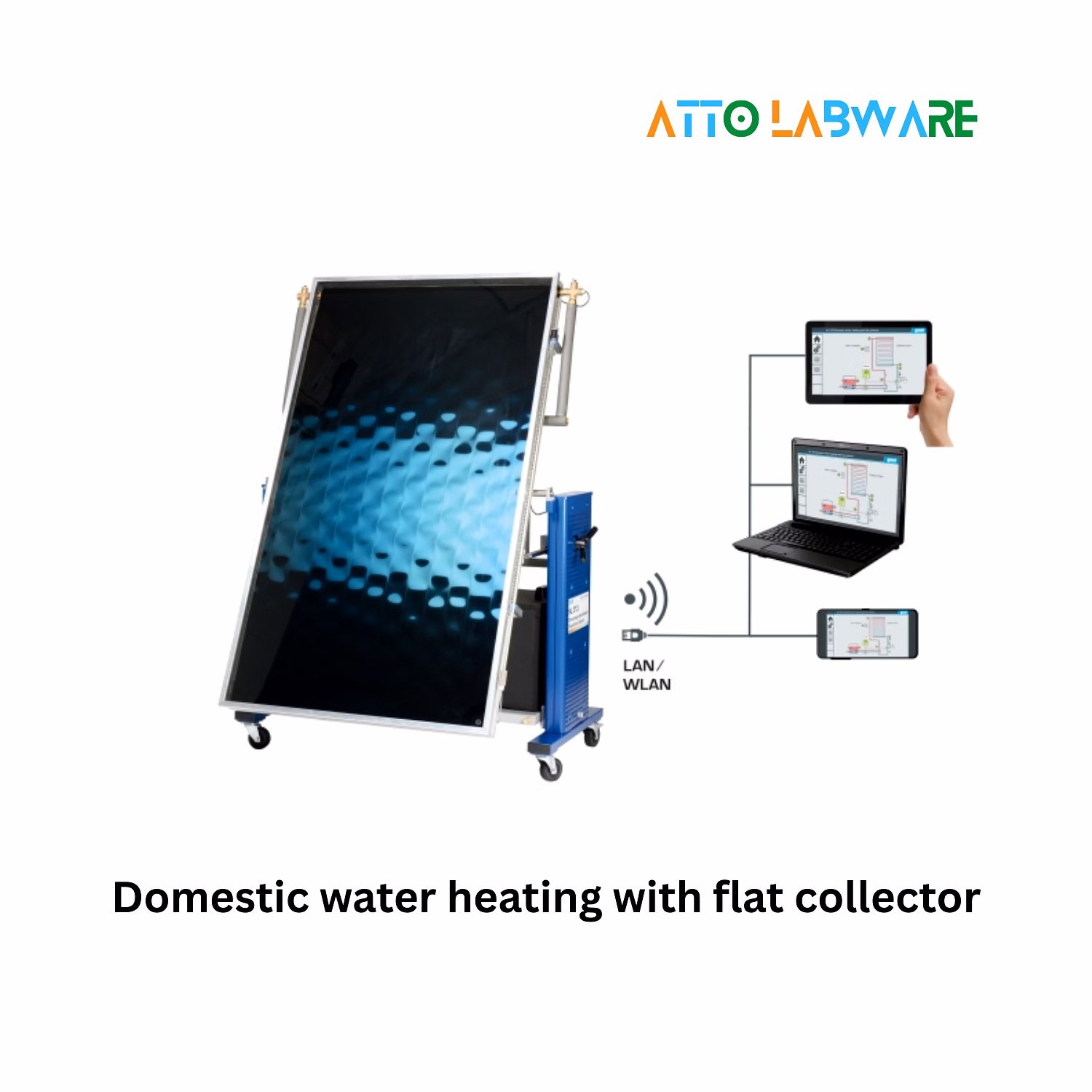

The Flat Plate Solar Collector Test System by Atto Labware is a precise and comprehensive experimental setup designed for evaluating the performance and efficiency of flat plate solar collectors. This advanced system facilitates critical studies on solar-to-thermal energy conversion, enabling users to analyze and optimize water heating applications efficiently. It is ideal for educational institutions, research laboratories, and industry professionals aiming to deepen their understanding of solar thermal technologies. Featuring robust construction, easy operation, and accurate data acquisition capabilities, the system provides vital insights into collector efficiency under various environmental conditions. It supports hands-on experiments for learning and development in renewable energy engineering, making it an essential tool for solar thermal research and development projects.
Key Features
| Features | Description |
|---|---|
| Type | Flat Plate Solar Collector Test System |
| Purpose | Studying solar-to-thermal conversion and efficiency |
| Application | Water heating and solar thermal performance analysis |
| Construction | Durable and corrosion-resistant materials |
| Data Acquisition | Integrated sensors and measurement instruments for real-time performance data |
| User Interface | User-friendly controls and display for ease of operation |
| Compatibility | Suitable for academic, research, and industrial testing environments |
| Installation | Compact system designed for lab-scale experimentation |
| Measurement Parameters | Temperature, flow rate, solar radiation intensity, and thermal output |
| Standards Compliance | Built to support experiments conforming to international solar testing standards |
| Attributes | Description |
|---|---|
| Collector Type | Flat plate solar collector |
| Working Fluid | Water |
| Temperature Range | Ambient to 100°C |
| Flow Rate Range | Adjustable, typically 0-10 liters per minute |
| Solar Radiation Sensor | High-precision pyranometer included |
| Temperature Sensors | Multiple thermocouples for inlet and outlet water temperature measurement |
| Material | Aluminum frame with tempered glass cover and insulated backing |
| Dimensions | Lab-scale compact size - approximately 1.2m x 0.8m x 0.3m |
| Power Supply | 220V AC, 50/60 Hz |
| Data Interface | USB and software interface for data logging and analysis |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The system measures key parameters such as inlet and outlet water temperature, flow rate, solar radiation intensity using a pyranometer, and calculates thermal efficiency in real-time.
Yes, it provides USB connectivity and includes software interfaces that allow for comprehensive data logging, export, and analysis.
While the system operates under natural solar radiation, it allows for flow rate adjustments and temperature monitoring to simulate various operating scenarios but does not include artificial solar simulation.
Water is used as the working fluid for thermal energy transfer within the test setup.
Yes, the design supports experiments and data acquisition methods in line with internationally recognized solar collector testing standards, facilitating reliable and standard-compliant research.
