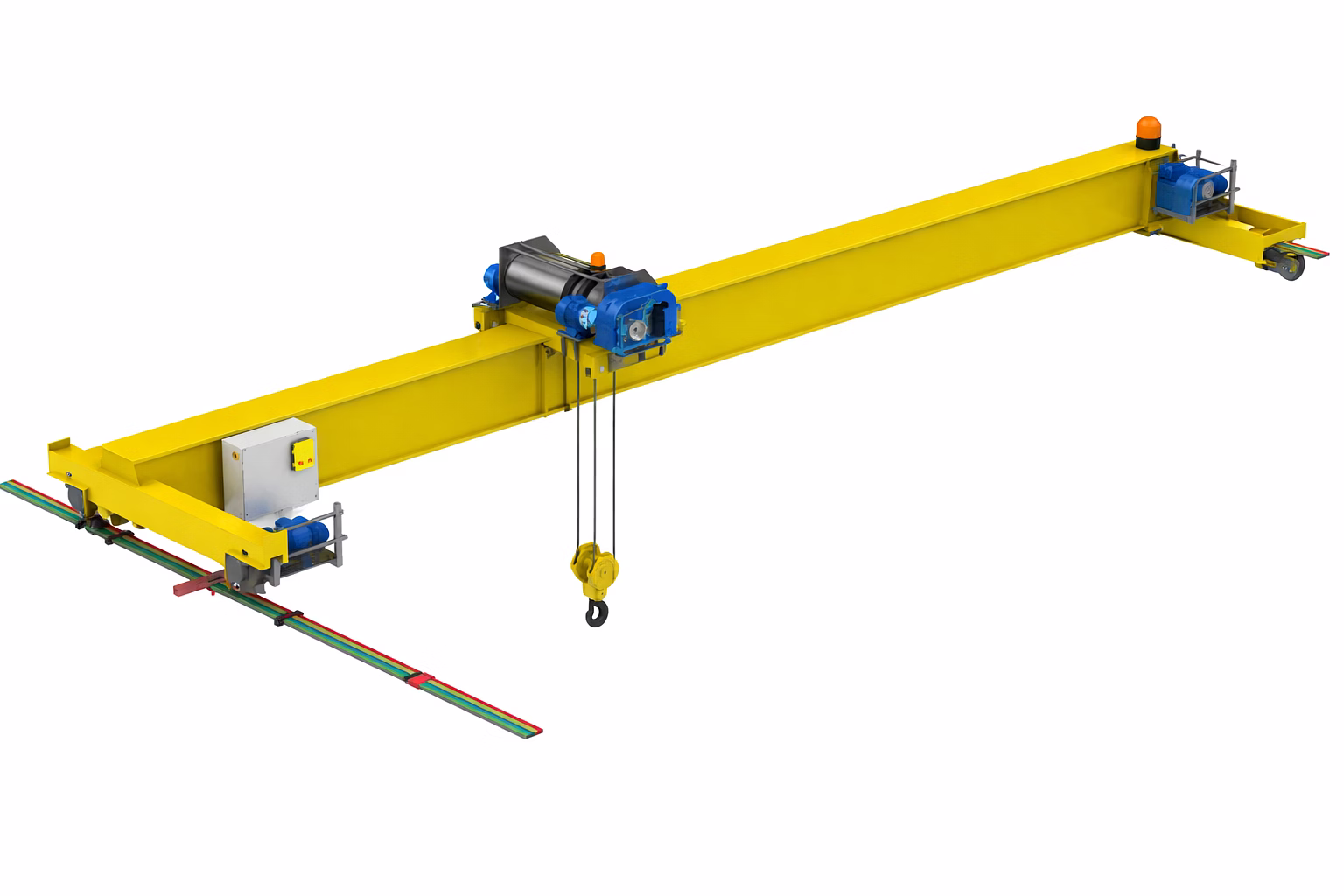

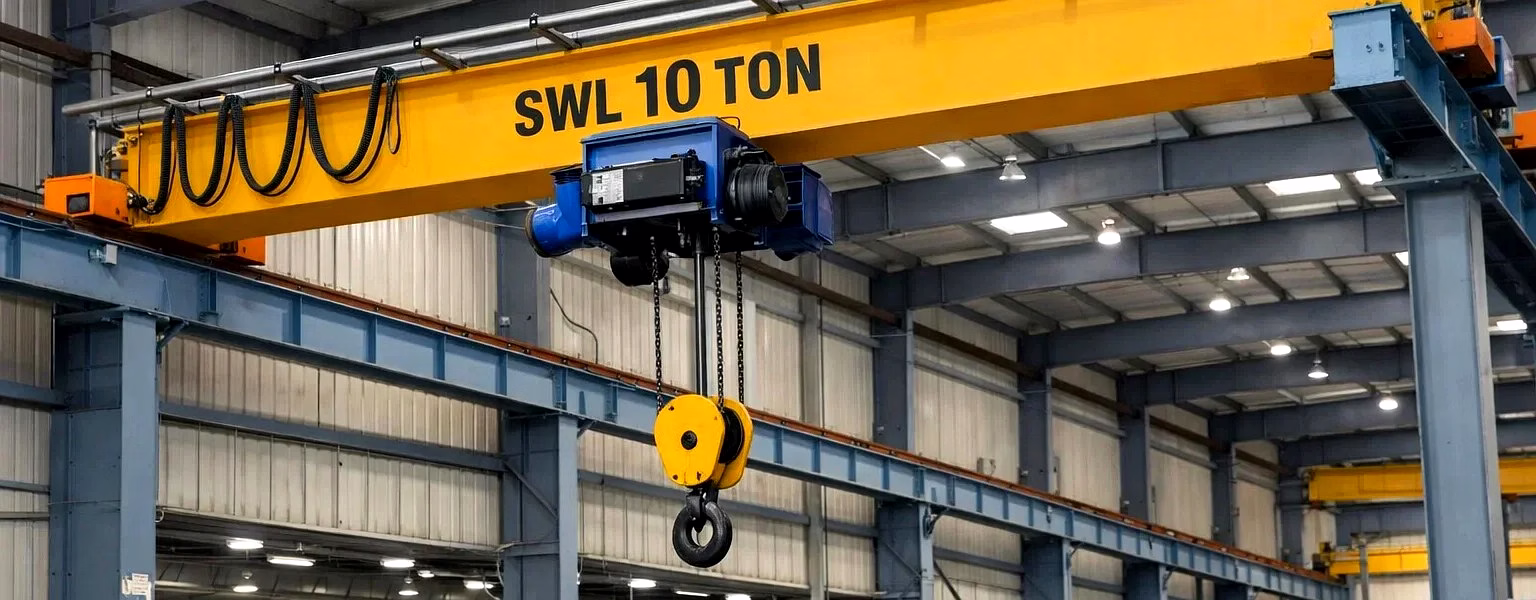

The SINGLE GIRDER EOT CRANE from AVREX iINTERNATIONAL is a robust, cost-effective material handling solution engineered for efficient lifting in industrial environments. Available in a lifting capacity range from 1 Ton to 15 Ton, this single girder electric overhead traveling crane is designed to deliver reliable performance for light to medium-duty operations while maximizing workspace utilization. Built to meet IS 3177 duty classification standards equivalent to M3 to M8, the crane is suitable for demanding industrial applications that require dependable, controlled movement of loads. The span and lifting height can be customized as per customer requirements and application needs, making it adaptable for factories, workshops, warehouses, assembly lines, maintenance bays, and production facilities. This single girder EOT crane can be configured with double hoist and dual speed options for improved operational flexibility and load handling precision. It is equipped with squirrel cage induction hoisting motors, with inbuilt fail-safe brakes for hoisting, cross travel, and long travel functions. All motors are provided with B/F insulation class compliance, supporting safe and efficient operation. For smooth and dependable power transmission, the crane can be supplied with a C-rail festoon system or drag chain arrangement for cross travel power supply, while DSL electrification is used for long travel movement. Cable ducts are also provided for panel-to-motor connections, helping maintain organized wiring and reliable system performance. The SINGLE GIRDER EOT CRANE is especially suitable for facilities that need a practical crane solution with low headroom requirements, simple operation, and minimal maintenance. Its compact design helps increase usable floor space while offering strong lifting capability and safe load transfer. With its emphasis on durability, efficiency, and safety, this crane is a smart investment for businesses seeking an economical overhead lifting system tailored to specific industrial needs.
Key Features
| Features | Description |
|---|---|
| Lifting Capacity | Available from 1 Ton to 15 Ton |
| Span | Customizable as per customer requirements |
| Lifting Height | Customizable as per application needs |
| Duty Classification | IS 3177 equivalent to M3 to M8 duty class |
| Hoist Options | Available with double hoist and dual speed configurations |
| Motor Type | Squirrel cage induction hoisting motors with fail-safe brakes |
| Power Supply System | C-rail festoon system, drag chain arrangement, and DSL system for long travel electrification |
| Attributes | Description |
|---|---|
| Product Name | SINGLE GIRDER EOT CRANE |
| Store Name | AVREX iINTERNATIONAL |
| MOQ | 1 Piece |
| Product Type | Industrial Overhead Crane |
| Crane Type | Single Girder EOT Crane |
| Capacity Range | 1 Ton to 15 Ton |
| Span | Customizable |
| Lifting Height | Customizable |
| Duty Class | M3 to M8 equivalent as per IS 3177 |
| Hoist Configuration | Double hoist and dual speed options available |
| Hoisting Motor | Squirrel cage induction motor |
| Safety Feature | Inbuilt fail-safe brakes |
| Insulation Class | B/F insulation class |
| Cross Travel Power Supply | C-rail festoon system or drag chain |
| Long Travel Electrification | DSL system |
| Cable Management | Cable ducts for panel-to-motor connections |
| Application | Light to medium-duty industrial material handling |
| Key Advantage | Cost-effective, simple operation, low maintenance, low headroom suitability |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The crane is available in a lifting capacity range from 1 Ton to 15 Ton, making it suitable for light to medium-duty industrial applications.
Yes, both the span and lifting height can be customized according to customer requirements and the specific application needs of the installation site.
This crane is designed in accordance with IS 3177 standards, equivalent to M3 to M8 duty class, depending on the operating requirement.
Yes, the crane can be configured with double hoist and dual speed options to improve load handling precision and operational flexibility.
It uses squirrel cage induction hoisting motors with inbuilt fail-safe brakes for hoisting, cross travel, and long travel operations.
For cross travel, the crane can use a C-rail festoon system or drag chain arrangement, while long travel electrification is handled through a DSL system.
Yes, the single girder design is ideal for low headroom applications and helps maximize available workspace.
Country Of Origin: India
|
Parameter |
Details |
|
Capacity Range |
Available from 1 Ton to 15 Ton lifting capacity |
|
Span |
Customizable as per customer requirements |
|
Lifting Height |
Can be provided as per application needs |
|
Duty Classification |
Designed in accordance with IS 3177 standards (Equivalent
to M3 – M8 Duty Class) |
|
Feature Options |
Available with Double Hoist and Dual Speed configurations |
|
Motor |
Squirrel Cage Induction Hoisting Motors equipped with
inbuilt fail-safe brakes for hoisting, cross travel, and long travel
operations. All motors comply with B/F insulation class. |
|
Power Supply System |
C-Rail Festoon System or Drag Chain arrangement for cross
travel power supply. DSL system used for long travel electrification. Cable
ducts provided for panel-to-motor connections. |
|
|
|
The SINGLE GIRDER EOT CRANE is a powerhouse of efficiency designed to streamline your operations. With its precision engineering and advanced features, this crane guarantees optimal performance, enabling you to handle heavy loads with ease and speed.
Built to last, this SINGLE GIRDER EOT CRANE is a testament to durability. Crafted from high-quality materials and subjected to rigorous testing, this crane ensures long-term reliability and endurance, making it a valuable investment for your business.
Prioritizing safety above all else, the SINGLE GIRDER EOT CRANE comes equipped with state-of-the-art safety mechanisms to protect both your workforce and your valuable goods. With its innovative safety features, you can have peace of mind knowing that every operation is secure and sound.
Special Features
of Single Girder Crane
·
Cost-effective design
·
Simple and user-friendly operation
·
Ideal for low headroom applications
·
Requires
minimal maintenance
·
Maximum utilization of workspace
·
Suitable for light to medium-duty industrial
applications
