Pressure booster DPA

Characteristics

At a glance

The pressure booster is a twin-piston pressure intensifier used only for compressing air. When the DPA is pressurised with compressed air, integrated check valves automatically ensure the pressure on the secondary side is built up. The output pressure p2 can increase to up to twice the value of the input pressure p1. The required output pressure is set using a manually operated pressure regulator. In the case of pressure boosters without a pressure regulator, the output pressure is always double the input pressure. The air supply to both drive pistons is controlled by a pneumatic directional control valve that reverses automatically when the stroke end position has been reached. The pressure booster starts up automatically when the input pressure is applied and the desired output pressure has not yet been reached. When the set output pressure is reached, the pressure booster stops operating to save energy, but restarts automatically when the output pressure drops again.

•

Available as pressure booster/air pressure reservoir combinations

•

Long service life

•

Compact design

•

Available with sensing option

Note: Pressure boosters are used for the occasional drawing-off of pressurised compressed air. Pressure boosters are not suitable as a substitute for a compressor, as wear on the seals and drive piston increases significantly when used continuously without breaks.

Note: A pressure gauge is strongly recommended to check the output pressure p2, as the required output pressure p2 must be set. The regulator setting of the DPA-63/100 can be secured against unauthorised adjustment using the regulator lock LRVS.

Tiger Classic valve

Characteristics

At a glance

General information:

• Particularly sturdy poppet valve principle for all 3/2- and 5/2-way valves

• Pneumatically actuated or electrically with F solenoid coil

• With flow rate performance of up to 7500 l/min

• With internal or external pilot air

• Pipe connection thread in sizes G1/8, G1/4, G1/2 and G3/4

• Proven mounting using hollow bolt on PAL or PRS rail (without ATEX category)

• Optimised switching times thanks to patented U-ring and servo control

• Note: Valves for potentially explosive atmospheres (ATEX category) are not suitable for mounting on PAL manifold rails or PRS manifold blocks.

F solenoid coils:

• Voltage 12 to 230 V DC; 12 to 240 V AC (50 to 60 Hz)

• Power consumption 4.1 to 5.5 W DC; 3.85 to 9 VA AC

• Selected types in accordance with the ATEX directive for potentially explosive atmospheres

• Solenoid coil can be easily replaced at a later date

• Solenoid coil not included in the scope of delivery

Variants:

• VL/O-3-...: normally closed or normally open, depending on the choice of connections

• MFH-3-..., MOFH-3-...MFH-3-...Normally closed, MOFH-3-...Normally open; by turning the seal under the cover, these valves can be converted to the other valve versionsc.

• MFH-3-...-S: This valve type can be used within a range of 0 to 0.8 MPa and also as MOFH (through flow when not actuated) with a separate pilot line.

• MFH-5-...-S: The external pilot air connection means that these valves can also be used with low operating pressures.

Mounting method

The valves Tiger Classic can be mounted on manifold rails PAL with common supply port or on PRS manifold blocks with common supply port and common exhausts. The valves are attached to the rails and blocks using hollow bolts. The manifold rail and manifold block have 2 to 6 valve positions. Vacant positions on the PAL manifold rails can be sealed with cap nuts, and on the PRS blocks cover plates can be used. The individual valves can be supplied with separate pressure levels via hollow bolts with threaded connections.

Characteristics

At a glance

The pressure sensor SDE5 is the cost-effective alternative for quick and easy pressure monitoring. This smart component instantly provides information about the actual

pressure and is an equally effective device for object detection as it is for compressed air, regulation and vacuum detection. It can be used wherever simple sensing of

the actual pressure is required:

• Compressed air monitoring

• Regulator monitoring

• Confirmation of suction in vacuum technology

• Object detection via back pressure

• Selectable output functions

• Teach-in function for programming

• Very short mounting times thanks to QS connections and wall brackets that can be linked

• Very quick switching-point adjustment by simply pressing a button

• Switching status indicated by an LED visible from all sides

• Relative pressure or differential pressure measurement

• 5 Pressure measuring ranges: 0 ... -1 bar, -1 ... 1 bar, 0 ... 2 bar, 0 ... 6 bar, 0 ... 10 bar

• Analogue output: 0 ... 10 V

• Electrical outputs: 1 switching output PNP or NPN

Service unit combination MSB4-FRC

Characteristics

At a glance

Combination of filter regulator and lubricator.

• Grid dimension: 40 mm

• High flow rate and extremely efficient in removing contaminants

• Good regulation characteristics with minimal pressure hysteresis

• Setting values are secured by locking the rotary knob

• Lockable rotary knob

• Two pressure regulation ranges: 0.5...7 bar and 0.5...12 bar

• Optionally with manual or fully automatic condensate drain

• Choice of filter inserts 5 μm or 40 μm

• Available with flow in the opposite direction.

• Product complies with ISO 1179-1 and ISO 228-1

One-way flow control valve GRxA, GRxZ

Characteristics

At a glance

•

Functional combination of one-way flow control valve and piloted check valve

•

Flow control valve, flow control at one end

•

Polymer, metal or stainless steel design

•

Standard, mini, in-line variants with different flow rate ranges

•

Connections: thread at both ends, push-in connector at both ends, thread/push-in connector

Product segmentation

Festo Core Range

Solves the majority of your automation tasks

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

the Core Range offers you the best value with the expected high Festo quality.

• Quickest delivery, worldwide – wherever, whenever

• Expected high Festo quality

• Easy and fast to select

Diagrams

Further information → grla/grlz

The diagrams shown in this document are also available online. These can be used to display precise values.

Series

One-way flow control valves can be used to regulate the piston speed of pneumatic drives as they advance and retract.

[GRLA]

One-way flow control valve

[GRLZ]

One-way flow control valve

The throttle function only works in the exhaust air direction, the non-return function works in the opposite direction.

The throttle function only works in the supply air direction, the non-return function works in the opposite direction.

[GRLSA]

One-way flow control valve

[CRGRLA]

One-way flow control valve, corrosion resistant

The throttle function only works in the exhaust air direction, the non-return function works in the opposite direction.

Gradual preselection of the flow rate range using a rotary switch and infinitely variable precision adjustment with hex key using a scale.

The throttle function only works in the exhaust air direction, the non-return function works in the opposite direction.

Flow rate characteristic

[LF]

Low flow

[MF]

Medium flow

Precise setting for low piston speeds

Precise setting for medium piston

DSBC-

-C – with clamping unit, standard hole pattern

• Standard hole pattern

• Piston rod can be clamped in any position

• The piston rod can be held in position for long periods even with alternating loads, fluctuating operating

pressure or leaks in the system Additional measures are required for use in safety-related applications; in Europe, for example, the standards listed under the EC Machinery Directive

must be observed.

Without additional measures in accordance with legally specified minimum requirements, the product is not suitable as a safety-related component in control systems.

DSBC-...-E1/-E2/-E3 – with end-position locking, standard hole pattern

• Standard hole pattern

• Positive locking in the end position as a drop guard. In the event of a pressure drop, the piston rod is

  locked in its end position.

• Optionally at one or both ends Additional measures are required for use in safety-related applications; in Europe, for example, the standards listed under the EC Machinery Directive must be observed.

Without additional measures in accordance with legally specified minimum requirements, the product is not suitable as a safety-related component in control systems.

Standards-based cylinders DSBC, to ISO 15552

• Double-acting

• For contactless position sensing

• Available with protection against rotation

• EX4: for use in potentially explosive

areas

• Wide range of accessories enables

the cylinder to be installed virtually

anywhere

Round cylinders DSNU

Key features

DSNU-8 ... 63 DSNU-8 ... 25

• Stainless steel piston rod

• Good running performance and long service life

• Piston rod with male and female thread

• Extensive range of accessories makes it possible to install the cylinder virtually anywhere

Push-in fittings – product range

Miniature push-in fittings for maximum

component density in confined spaces.

For pneumatic applications with a temperature

range up to 80°C and a pressure

range up to 14 bar.

Tubing O.D. of 2, 3, 4 and 6 mm with

connecting thread

One-way flow control valve VFOE

Characteristics

At a glance Link online

One-way flow control valve for direct mounting on the drive

• Low-cost solution for standard applications

• Simple and reliable adjustment of the speed of a pneumatic cylinder

• Extremely easy assembly

• Fast commissioning

• Compact dimensions

• Suitable for use in accordance with ATEX declaration from Festo for zones 1, 2 and 21, 22

Product segmentation

Festo Core Range

Solves the majority of your automation tasks

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

the Core Range offers you the best value with the expected high Festo quality.

• Quickest delivery, worldwide – wherever, whenever

• Expected high Festo quality

• Easy and fast to select

Diagrams

Link online

The diagrams shown in this document are also available online. These can be used to display precise values.

Function

One-way flow control valves regulate the piston speed of pneumatic drives as they advance and retract. This is achieved through the appropriate control of the flow rate of compressed air in the exhaust air or supply air direction.

Push-in fittings QS, standard

Push-in fittings – product range Miniature push-in fittings for maximum

component density in confined spaces.

For pneumatic applications with a temperature

range up to 80°C and a pressure

range up to 14 bar.

Tubing O.D. of 2, 3, 4 and 6 mm with

connecting threads M3, M5, M6, M7,

R1/8 and G1/8.

Coupling for hydraulic machinery parts

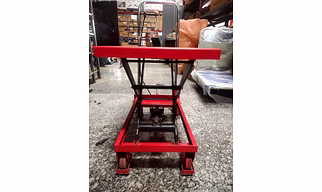

StackEasy Hydraulic Lift Table Truck

SE/PT 15

Capacity:- 150Kg

Min. Table Height :-220MM

Max. Table Height :- 720MM

The dimension Of Table :- 700x450x36MM

Caster wheel ;- 100x25MM

Net Weight :-46 Kg

Height of handle from the ground :-950MM

StackEasy Hydraulic Lift Table Truck

SE/PT 30

Capacity:- 300Kg

Min. Table Height :-285/340MM

Max. Table Height :- 880MM

The dimension Of Table :- 850x500x36MM

Caster wheel ;- 125x40MM

Net Weight :-77 Kg

Height of handle from the ground :-990MM

StackEasy Hydraulic Lift Table Truck

SE/PT100/2035x750

Capacity:- 1000Kg

Min. Table Height :-360MM

Max. Table Height :- 1360MM

The dimension Of Table :- 2035x750MM

Caster wheel ;- 180x50MM

Net Weight :-200 Kg

Height of handle from the ground :-1000MM

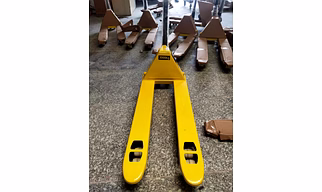

Stackeasy Hydraulic Hand Pallet Truck

Capacity:- 2000kg-5000kg

Fork Length - 1150/1220 MM

Fork Width - 550/685 MM

Lowered Height -85 MM

Lifting Height - 190 MM

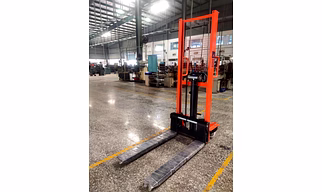

Stackeasy Ajustable Manual Stacker

Capacity- 1000kg/1Tonne

Fork  length -900MM

Adjustable fork Width up to - 680MM

Lower Fork Height -85 MM

Lifting Height - 1600Mm

Dimension - 2100x750x1420MM

Self Weight - 227Kg

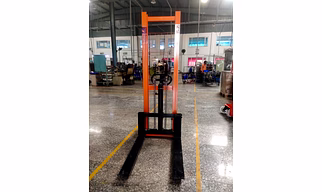

StackEasy Ajustable Manual Stacker

Capacity - 2000Kg

Fork Length- 900MM

Adjustable Fork Width up to- 680MM

Lower Fork Height - 85MM

Lifting Height - 1600MM

Self Weight-250Kg

StackEasy Hydraulic Rotary Drum Handling Stacker

SE/RDH 35

Rated Capacity- 350Kg

Lifting Height- 1425MM

Overall Length- 1190MM

Overall Width- 890MM

Overall Height- 2020MM

Net Weight- 155Kg

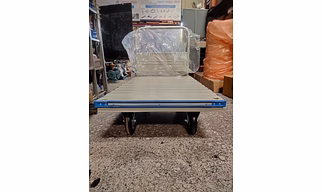

Stackeasy Platform Hand Trolley

PLAT/S/1590/TRLY

Capacity:- 1000 Kg

Dimension :- 1500x900MM

Wheel :- 2 Swivel + 2 Fixed , 200x50 MM

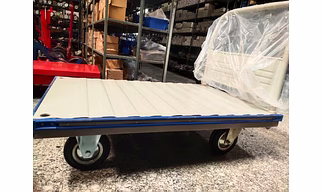

Stackeasy Platform Hand Trolley

PLAT/S/1275/TRLY

Capacity:- 500 Kg

Dimension :- 1200x750MM

Wheel :- 2 Swivel + 2 Fixed , 200x50 MM

StackEasy Platform Hand Trolley

PLAT/S/9060/TRLY

Capacity:- 350Kg

Dimension :- 900x600 mm

Caster Wheel :- 2swivel + 2 Fixed, rigid castor ,130mm

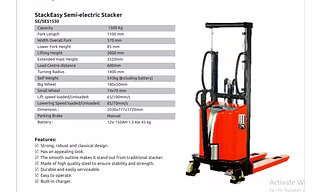

StackEasy Semi-Electric Stacker

SE/SES 1535

Capacity :- 1500Kg

Fork Length:- 1100MM

Width Overall Fork:-570MM

Lower Fork Height;- 85MM

Lifting Height:- 3500MM

Extended mast Height- 4070

Load Center distance;-800MM

Self Weight;- 450Kg

Big Wheel;- 180x50 MM

Small Wheel :-74x70MM

Dimension ;- 2500x1720x770MM

Parking Brake;- Manual

Battery;- 12V 150AH 1.5 Kw 45 Kg

StackEasy Semi-Electric Stacker

SE/SES 1030

Capacity :- 1000Kg

Fork Length:- 1100MM

Width Overall Fork:-570MM

Lower Fork Height;- 85MM

Lifting Height:- 3000MM

Extended mast Height- 3570

Load Center distance;-800MM

Self Weight;- 430Kg

Big Wheel;- 180x50 MM

Small Wheel :-74x70MM

Dimension ;- 2080x1720x770MM

Parking Brake;- Manual

Battery;- 12V 150AH 1.5 Kw   45 Kg
