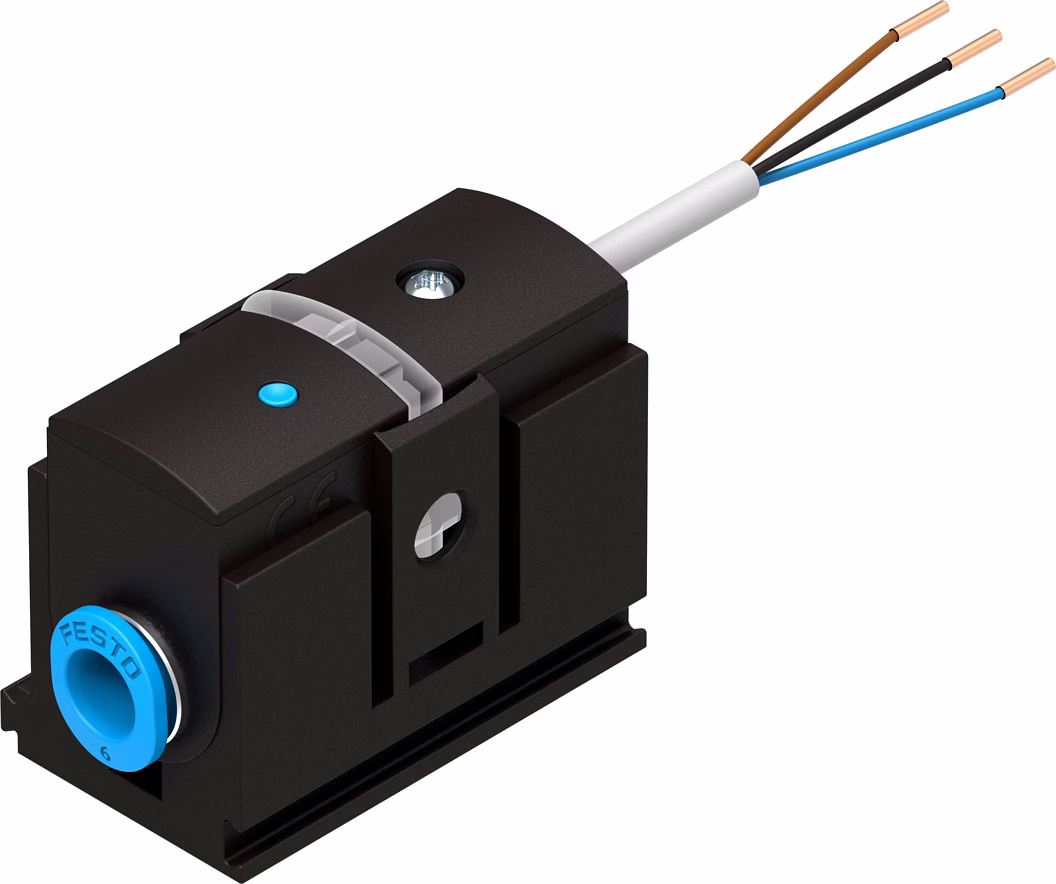

The Pressure Sensor SDE5 is a highly efficient and cost-effective solution designed for quick and accurate pressure monitoring in various industrial applications. This smart sensor instantly delivers precise information about actual pressure levels, making it ideal for monitoring compressed air, regulating systems, vacuum detection, and object detection through back pressure measurement. The sensor supports selectable output functions and includes a convenient teach-in programming function, allowing for effortless customization to specific requirements. With remarkably short mounting times facilitated by QS connections and linkable wall brackets, installation is seamless and time-saving. Users can quickly adjust the switching point by pressing a button, ensuring rapid configuration in dynamic environments. The sensor provides clear switching status feedback through a highly visible LED indicator, supporting effective real-time monitoring. It offers relative pressure or differential pressure measurement with five configurable pressure ranges: 0 to -1 bar, -1 to 1 bar, 0 to 2 bar, 0 to 6 bar, and 0 to 10 bar. The analogue output ranges from 0 to 10 V, and it features one electrical switching output which can be selected as either PNP or NPN, offering flexible integration with various control systems. This pressure sensor is perfect for industries seeking reliable, adaptable, and easy-to-use pressure monitoring solutions to enhance operational efficiency and safety.
Key Features
| Features | Description |
|---|---|
| Pressure Measuring Ranges | 0 ... -1 bar, -1 ... 1 bar, 0 ... 2 bar, 0 ... 6 bar, 0 ... 10 bar |
| Switching Outputs | 1 electrical switching output, selectable PNP or NPN |
| Analogue Output | 0 ... 10 V |
| Programming Function | Teach-in function for easy and fast programming |
| Mounting | QS connections and linkable wall brackets for very short mounting times |
| Switching Point Adjustment | Quick adjustment by simply pressing a button |
| LED Indicator | Switching status indicated by an LED visible from all sides |
| Measurement Type | Supports relative pressure and differential pressure measurement |
| Application Areas | Compressed air monitoring, regulator monitoring, vacuum technology, object detection via back pressure |
| Attributes | Description |
|---|---|
| Model | SDE5 |
| Pressure Type | Relative pressure / Differential pressure |
| Pressure Range Options | 0 ... -1 bar, -1 ... 1 bar, 0 ... 2 bar, 0 ... 6 bar, 0 ... 10 bar |
| Output Signal | Analogue 0 ... 10 V |
| Switching Output Type | Selectable PNP or NPN |
| Connection Type | QS connections |
| Mounting Method | Wall brackets, linkable |
| Programming | Teach-in function |
| Indicator | Multidirectional LED indicator for switching status |
| Applications | Compressed air monitoring, regulator monitoring, vacuum confirmation, object detection |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The SDE5 offers five pressure measuring ranges: 0 to -1 bar, -1 to 1 bar, 0 to 2 bar, 0 to 6 bar, and 0 to 10 bar, accommodating a wide range of industrial applications.
Yes, the sensor allows selection between PNP and NPN electrical switching outputs according to system requirements.
It features QS connections and linkable wall brackets that reduce mounting time significantly and includes a teach-in programming function and one-button switching point adjustment for quick configuration.
Yes, it is designed for versatile use including compressed air monitoring, vacuum confirmation, and object detection via back pressure.
It provides an analogue output signal ranging from 0 to 10 V and one electrical switching output that can be customized to PNP or NPN.
Country Of Origin: India
Characteristics
At a glance
The pressure sensor SDE5 is the cost-effective alternative for quick and easy pressure monitoring. This smart component instantly provides information about the actual
pressure and is an equally effective device for object detection as it is for compressed air, regulation and vacuum detection. It can be used wherever simple sensing of
the actual pressure is required:
• Compressed air monitoring
• Regulator monitoring
• Confirmation of suction in vacuum technology
• Object detection via back pressure
• Selectable output functions
• Teach-in function for programming
• Very short mounting times thanks to QS connections and wall brackets that can be linked
• Very quick switching-point adjustment by simply pressing a button
• Switching status indicated by an LED visible from all sides
• Relative pressure or differential pressure measurement
• 5 Pressure measuring ranges: 0 ... -1 bar, -1 ... 1 bar, 0 ... 2 bar, 0 ... 6 bar, 0 ... 10 bar
• Analogue output: 0 ... 10 V
• Electrical outputs: 1 switching output PNP or NPN
