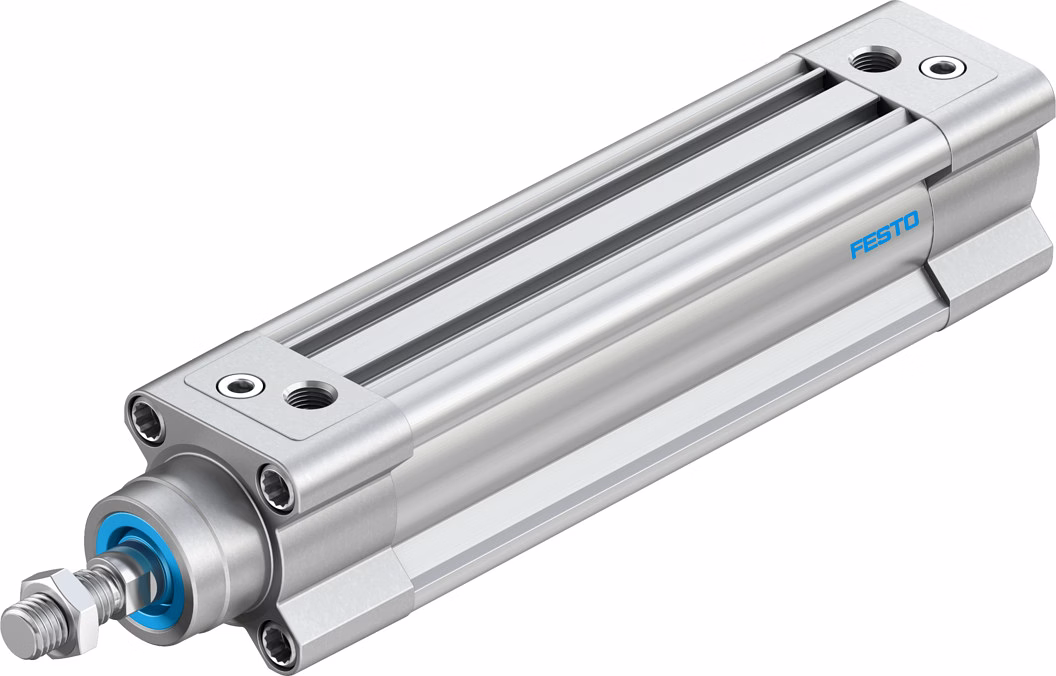

The ISO Cylinder DSBC series offers advanced pneumatic cylinder solutions distinguished by reliable clamping and locking features designed to ensure precise and secure piston rod positioning in various industrial applications. The DSBC-C model incorporates a clamping unit with a standardized hole pattern, enabling the piston rod to be clamped securely at any position. This ensures the piston rod maintains its position over extended periods, even under alternating loads, fluctuating operating pressures, or in cases of leakage within the pneumatic system. For enhanced operational safety, the product complies with standards under the EC Machinery Directive, although additional measures are necessary for its use as a safety-related component in control systems. The DSBC-E series (E1, E2, E3) features end-position locking mechanisms that provide positive locking as a drop guard. This locking function secures the piston rod in its end position to prevent unintended movement during pressure drops, and can be applied on one or both ends based on application needs. Ideal for industrial automation and manufacturing setups that require high precision and safety, the ISO Cylinder DSBC series combines standardized installation patterns with innovative safety mechanisms to deliver dependable pneumatic actuation performance.
Key Features
| Features | Description |
|---|---|
| Standard Hole Pattern | Uniform mounting interface ensuring compatibility with various setups |
| Clamping Unit (DSBC-C) | Enables piston rod clamping at any position for stable holding |
| End-Position Locking (DSBC-E1/E2/E3) | Positive locking at cylinder ends acting as a drop guard during pressure drop |
| Load Handling | Maintains piston rod position under alternating loads and fluctuating pressure |
| Safety Compliance | Requires additional measures per EC Machinery Directive for use in safety-related systems |
| Versatile Application | Suitable for long-term position holding even with system leaks |
| Locking Option | Available locking on one or both ends for customized safety requirements |
| Attributes | Description |
|---|---|
| Model Variants | DSBC-C, DSBC-E1, DSBC-E2, DSBC-E3 |
| Mounting Interface | Standardized hole pattern |
| Piston Rod Holding | Clamping at any position (DSBC-C); Positive end-position locking (DSBC-E) |
| Operating Conditions | Supports fluctuating pressures and alternating loads |
| Safety Considerations | Not inherently safety-related without additional certified measures |
| Use Cases | Industrial automation, machinery requiring precise pneumatic control |
| Locking Positions | Option for locking at one or both cylinder ends |
| Compliance Standards | Conforms to EC Machinery Directive with extra safety measures |
| Holding Mechanism Type | Mechanical clamping and positive locking |
| Long Duration Holding | Maintains piston position even in case of system leaks or pressure changes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the DSBC-C model utilizes a clamping unit that securely holds the piston rod in any position, effectively maintaining its position during pressure fluctuations and system leaks.
The DSBC series must comply with the EC Machinery Directive standards and require additional safety measures to be used as safety-related components in control systems.
Yes, the DSBC-E models offer optional positive end-position locking at one or both ends of the cylinder to act as a drop guard during pressure loss.
Without implementing legally specified minimum safety measures, the ISO cylinder is not suitable as a safety-related component in machinery control systems.
Yes, the standard hole pattern facilitates straightforward installation and compatibility with most industrial pneumatic setups.
Country Of Origin: India
DSBC-
-C – with clamping unit, standard hole pattern
• Standard hole pattern
• Piston rod can be clamped in any position
• The piston rod can be held in position for long periods even with alternating loads, fluctuating operating
pressure or leaks in the system Additional measures are required for use in safety-related applications; in Europe, for example, the standards listed under the EC Machinery Directive
must be observed.
Without additional measures in accordance with legally specified minimum requirements, the product is not suitable as a safety-related component in control systems.
DSBC-...-E1/-E2/-E3 – with end-position locking, standard hole pattern
• Standard hole pattern
• Positive locking in the end position as a drop guard. In the event of a pressure drop, the piston rod is
locked in its end position.
• Optionally at one or both ends Additional measures are required for use in safety-related applications; in Europe, for example, the standards listed under the EC Machinery Directive must be observed.
Without additional measures in accordance with legally specified minimum requirements, the product is not suitable as a safety-related component in control systems.
