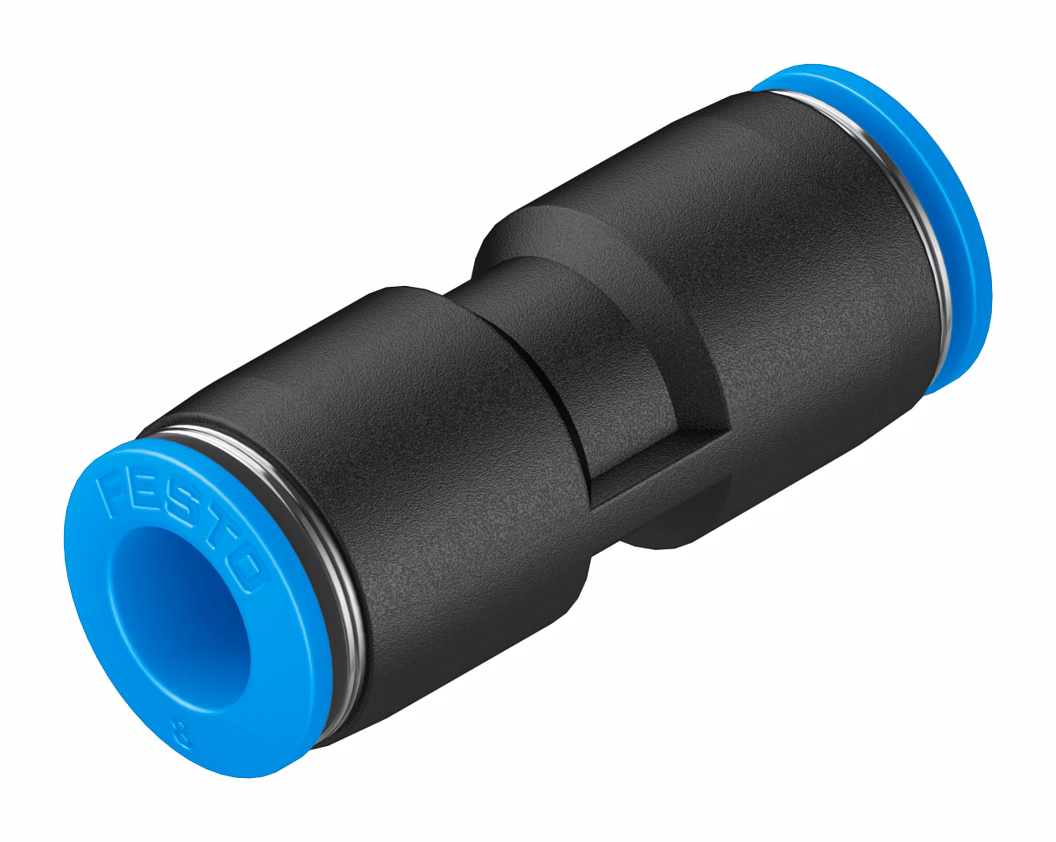

The Push-in Connector QS series is a range of miniature push-in fittings designed for pneumatic applications requiring maximum component density within confined spaces. These connectors support tubing outer diameters (O.D.) of 2 mm, 3 mm, 4 mm, and 6 mm, providing versatility for various pneumatic system designs. They are compatible with multiple connecting thread types including M3, M5, M6, M7, R1/8, and G1/8, allowing for flexible integration in diverse pneumatic setups. The fittings are engineered to operate efficiently within a temperature range up to 80°C and withstand pressures up to 14 bar, making them suitable for moderate to high-pressure pneumatic circuits. Their compact design and reliable push-in mechanism ensure quick and secure tube connections, optimizing installation time and reliability in industrial automation, manufacturing, and process control applications.
Key Features
| Features | Description |
|---|---|
| Product Range | Miniature Push-in Fittings QS Series |
| Tubing Outer Diameter (O.D.) Compatibility | 2 mm, 3 mm, 4 mm, 6 mm |
| Connecting Thread Types | M3, M5, M6, M7, R1/8, G1/8 |
| Temperature Range | Up to 80°C |
| Pressure Range | Up to 14 bar |
| Design | Compact miniature fittings for maximum component density |
| Application | Pneumatic systems in confined spaces |
| Connection Mechanism | Quick and secure push-in tube connection |
| Material Compatibility | Compatible with standard pneumatic tubing materials |
| Installation | Easy installation and removal without special tools |
| Attributes | Description |
|---|---|
| Tube Outer Diameter | 2, 3, 4, 6 mm |
| Thread Types | M3, M5, M6, M7, R1/8, G1/8 |
| Maximum Operating Pressure | 14 bar |
| Maximum Operating Temperature | 80°C |
| Fitting Type | Push-in pneumatic connector |
| Material | High-quality industrial-grade composite or metal (specific material details to be confirmed) |
| Operation | Push-in tube insertion with secure locking |
| Intended Use | Pneumatic applications in compact spaces |
| Installation | No special tools required for insertion or removal |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Push-in Connector QS series supports a maximum operating pressure of up to 14 bar.
This product is compatible with tubing outer diameters of 2 mm, 3 mm, 4 mm, and 6 mm.
They are suitable for use in applications up to 80°C, making them ideal for moderate temperature pneumatic environments.
Available connecting thread sizes include M3, M5, M6, M7, R1/8, and G1/8.
No special tools are required; the push-in mechanism enables easy installation and removal.
Yes, the miniature design facilitates maximum component density in confined spaces.
They are best suited for pneumatic systems requiring compact, reliable connections such as industrial automation and process control.
Country Of Origin: India
Push-in fittings QS, standard
Push-in fittings – product range Miniature push-in fittings for maximum
component density in confined spaces.
For pneumatic applications with a temperature
range up to 80°C and a pressure
range up to 14 bar.
Tubing O.D. of 2, 3, 4 and 6 mm with
connecting threads M3, M5, M6, M7,
R1/8 and G1/8.
