The Service Unit Combination MSB4-FRC integrates a high-performance filter regulator and lubricator into one compact assembly designed to optimize pneumatic system efficiency. With a precise 40 mm grid dimension, this unit provides a high flow rate to ensure operational excellence while effectively removing contaminants through choice filter inserts rated at 5 μm or 40 μm. It features excellent regulation characteristics with minimal pressure hysteresis, maintaining system stability under varying conditions. The rotary knob is lockable to secure setting values, preventing unintentional adjustments. The device supports two pressure regulation ranges (0.5 to 7 bar and 0.5 to 12 bar), catering to different pneumatic applications. Users can choose between manual or fully automatic condensate drainage options to suit maintenance preferences. Additionally, this service unit can be ordered with reversed flow direction to accommodate various installation needs. All configurations of the MSB4-FRC fully comply with ISO 1179-1 and ISO 228-1 standards, ensuring international quality and compatibility.
Key Features
| Features | Description |
|---|---|
| Grid Dimension | 40 mm |
| Components | Filter Regulator and Lubricator Combination |
| Flow Rate | High flow rate for efficient operation |
| Contaminant Removal | Extremely efficient with options for 5 μm or 40 μm filter inserts |
| Pressure Regulation Ranges | 0.5 to 7 bar and 0.5 to 12 bar |
| Pressure Hysteresis | Minimal pressure hysteresis ensuring stable regulation |
| Knob Locking | Lockable rotary knob to secure setting values |
| Condensate Drain Options | Manual or fully automatic |
| Flow Direction | Available with flow in the opposite direction |
| Standards Compliance | ISO 1179-1 and ISO 228-1 |
| Attributes | Description |
|---|---|
| Filter Insert Options | 5 μm or 40 μm |
| Regulator Pressure Range | 0.5 to 7 bar or 0.5 to 12 bar |
| Grid Size | 40 mm |
| Condensate Drain Types | Manual or Fully Automatic |
| Flow Direction | Standard or Opposite Direction Available |
| Rotary Knob | Lockable for secure settings |
| Standards | ISO 1179-1 and ISO 228-1 compliant |
| Product Type | Service unit combination integrating filter, regulator, and lubricator |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the MSB4-FRC service unit is available with the option for flow in the opposite direction to cater to various system layout requirements.
The MSB4-FRC offers two condensate drainage options: manual drain for routine user control and fully automatic drain for maintenance-free operation.
The lockable rotary knob prevents accidental changes to the regulator settings, ensuring consistent pressure regulation and reducing downtime due to misadjustments.
Customers can choose between 5 μm and 40 μm filter inserts, depending on the required level of contaminant removal for their pneumatic applications.
Yes, it complies with ISO 1179-1 for fittings and ISO 228-1 for pipe threads, ensuring compatibility and quality assurance.
It supports two pressure regulation ranges: 0.5 to 7 bar and 0.5 to 12 bar, allowing flexibility for various pneumatic systems.

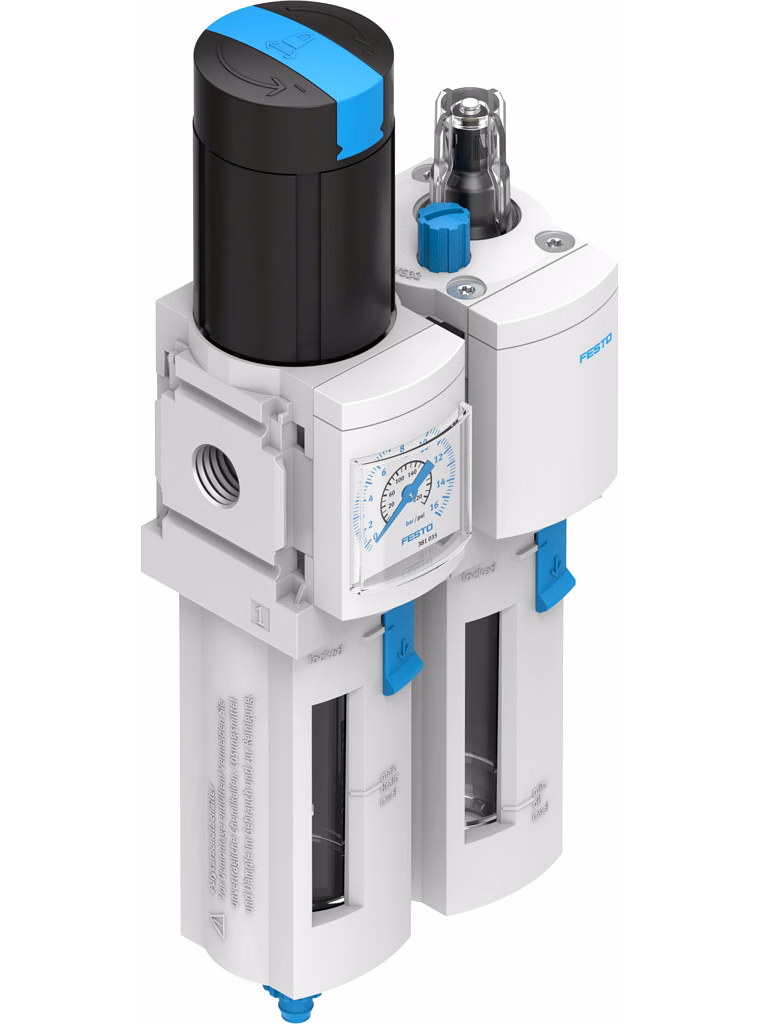

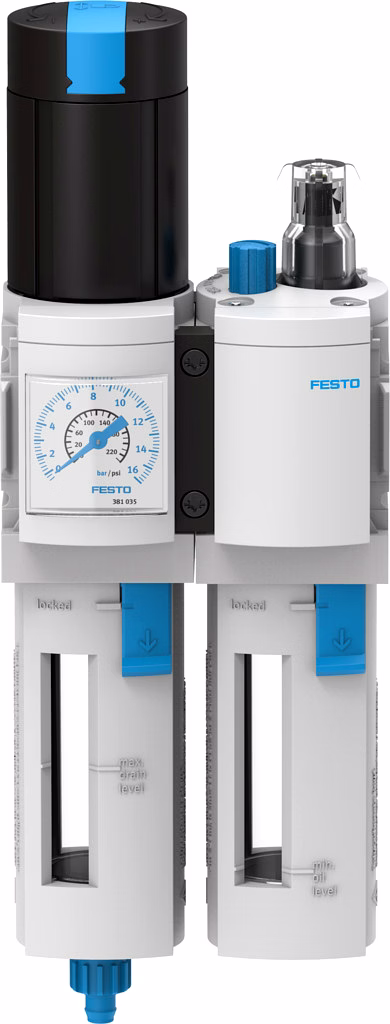

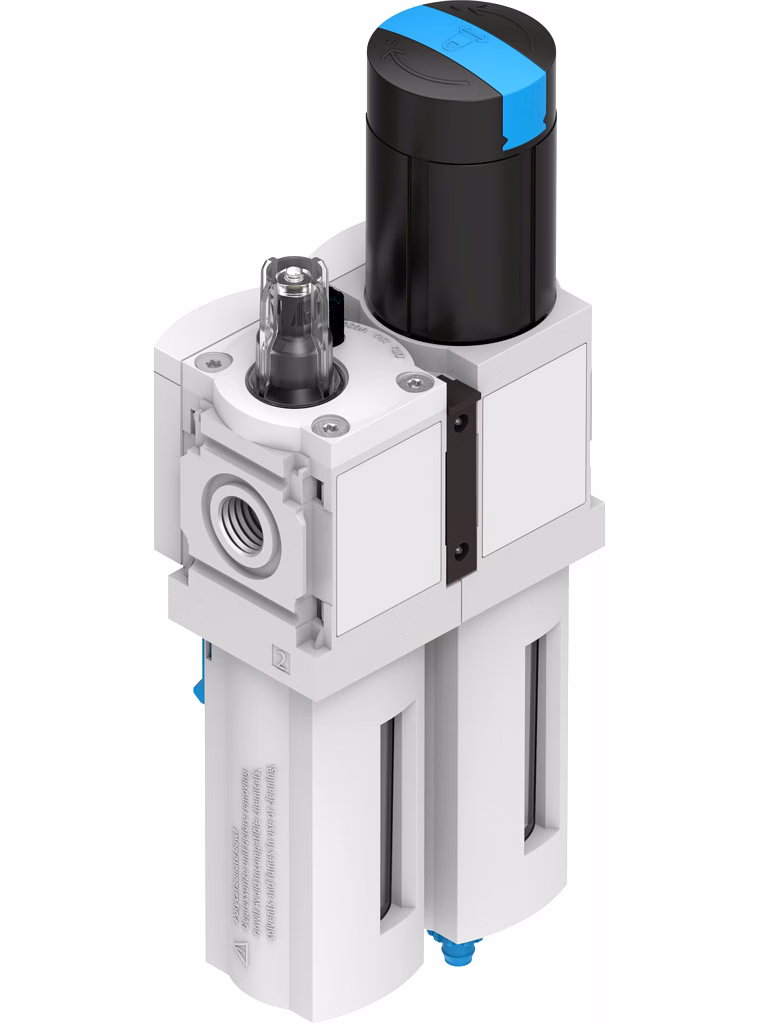

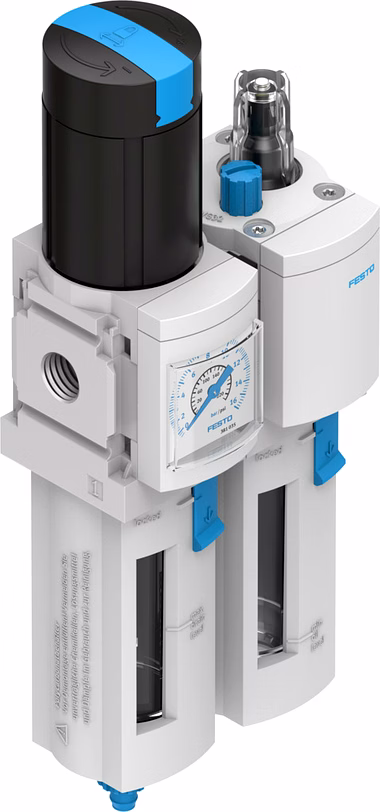

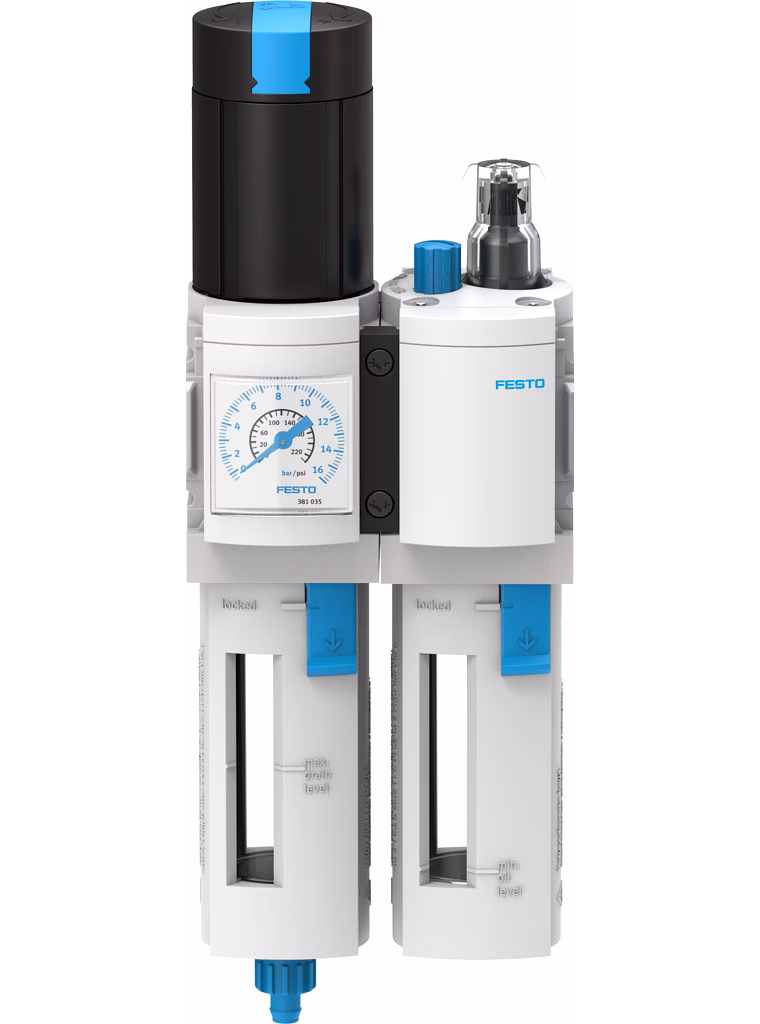

Service unit combination MSB4-FRC
Characteristics
At a glance
Combination of filter regulator and lubricator.
• Grid dimension: 40 mm
• High flow rate and extremely efficient in removing contaminants
• Good regulation characteristics with minimal pressure hysteresis
• Setting values are secured by locking the rotary knob
• Lockable rotary knob
• Two pressure regulation ranges: 0.5...7 bar and 0.5...12 bar
• Optionally with manual or fully automatic condensate drain
• Choice of filter inserts 5 μm or 40 μm
• Available with flow in the opposite direction.
• Product complies with ISO 1179-1 and ISO 228-1
