Inclusive of all taxes
The StackEasy Semi-Electric Stacker SE/SES 1030 is a robust, high-performance material handling solution designed for warehouses, manufacturing units, and logistics operations requiring efficient vertical lifting and stacking. With a lifting capacity of 1000 kg and a maximum lifting height of 3000 mm, this semi-electric stacker combines electric-powered lifting with manual maneuverability to deliver reliable and efficient pallet handling. Its 1100 mm fork length and 570 mm fork width support varied pallet sizes, while the sturdy build made from high-quality steel ensures long-lasting stability and durability. Equipped with a powerful 12V 150AH battery and a built-in charger, it guarantees sustained performance with minimal downtime. The ergonomic design featuring smooth outlines enhances operator comfort and safety, while the manual parking brake and substantial wheel dimensions (180x50 mm big wheel, 74x70 mm small wheel) facilitate maneuverability and stable positioning. Ideal for mid-to-high load stacking applications, the StackEasy Semi-Electric Stacker is easily serviceable and designed to meet the demands of busy industrial environments.
Key Features
| Features | Description |
|---|---|
| Load Capacity | 1000 Kg |
| Fork Length | 1100 mm |
| Fork Width (Overall) | 570 mm |
| Lowered Fork Height | 85 mm |
| Maximum Lifting Height | 3000 mm |
| Extended Mast Height | 3570 mm |
| Load Center Distance | 800 mm |
| Self Weight | 430 Kg |
| Big Wheel Size | 180x50 mm |
| Small Wheel Size | 74x70 mm |
| Parking Brake | Manual |
| Battery | 12V 150AH, 1.5 Kw, 45 Kg |
| Built-in Charger | Yes |
| Material | High Quality Steel |
| Design | Smooth, Robust and Classical |
| Attributes | Description |
|---|---|
| Model Number | SE/SES 1030 |
| Overall Dimensions (LxWxH) | 2080x1720x770 mm |
| Lift Type | Semi-Electric |
| Operation Type | Electric Lifting with Manual Propulsion |
| Battery Voltage & Capacity | 12V 150AH |
| Motor Power | 1.5 Kw |
| Battery Weight | 45 Kg |
| Maneuverability | Manual steering with large and small wheels |
| Brake Type | Manual Parking Brake |
| Intended Use | Pallet lifting and stacking in warehouses and industrial settings |
| Safety Features | Manual parking brake, stable steel frame |
| Maintenance | Durable, easily serviceable design |
| Additional Features | Built-in battery charger |
| Color | Insufficient Information |
| Manufacturer | Insufficient Information |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum load capacity is 1000 kilograms.
Yes, it has a maximum lifting height of 3000 mm suitable for mid-height stacking tasks.
Yes, the StackEasy Semi-Electric Stacker features a built-in charger for convenient battery charging.
It is powered by a 12V 150AH battery with a motor of 1.5 Kw output.
The parking brake is manual, providing secure stationary positioning.
The self weight of the StackEasy Semi-Electric Stacker is 430 Kg.
Yes, it has a big wheel size of 180x50 mm and small wheels of 74x70 mm, ensuring stable and smooth movement.

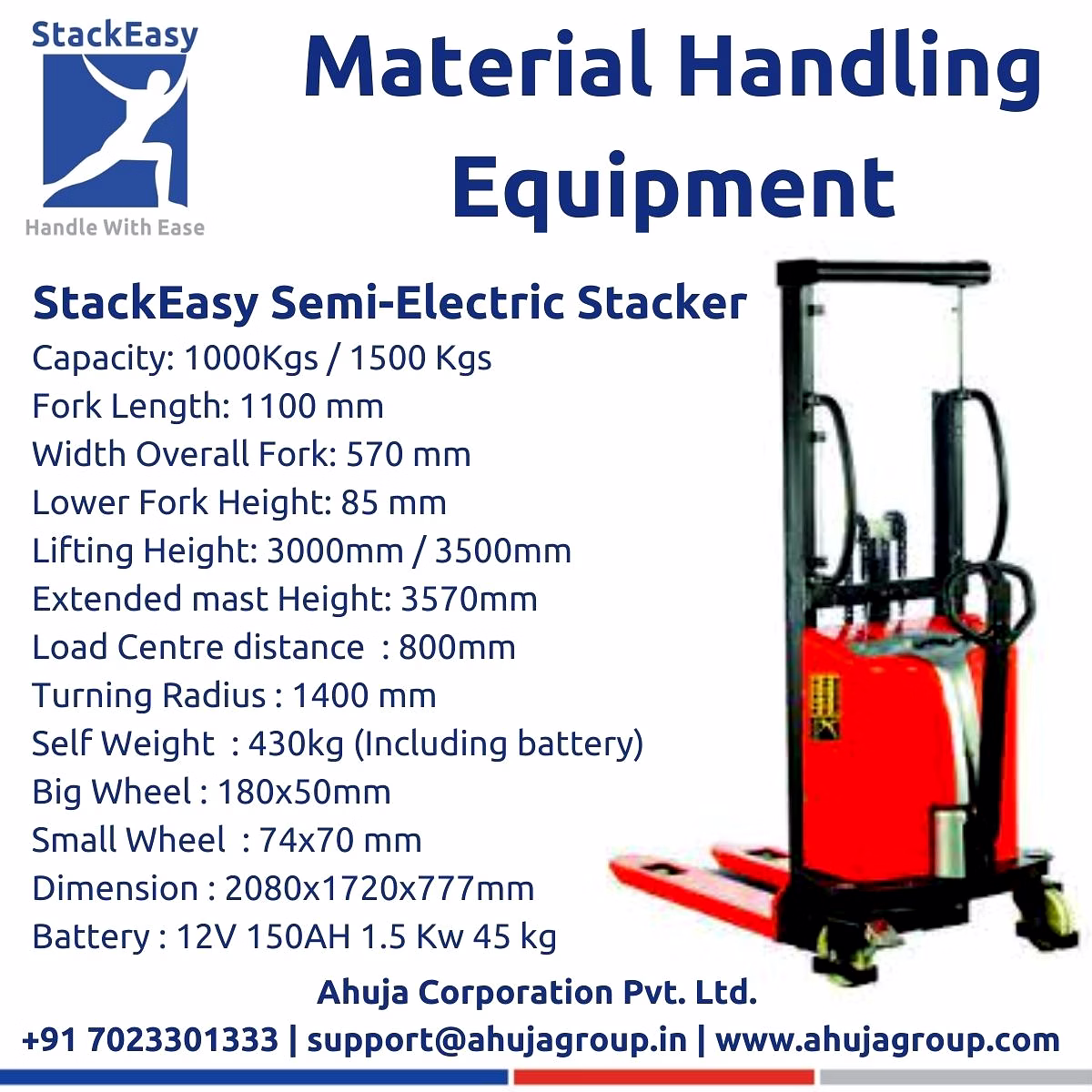

StackEasy Semi-Electric Stacker
SE/SES 1030
Capacity :- 1000Kg
Fork Length:- 1100MM
Width Overall Fork:-570MM
Lower Fork Height;- 85MM
Lifting Height:- 3000MM
Extended mast Height- 3570
Load Center distance;-800MM
Self Weight;- 430Kg
Big Wheel;- 180x50 MM
Small Wheel :-74x70MM
Dimension ;- 2080x1720x770MM
Parking Brake;- Manual
Battery;- 12V 150AH 1.5 Kw 45 Kg
Strong, robust and classical design
Has an appealing look .
The smooth outline makes it stand out from traditional stacker.
Made of high quality steel to ensure stability and strength.
Durable and easily serviceable.
Easy to operate.
Built-in charger.
Kindly Check the video link for StackEasy Semi - Electric Stacker -*****
