Our Products
Showing 1-6 of 6 products

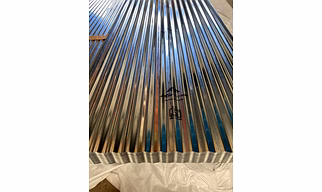

GC / GI SHEETS
Features
- -Galvanized coating for corrosion resistance
- -Variety of sizes available for different applications
- -Strong and sturdy construction for long-lasting performance
- -Suitable for various industrial sectors
- -Manufactured by AVREX INTERNATIONAL, ensuring top quality
COLOUR COATED STEEL SHEETS
COLOUR COATED
COILS PPGL (Pre-Painted Galvalume)
|
Parameter |
Specification |
|
Technical
Standard |
Base Substrate:
IS 15961 Colour Coated: IS 15965 |
|
Grade |
250 to 550 MPa (as
per customer requirement) |
|
Thickness |
0.20 mm – 1.5 mm
(Total Coated Thickness) |
|
Width |
Up to 1550 mm |
|
Al-Zn Coating |
150 – 200 g/m² |
|
Color Options |
Blue, White, Green,
Grey, Brown & Red. |
|
Paint System |
RMP, SMP, SDP &
PVDF |
|
Top Side Coating |
Primer + Polyester
Paint Coating (Min. 25 microns) |
|
Back Side
Coating |
Primer Epoxy (Min.
10 microns) |
|
Coil Weight |
3 – 8 Tons per Coil |
|
Salt Spray Resistance |
≥ 1000 Hours (with
SDP / PVDF Paints) |
|
SRI Value |
≥ 80 (Subject to
Shade Specific) |
COLOUR COATED
COILS PPGI (Pre-Painted Galvanized Iron)
|
Parameter |
Specification |
|
Thickness (mm) |
0.30 – 0.80 mm |
|
Width Range |
1000 – 1250 mm |
|
Width Tolerance |
±0 mm |
|
Grade |
250 to 550 MPa (as
per customer requirement) |
|
ZM Coating |
ZM 80 – ZM 200 |
|
Paint Type |
RMP / SMP / SDP /
PVDF |
|
Top Coat – DFT
(µ) |
5µ Primer + Up to 20µ
* |
|
Bottom Coat –
DFT (µ) |
5µ Primer + 5µ * |
VERTICAL WOODEN CUTTING BANDSAW
VERTICAL BANDSAW
|
Parameter |
AIVB-24 |
AIVB-30 |
AIVB-36 / 39 |
AIVB-42 |
|
Dia of Saw Wheel |
24" |
30" |
36" /
39" |
42" |
|
Table Size |
24" ×
24" |
30" ×
30" |
42" ×
42" |
42" × 42" |
|
Max. Cutting
Height |
18" |
21" |
24" |
24" |
|
Required Power |
5 / 7.5 HP |
10 HP |
10 HP / 12.5 HP |
15 HP |
|
Speed of Saw
Wheel |
600 RPM |
600 RPM |
540 RPM |
540 RPM |
SINGLE GIRDER EOT CRANE
SINGLE GIRDER EOT CRANE
|
Parameter |
Details |
|
Capacity Range |
Available from 1 Ton to 15 Ton lifting capacity |
|
Span |
Customizable as per customer requirements |
|
Lifting Height |
Can be provided as per application needs |
|
Duty Classification |
Designed in accordance with IS 3177 standards (Equivalent
to M3 – M8 Duty Class) |
|
Feature Options |
Available with Double Hoist and Dual Speed configurations |
|
Motor |
Squirrel Cage Induction Hoisting Motors equipped with
inbuilt fail-safe brakes for hoisting, cross travel, and long travel
operations. All motors comply with B/F insulation class. |
|
Power Supply System |
C-Rail Festoon System or Drag Chain arrangement for cross
travel power supply. DSL system used for long travel electrification. Cable
ducts provided for panel-to-motor connections. |
|
|
|

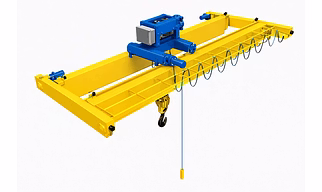

DOUBLR GIRDER EOT CRANE
For Double
Girder EOT Crane
|
Parameter |
Details |
|
Capacity Range |
Available from 1
Ton up to 100 Ton lifting capacity |
|
Span |
Custom-designed as
per customer requirements |
|
Lifting Height |
Provided according
to application specifications |
|
Duty
Classification |
Equivalent to M3 to
M8 Duty Class as per IS 3177 standards |
|
Feature Variants |
Available with
Double Trolley and Auxiliary Hoisting Arrangement |
|
Motor |
Squirrel Cage
Induction Hoisting Motors with inbuilt fail-safe brakes for hoisting, cross
travel, and long travel operations. All motors are provided with B/F
insulation class. |
|
Power Supply
System |
C-Rail Festoon
System or Drag Chain for cross travel power supply. DSL System provided for
long travel electrification. Cable ducts supplied for panel-to-motor
connections. |
|
|
|
PORTABLE WOODEN CUTTING BANDSAW
PORTABLE SAWMILL
|
Parameter |
AIPBH-22 |
AIPBH-24 |
|
Dia of Saw Wheel |
22" |
24" |
|
Max. Cutting
Dia. |
22" |
30" |
|
Max. Sawing
Length |
12' |
12' |
|
Length of Track |
16' |
16' |
|
Power Type |
Electric /
Gasoline |
Electric /
Gasoline |
|
Required Power |
7.5 / 10 HP |
10 HP |
|
Up & Down
Gear Motor |
1 HP |
1 HP |
|
Speed of Saw
Wheel |
720 RPM |
720 RPM |
