Shelter Air Conditioning – Stainless Steel HVAC Module

Shelter Air Conditioning (Cooling System) by FlaktGroup is a packaged HVAC unit engineered for the thermal management of field shelters and remote industrial enclosures. Built on a stainless-steel chassis with a corrosion-resistant exterior shell, the system is specifically designed for exposed or humid environments where salt spray and humidity compromise standard mild-steel units. The architecture provides integrated cooling through direct-expansion (DX) or chilled-water interfaces, maintaining climate stability for power electronics and telecom equipment within field huts. Units are delivered on skids with protective cladding and sealed vents for transit integrity. Supply readiness includes lot-linked technical specifications and quality inspection reports, ensuring the unit meets the safety standards required for cross-border procurement and rapid shelter commissioning in remote or coastal installations.

Key Features

• Stainless-steel enclosure → prevents structural corrosion in high-humidity or coastal sites, reducing long-term cabinet maintenance.
• Packaged HVAC configuration → minimizes field piping and control wiring requirements for immediate "plug-and-play" site commissioning.

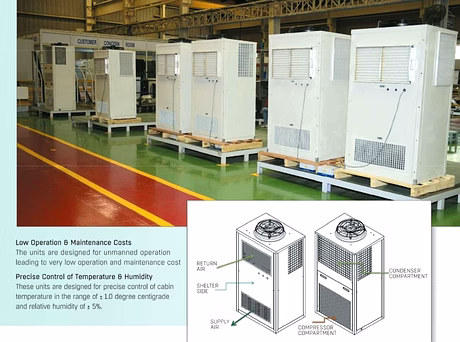

• Skid-mounted delivery → maintains unit mechanical alignment during transport and simplifies site placement via forklift or crane.

Technical Attributes

• Cabinet Material: Stainless steel exterior → selection parameter for corrosive field environments.
• Cooling Medium: DX or Chilled-water options → selection for matching site utility availability.
• Operating Ambient: 0–45°C rated → defines the allowable field operating envelope without derating.
• Control Interface: Embedded thermostat + alarm contacts → supports remote shelter automation integration.

Structural Rationale and Material Engineering of Stainless Shelter HVAC Units

The technical framework of the Shelter Air Conditioning - FlaktGroup utilizes a high-grade stainless-steel exterior shell (typically AISI 304 or 316L) to provide a robust enclosure resistant to the galvanic attack common in offshore and maritime environments. Internal structural members are constructed from welded stainless-steel frames to maintain cabinet stiffness under the high G-loads experienced during transport to remote field sites. This structural reasoning is vital; if a cabinet flexes during transit, it can lead to "capillary tube breakage" in the refrigeration circuit, resulting in a total loss of cooling capacity upon site startup. The HVAC subsystem is decoupled from the control compartment via a thermal barrier, which prevents electrical heat from the power cabinet from impacting the sensible cooling output. Every unit undergoes an operational burn-in and a high-pressure nitrogen leak test, with results recorded per serial number. Failure to use stainless steel in coastal shelters leads to "pitting corrosion" within 12–18 months, which breaches the enclosure and allows dust and salt to reach sensitive power electronics, effectively decommissioning the entire shelter.

Functional Performance and Environmental Efficiency in Field Deployments

Operational efficiency is achieved through a packaged airflow design that can be tuned to create positive-pressure ventilation within the field shelter. This is a critical operational standard for preventing the ingress of abrasive dust and sand into the enclosure. The DX coil sizing is engineered to balance face velocity with refrigerant charge, ensuring stable leaving-air temperatures even under varying external load conditions. Thermal management includes a microprocessor-based controller that executes a soft-start sequence for the fans and compressor; a failure to implement soft-starts on remote shelters often leads to "voltage dip" events on the localized solar or generator supply, causing nearby communications gear to reboot. Mechanical noise is minimized through the use of low-speed fans with vibration-isolated brackets, supporting installations near sensitive monitoring stations. The integrated alarm contacts provide remote telemetry for "high temperature" and "fan failure" events, enabling B2B facility managers to dispatch maintenance teams before the shelter equipment enters a thermal shutdown state. This systematic approach ensures the HVAC unit serves as a durable and reliable infrastructure component for long-term field operation.

Logistical Readiness and Cross-Border Standards for Shelter Cooling

Designed for remote telecom huts, portable control rooms, and field enclosures, the FlaktGroup Shelter AC is configured for the logistical requirements of global project supply. Units are delivered on skids with integrated fork pockets and lifting eyes to facilitate safe handling in areas with limited site infrastructure. For international procurement, supply-readiness is documented through serial-numbered test certificates and factory inspection reports that facilitate customs validation and regulatory compliance. Export-ready documentation include unit configuration dossiers and terminal pinout diagrams provided with each consignment. Packaging utilizes sealed vents and protective cladding to prevent environmental contamination of the evaporator coils during long-distance multimodal transport. OEM private-label finishing and labeling are supported under production batch controls, ensuring the unit aligns with the technical branding requirements of shelter integrators. This high-authority documentation ensures that procurement teams receive verified, deployment-ready hardware that meet the rigorous environmental and safety performance standards required for international field infrastructure projects.
