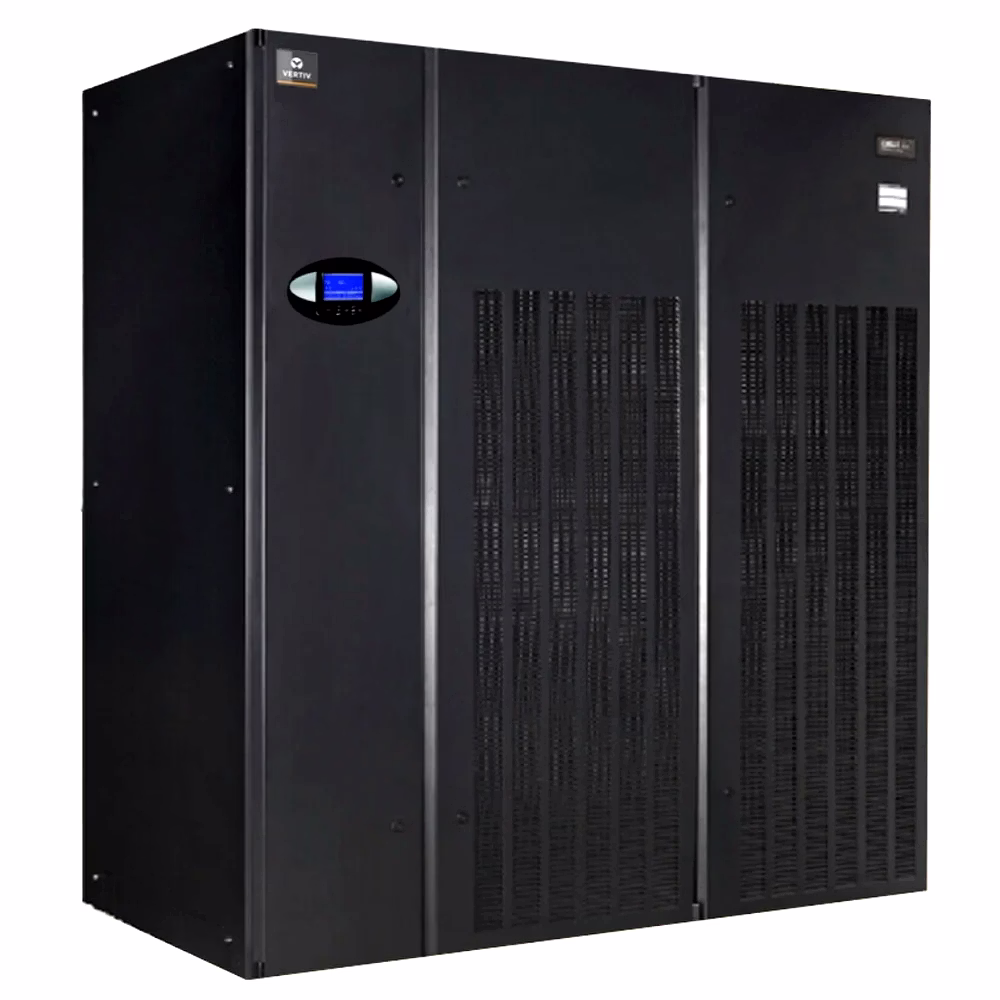

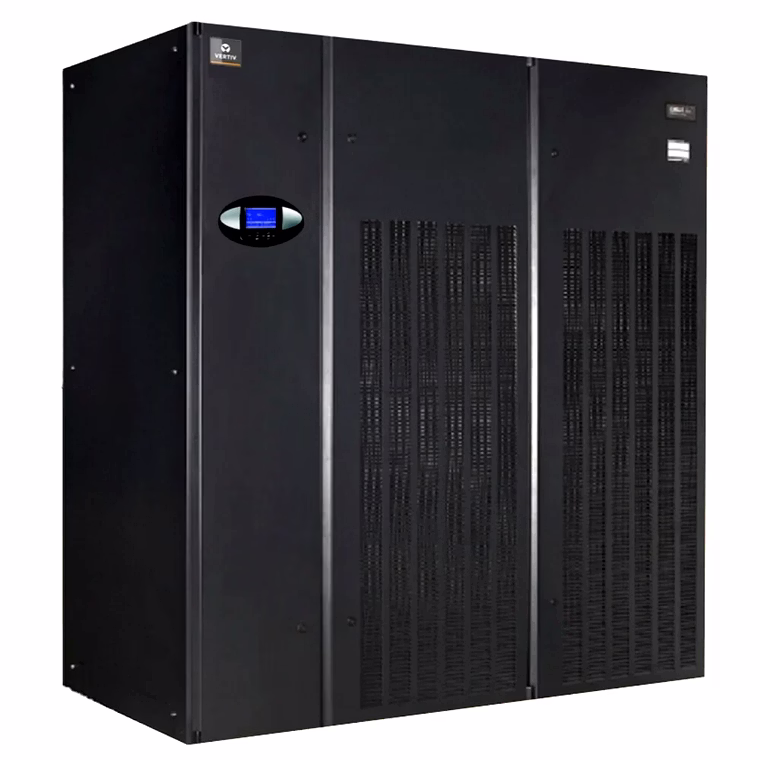

20kW To 100kW Single Phase Liebert PeX EC – Precision Cooling Module

20kW To 100kW Single Phase Liebert PeX EC is a variable-capacity cooling module engineered for precision thermal management in controlled-environment applications with single-phase power constraints. Integrating electronically commutated (EC) fans and digital compressors, the unit architecture delivers stable temperature and humidity control across the 20–100 kW band. The design emphasizes energy efficiency at partial loads and features a compact footprint to maximize facility floor space. Units are skidded for safe handling and supplied with factory test reports and pre-commissioning checklists. Supply-readiness is managed through functional loop validation and electrical verification, addressing the requirements of facility managers seeking documented reliability for small data halls and laboratory suites requiring rapid site integration and institutional asset registration.

Key Features

• EC-driven variable fans → utilizes electronically commutated motors to provide modulated airflow and significantly reduce energy consumption during part-load cycles.
• Digital compressor modulation → features precise capacity control to maintain narrow temperature windows and minimize compressor cycling for extended service life.
• Integrated HMI and BMS interface → provides real-time telemetry and open communication protocols (Modbus/BACnet) for seamless integration into building automation.

Technical Attributes

• Capacity Range: 20–100 kW → selection parameter based on the sensible and latent heat-load calculation of the served space.
• Power Configuration: Single-Phase → determines suitability for facilities with limited 3-phase infrastructure or localized equipment rooms.
• Refrigerant Logic: Low-GWP Options → selection parameter for ensuring compliance with regional environmental and safety regulations.
• Serviceability: Front-access Panels → selection parameter for reducing maintenance duration and simplifying filter and compressor exchange.

System Architecture and Thermal Control Logic of the Liebert PeX EC

The technical framework of the 20kW To 100kW Single Phase Liebert PeX EC utilize a microprocessor-governed refrigeration cycle where EC fans and variable-speed compressors are synchronized to the served space demand. The structural reasoning for the EC motor technology is to provide "stepless control" of the airflow; a failure in the fan modulation logic—due to sensor drift—leads to "static pressure instability," resulting in localized hotspots and potential server CPU throttling. measurement physics rely on high-sampling-rate temperature and humidity sensors located in the return air path. A failure in the dehumidification logic—due to localized coil icing—leads to "humidity breakthrough," manifesting as condensation on sensitive server components—a failure mode that decommissions the IT node. Quality consistency is managed through factory-verified PID loop tuning and leak tests of the refrigerant circuits. The internal layout utilizes segregated electrical and wet compartments to prevent "moisture migration" from the evaporator to the logic boards, ensuring the cooling unit serves as a stable environmental asset for the facility operator.

Functional Performance and Operational Efficiency in Data Halls

Operational efficiency is achieved through the system’s ability to optimize energy draw relative to the active heat load, an essential operational standard for small data centers. functional performance centers on the unit’s thermal stability; if the unit detects a compressor failure through its monitoring interface, it triggers a diagnostic alarm and initiates a fail-safe mode. In a real operational scenario, a failure in the condensate management system—due to pump fatigue or clogged drains—leads to internal overflow; the PeX EC utilizes integrated moisture sensors to execute a hard shutdown before water reaches the electrical sub-chassis. Thermal management of the electronics is critical; the unit features heat-spreading enclosures to protect the ADCs from the high temperatures of unconditioned plant rooms. The modular compressor packs and accessible panels effectively lower the mean time to repair (MTTR). By providing a documented baseline of cooling capacity and efficiency upon commissioning, the operator effectively improves the facility's situational awareness, allowing for informed energy management and lifecycle planning.

Institutional Deployment and Logistical Readiness for Facility rollouts

Designed for precision cooling in laboratory suites, commercial process rooms, and small data halls, the Liebert PeX EC is configured for the logistical requirements of multimodal multi-site procurement. Units ship on reinforced pallets with internal rigid bracing and sealed covers to protect the sensitive coils and electronics from mechanical impact and moisture during transit. Failure to implement shock-mitigating packaging can lead to "coil cracking" or microscopic leaks in the refrigerant piping, manifesting as high-pressure alarms upon site startup. For international procurement, supply-readiness is supported through lot-specific test certificates and technical dossiers that facilitate customs review and institutional asset registration (CE/UL). Export-ready documentation include unit configuration snapshots and wiring diagrams provided with each shipment to facilitate rapid site integration. Packaging utilize vapor-barrier liners to prevent oxidation of the terminal contacts during maritime freight. OEM branding and custom faceplate options are available for system builders requiring branded cooling suites. This high-authority approach ensure procurement teams receive verified, installation-ready energy assets that meet the performance and safety requirements of global manufacturing and healthcare markets.
