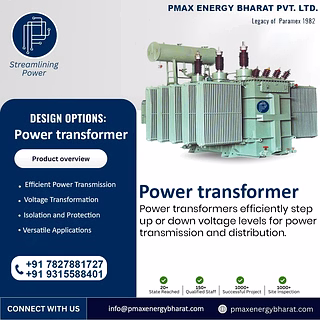

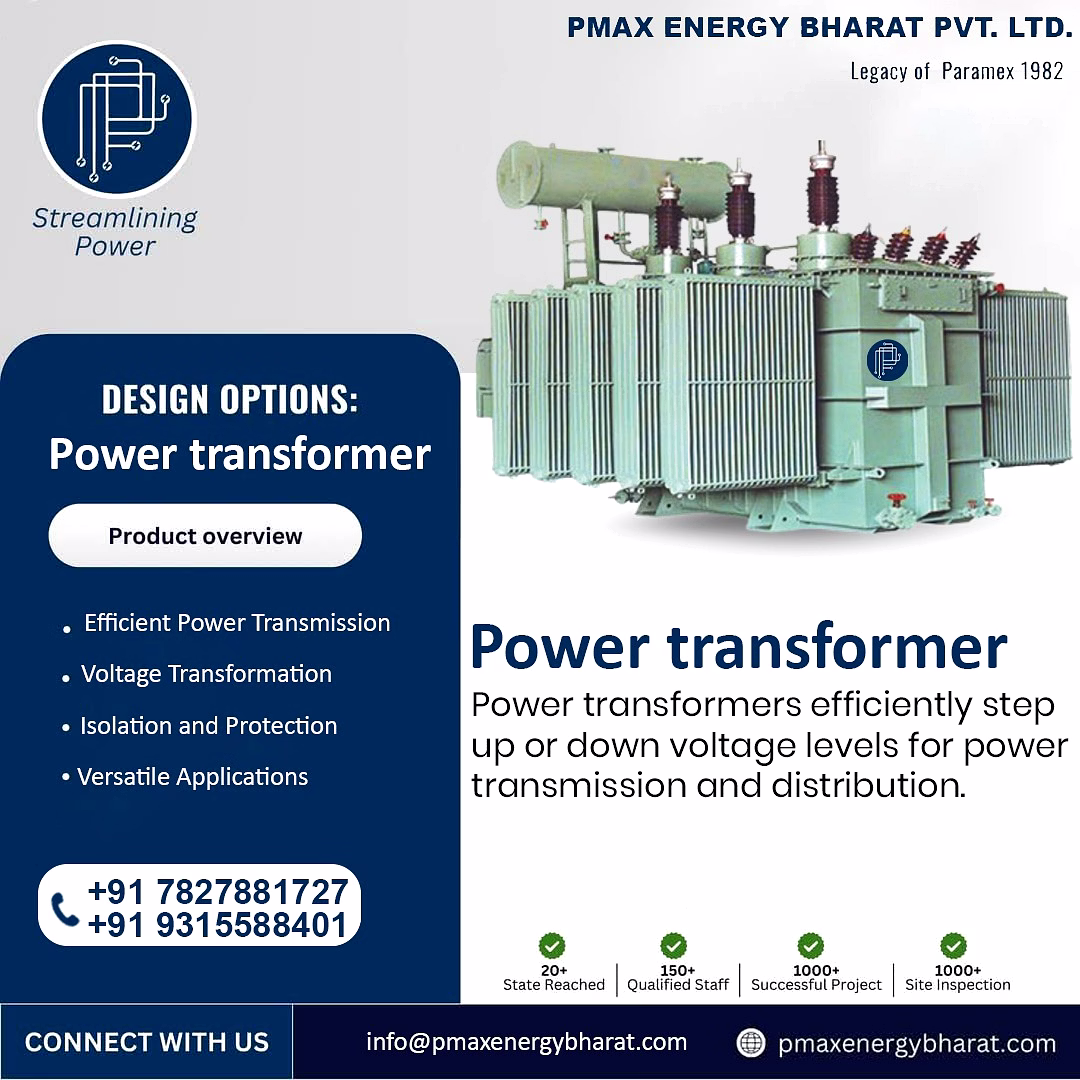

Power transformers are essential electrical devices designed to transfer electrical energy from one circuit to another at different voltage levels efficiently. Specifically engineered for high-capacity electrical distribution, these transformers operate in the range from 5MVA 33KV up to 25MVA 66KV and are ideal for primary distribution networks. They facilitate voltage step-up and step-down processes, enabling seamless energy transmission between generating stations and distribution networks. Our oil-cooled (ONAN) 3-phase power transformers provide reliable performance with enhanced cooling efficiency, ensuring durability and operational stability under heavy load conditions. These transformers are crucial components in electrical substations and power plants, optimizing the transmission and distribution of electricity across grids.
Key Features
| Features | Description |
|---|---|
| Power Range | 5MVA to 25MVA |
| Voltage Rating | 33KV to 66KV |
| Cooling Type | Oil Cooled (ONAN) |
| Phase | 3 Phase |
| Usage | Step-up and step-down voltage in distribution networks |
| Application | Transmitting electrical energy between generators and primary distribution circuits |
| Construction | Robust design with high insulation properties |
| Efficiency | High electrical efficiency for minimal transmission losses |
| Durability | Designed for heavy load and long-term operation |
| Industry Use | Power plants, electrical substations, industrial distribution systems |
| Attributes | Description |
|---|---|
| Capacity Range | 5MVA to 25MVA |
| Voltage Levels | 33KV, 66KV |
| Cooling Method | Oil Natural Air Natural (ONAN) cooling |
| Phase Type | 3 Phase |
| Insulation Medium | Mineral Oil |
| Core Type | Silicon Steel Core |
| Frequency | 50 Hz (standard for Indian grid) |
| Standards Compliance | Constructed as per IS 2026/IEC standards |
| Impedance Voltage | Typically 6-10% |
| Tap Changer | Provided as per customer requirement (on-load or off-load) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This power transformer supports voltage ratings from 33KV up to 66KV and capacity ranges from 5MVA to 25MVA, catering to medium to high voltage distribution networks.
These power transformers use oil cooling with the ONAN (Oil Natural Air Natural) method, which provides efficient heat dissipation for continuous operation.
Yes, these transformers are designed for both step-up and step-down voltage applications in electrical distribution and transmission networks.
The transformers are insulated using mineral oil, which ensures effective electrical insulation and cooling performance.
Yes, the transformers are manufactured in compliance with Indian Standard IS 2026 and IEC norms, ensuring quality and reliability.
Yes, tap changers can be provided either as on-load or off-load type depending on customer requirements.
Country Of Origin: India
A power transformer is a type of transformer that is used to transmit electrical energy between the distribution primary circuits and the generator. These transformers are used in distribution networks to connect step-down and step-up voltages.
