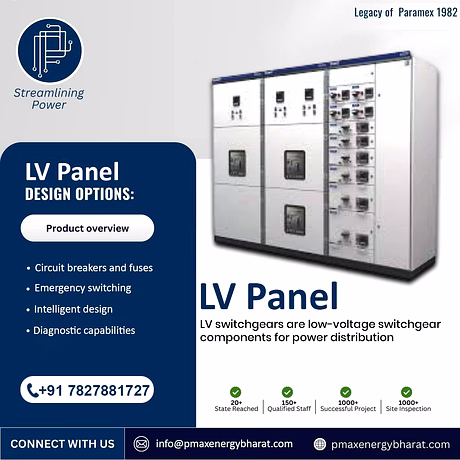

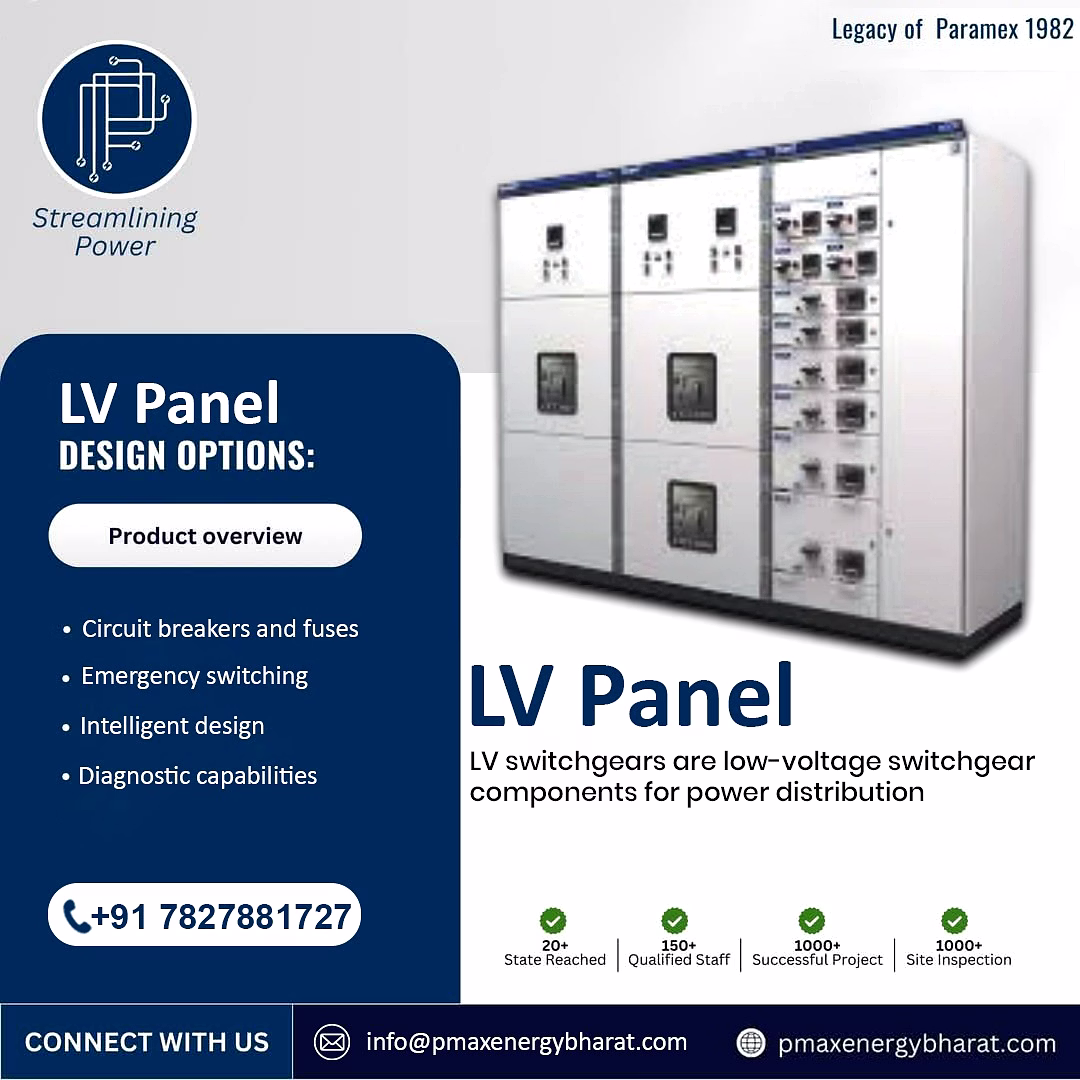

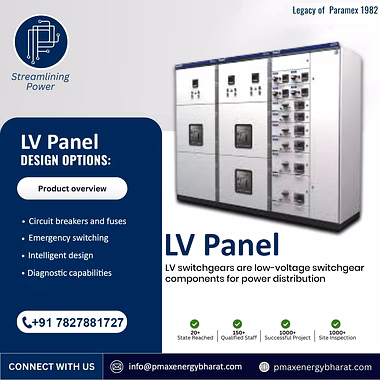

The LV PANEL is a robust Low Voltage electrical switchboard designed to efficiently manage and distribute electrical power at voltages up to 1000V within commercial, industrial, or large residential buildings. This switchgear acts as a centralized control hub, integrating critical safety and operational components such as circuit breakers, fuses, relays, and contactors. It ensures reliable power distribution while protecting electrical circuits from overloads, faults, and short circuits. Engineered for durability and safety, the LV PANEL meets demanding industrial standards, providing seamless integration with existing electrical systems and optimized ease of maintenance. Ideal for electrical contractors, facility managers, and industrial clients requiring superior electrical infrastructure management.
Key Features
| Features | Description |
|---|---|
| Voltage Rating | Up to 1000V AC |
| Components Included | Circuit breakers, fuses, relays, contactors |
| Protection Functions | Overload protection, short circuit protection, fault detection |
| Application | Power distribution and control in buildings and facilities |
| Mounting Type | Wall-mounted or floor-standing options available |
| Material | High-quality, corrosion-resistant metal enclosure |
| Standards Compliance | Complies with IEC and IS electrical safety standards |
| Customizability | Configurations adaptable to specific load and control requirements |
| Maintenance | Easy access panels for routine inspection and servicing |
| Safety Features | Lockable doors, insulated barriers, and clear labeling for safe operation |
| Attributes | Description |
|---|---|
| Max Voltage | 1000 Volts AC |
| Rated Current | Up to 6300 Amps (subject to model) |
| Frequency | 50/60 Hz |
| Enclosure Protection | IP30 to IP54 options available |
| Control Devices | Thermal magnetic circuit breakers, electronic relays |
| Ambient Temperature Range | -5°C to 40°C |
| Installation Location | Indoor use primarily |
| Cooling | Natural air cooling |
| Compliance Standards | IS/IEC 61439, IS 8828 |
| Color | Powder-coated grey or customized |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The LV PANEL is rated to manage electrical power up to 1000 volts AC.
This LV PANEL includes circuit breakers, fuses, relays, and contactors to provide overload and short circuit protection.
Yes, the LV PANEL configurations are adaptable and can be customized to meet specific electrical load and control needs.
The LV PANEL is designed primarily for indoor installation within commercial and industrial buildings.
Yes, the LV PANEL complies with IS/IEC standards such as IS/IEC 61439 and IS 8828 to ensure safety and reliability.
Enclosure protection options include IP30 to IP54, providing different levels of dust and water resistance based on client requirements.
Country Of Origin: India
A Low Voltage (LV) panel, also known as a switchboard or switchgear, is an electrical distribution system that manages and distributes power at low voltages, typically up to 1000V. It acts as a central point for controlling and safeguarding electrical circuits within a building or facility. LV panels contain various components like circuit breakers, fuses, relays, and contactors, working together to ensure safe and reliable power distribution and protection.
