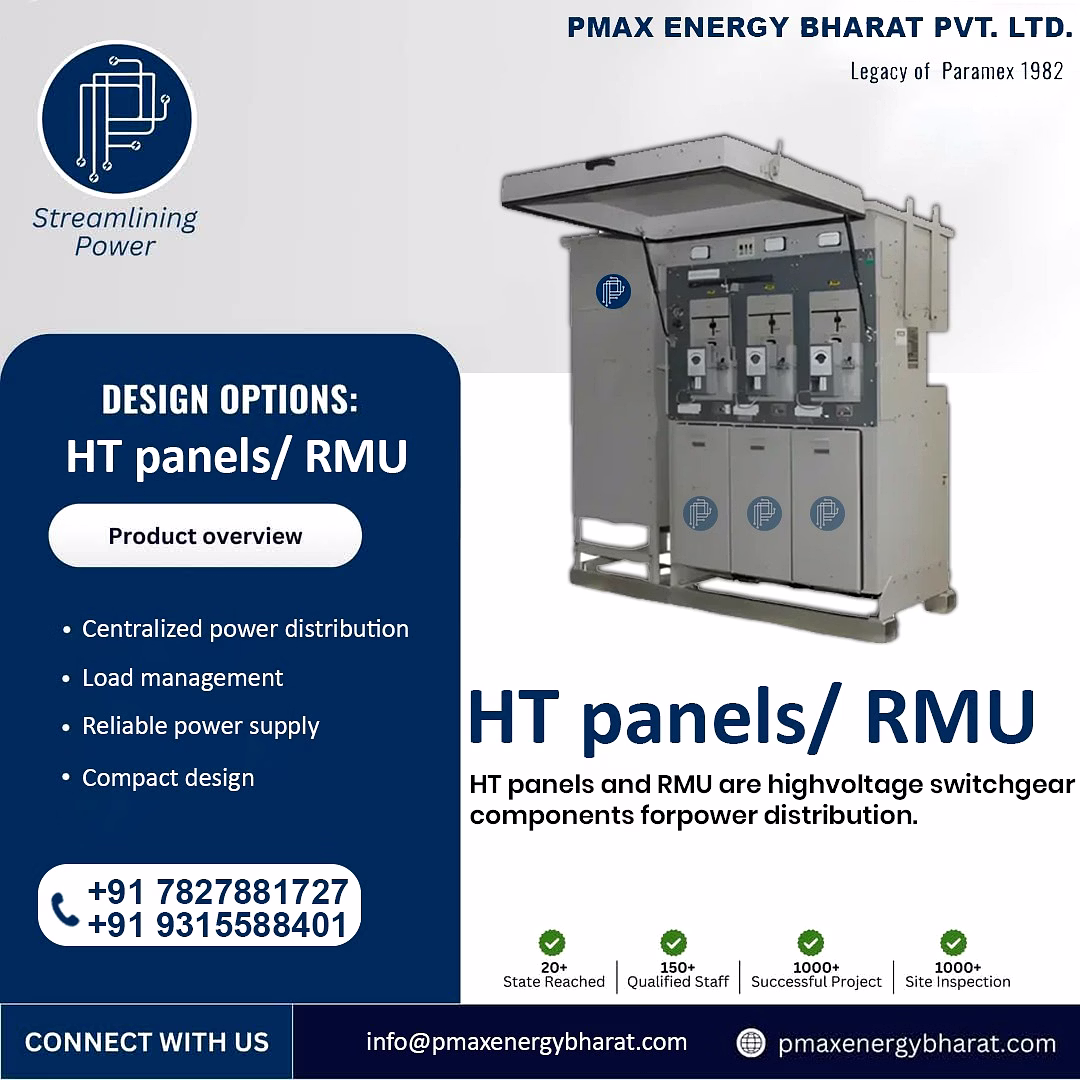

HT Panels / Ring Main Units (RMUs) are essential high-voltage electrical switchgear designed for efficient power distribution and protection in industrial and commercial environments. Operating typically at voltages above 11kV, these panels serve as a centralized hub for managing electrical loads while enhancing system reliability and safety. Equipped with advanced protective devices such as vacuum circuit breakers, relays, and fuses, HT Panels/RMUs safeguard electrical circuits from faults, ensuring minimal downtime and maintenance. Their robust construction supports integration in substations, manufacturing plants, and large commercial facilities, facilitating seamless power management and reducing operational risks. Ideal for businesses seeking durable, reliable, and efficient electrical distribution solutions, these panels comply with industry safety standards and are engineered for long-lasting operation even under harsh electrical load conditions.
Key Features
| Features | Description |
|---|---|
| Voltage Rating | Typically above 11kV, suitable for high voltage industrial applications |
| Protection Devices | Includes vacuum circuit breakers, relays, fuses for reliable fault protection |
| Application | Used in substations, commercial buildings, and large industrial plants |
| Safety | Designed for safe operation with multiple interlocks and fault detection systems |
| Construction | Robust and compact design for easy installation and durability |
| Operation Type | Suitable for both manual and automated power distribution control |
| Maintenance | Low maintenance design with easy access to components |
| Standards Compliance | Manufactured according to IEC and Indian electrical safety standards |
| Scalability | Modular design allowing expansion as per load requirements |
| Attributes | Description |
|---|---|
| Nominal Voltage | 11kV, 12kV, 24kV, 33kV variants available |
| Current Rating | Varies from 400A to 2500A based on model |
| Interrupting Capacity | Up to 25kA rated short circuit withstand |
| Insulation Type | Gas insulated or air insulated options |
| Mounting Type | Indoor and outdoor installation available |
| Standards | IEC 62271-200, IS 13118 compliance |
| Protection Features | Overcurrent, earth fault, overload, and short circuit protection |
| Material | High-quality cold-rolled steel enclosure with powder coating |
| Operating Temperature Range | -10°C to +55°C |
| Control System | Manual, semi-automatic, or fully automatic operation modes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
HT Panels / RMUs incorporate vacuum circuit breakers, protective relays, and fuses that work together to detect and isolate faults ensuring safe and reliable power distribution.
Yes, HT Panels / RMUs are designed for both indoor and outdoor use with appropriate weatherproof and insulating construction options available.
These panels typically cater to voltage levels starting from 11kV and can go up to 33kV depending on model specifications.
HT Panels / RMUs feature modular designs allowing expansion and customization to accommodate growing electrical load demands without replacing the entire setup.
The panels comply with IEC 62271-200 and Indian IS 13118 safety and performance standards for high voltage switchgear.
Country Of Origin: India
An HT (High Tension) panel is a crucial electrical component designed to manage and distribute high-voltage electricity in industrial and commercial settings, typically above 11kV. These panels, often found in substations and large facilities, are essential for safety and efficient power distribution. They incorporate various protective devices like circuit breakers, relays, and fuses to ensure reliable and safe operation.
