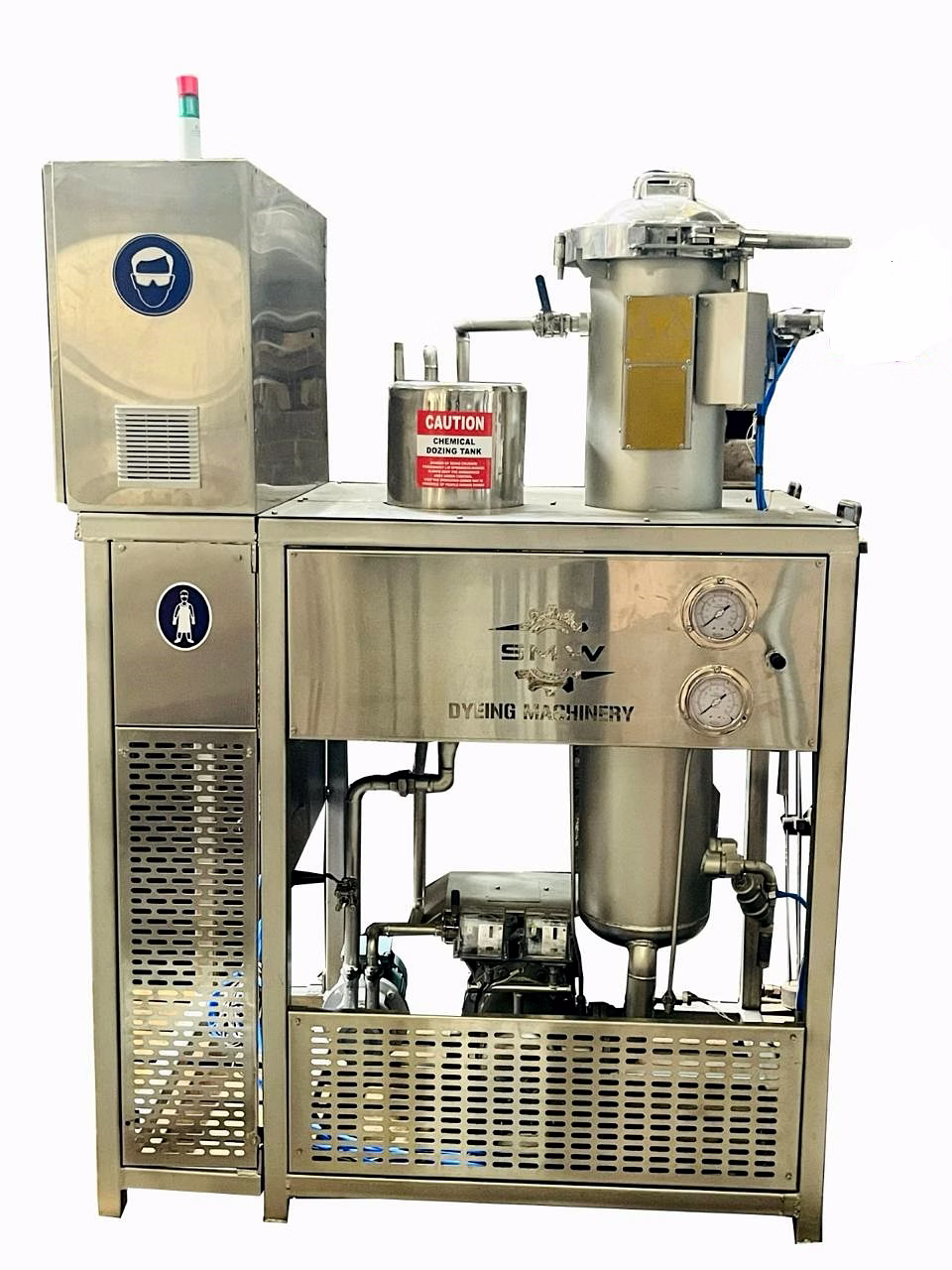

The Multi Pot Zipper Dyeing Machine by SMW Dyeing is an advanced High Temperature High Pressure (HTHP) multi-pot sample yarn dyeing solution designed for precision and versatility in textile dyeing applications. Engineered with AISI SS 316Ti/316L stainless steel, this machine ensures superior corrosion resistance and durability. It features multiple independent dyeing pots to handle various yarn samples simultaneously, making it ideal for silk, polyester, lightweight cotton, wool, and other fibers. Equipped with a turbo pump with variable inverter drive speed for efficient liquor circulation, the machine operates at a maximum temperature of 150°C and pressure up to 6 kg/cm². The fully automatic control panel with SMW dyeing programmer YDC11/PLC and optional touch interface offers precise process control. It includes an innovative air pad system to manually insert air and create static pressure, reducing liquor ratios, and a color addition tank with injection pump for accurate dye liquor dosing. The multi-level liquor ratio (MLR) ranges from 1:4 to 1:16, and the machine incorporates a high-efficiency heat exchanger (optional) to minimize heat loss. With safety features such as pneumatically operated front door locking and human/machine safety interlocks, the dyeing machine provides both operator safety and operational excellence. Suitable for sample dyeing needs across multiple yarn types, the machine supports customization and pan-India delivery, promising high quality and reliability for textile businesses.
Key Features
| Features | Description |
|---|---|
| Material of Construction (MOC) | AISI SS 316Ti/316L stainless steel, highly corrosion resistant |
| Maximum Operating Temperature | 150°C |
| Maximum Operating Pressure | 6 kg/cm² |
| Capacity | Up to 300 grams per pot |
| Heating Rate | Low temperature 2°C per minute / High temperature 1°C per minute |
| Cooling System | Water cooling system |
| Liquor Ratio (MLR) | 1:4 to 1:16 |
| Pump Type | Turbo pump with inverter drive for variable speed (In-Out & Out-In circulation) |
| Control Panel | Fully automatic with SMW dyeing programmer YDC11/PLC, optional touch interface |
| Air Pad System | Manual air injection to create static pressure and reduce liquor ratio |
| Color Addition | Color addition tank with injection pump for precise dye dosing |
| Heat Exchanger | High efficiency, optional (no heat loss to ambient) |
| Drainage Capability | HT Drain allows drainage at 130°C |
| Door Operation | Pneumatically operated front door locking/unlocking |
| Safety | Human/Machine safety interlocks for operational safety |
| Attributes | Description |
|---|---|
| Suitable Fiber Types | Silk, Polyester, Lightweight Cotton, Wool, other fine fibers |
| Number of Dyeing Pots | Multiple (multi-pot design for simultaneous sampling) |
| Panel Board Type | Fully automatic |
| Machine Type | HTHP Multi Pot Sample Yarn Dyeing Machine |
| Brand | SMW Dyeing |
| Machine Body | Horizontal Tubular design |
| Machine Use | Sampling dyeing of yarns individually in one machine |
| Installation | Pan India delivery and customizable per client requirements |
| Additional Accessories | Hydro extractor, hot air drier (optional) |
| Heating Method | Steam or electrical (dependent on customer specification) |
| Control Technology | PLC based with optional touchscreen interface |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the machine features multiple independent dyeing pots enabling simultaneous sampling and dyeing of different yarn types such as silk, polyester, cotton, and wool.
The machine includes pneumatically operated front door locking/unlocking and human/machine safety interlocks to ensure operator safety during high temperature and pressure operations.
Yes, the machine supports a liquor ratio (MLR) adjustable between 1:4 to 1:16 to optimize dyeing efficiency and resource consumption.
The air pad system allows manual air injection to create static pressure inside the dyeing vessel, which helps in minimizing the liquor ratio and improving dye penetration consistency.
Yes, SMW Dyeing offers customization options to tailor the Multi Pot Zipper Dyeing Machine’s features and capacity according to client-specific yarn dyeing requirements.
Country Of Origin: India
HTHP Horizontal Tubular Dyeing Machine, HTHP Vertical Dyeing Machine, HTHP Vertical Tubular Dyeing Machine, HTHP Sample Dyeing Machine, , Yarn Conditioning / HTHP Polyester Yarn Dyeing Machine, Filament Yarn Dyeing Machine, Hthp Vertical Loose Fiber Dyeing Machine,Hydro Extractor, Hot Air Drier and accessories under the brand name of smwdyeing.
We have exclusive range of HTHP MULTIPOT SAMPLE YARN DYEING MACHINES
We have Pan India Delivery for HTHP MULTIPOT SAMPLE YARN DYEING MACHINES
We can customise HTHP MULTIPOT SAMPLE YARN DYEING MACHINES as per your requirement.
We are providing Best Quality in the segment of HTHP MULTIPOT SAMPLE YARN DYEING MACHINES
We have our happy clients Pan India who are completely satisfied with the quality of HTHP MULTIPOT SAMPLE YARN DYEING MACHINES

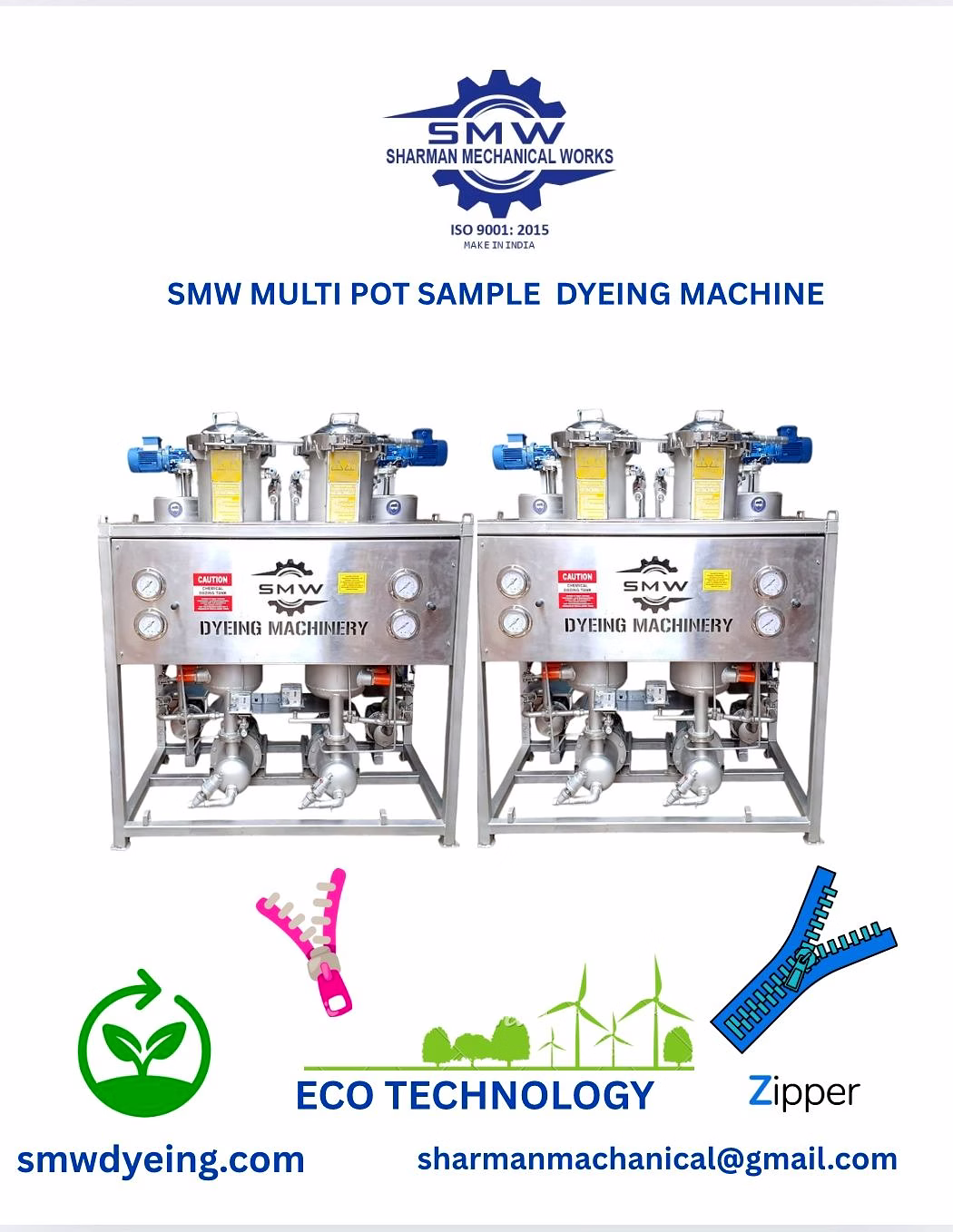

Multi Pot Sample Dyeing MachineTechnical Specification :
Type of Fibers / Fabric : Silk, Polyester, Light weight cotton, Wool etc.
Maximum working temperature : 150°C
Maximum working pressure : 6 kg
Heating Rate : Low temperature 2°C / High temperature 1°C
Cooling Rate : Water cooling system
MOC : SS316
Capacity : to 300gms
Panel Board : Fully automatic
Application : For sampling number of yarns seperately in one machine
Features:
1. Machine body & all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
2. Turbo pump for liquor circulation (In-Out & Out-In) with Inverter drive for varying speed
3. Control panel with SMW dyeing programmer YDC11/PLC & touch interface (Optional)
4. MLR of 1:4 to 1:16
5. Air pad system to insert air manually into the machine to create static pressure and to minimize the liquor ratio
6. Colour addition tank with Injection Pump for dozing the dye liquor into the machine
7. High efficient heat exchanger which has no heat loss to the ambient (Optional)
8. HT Drain - the machine can be drained at 130° C
9. Pneumatically operated front door locking / unlocking
10. Human/Machine safety interlocks
HTHP Horizontal Tubular Dyeing Machine, HTHP Vertical Dyeing Machine, HTHP Vertical Tubular Dyeing Machine, HTHP Sample Dyeing Machine, , Yarn Conditioning / HTHP Polyester Yarn Dyeing Machine, Filament Yarn Dyeing Machine, Hthp Vertical Loose Fiber Dyeing Machine,Hydro Extractor, Hot Air Drier and accessories under the brand name of smwdyeing.
