SHARMAN MECHANICAL WORKS

HTHP Multikies PKGS Dyeing Machine Manufacturer

In the dynamic world of textile manufacturing, efficiency, precision, and sustainability are paramount. Enter the HTHP (High-Temperature High-Pressure) Multikies PKGS Dyeing Machine – a cutting-edge solution engineered to redefine the dyeing process. This state-of-the-art equipment combines advanced technology with eco-conscious design, offering textile industries a versatile and sustainable approach to dyeing fabrics.

Key Features:

HTHP Yarn Dyeing Machine Manufacturer

A HTHP Yarn Dyeing Machine is a machine that is used to change the color of yarn. The machine can be used to dye yarns of any color, and can be used to create multi-colored yarns. The machine is also used to add patterns and designs to yarns.

If you're in the market for a yarn dyeing machine, there are a few things you should keep in mind. First, you'll need to decide what capacity you need - that is, how much yarn you need to be able to dye at one time. Second, you'll need to choose a machine that's able to handle the type of yarn you want to dye. Different machines are designed for different materials, so it's important to get one that's compatible with your yarn. Finally, you'll need to compare prices and choose a machine that fits your budget.

We are known as leading manufacturer of yarn dyeing machine in Delhi

When it comes to yarn dyeing machines manufacturer in Delhi, there are a few different manufacturers to choose from. Some of the most popular brands include Sharman Mechanical Works, Knitmaster, Silver Reed, and Brother. Each one offers a different range of machines, so it's important to compare them before making a decision. Once you've found the perfect machine for your needs, you'll be able to produce beautiful, dyed yarns in no time!

There are many yarn dyeing machine manufacturers in Delhi, each with their own unique process and products. Some of the most popular yarn dyeing machine manufacturer include:

We are known for our high-quality wool yarns that come in a wide variety of colors. They use a special dyeing process that ensures the yarns keep their vibrant colors for a long time. We are specializes in bleaching & dyeing yarns in unique and beautiful color combinations. They have a wide selection of yarns available in both natural and synthetic fibers. We offer a wide range of yarns that are dyed in a variety of vibrant colors. They also offer a custom yarn dyeing service, so you can get your yarns dyed in any color you want.

There are many different yarn dyeing machine manufacturer in Delhi out there, so it's important to find one that's a good fit for your needs. You'll want to consider things like price, quality, customer service, and turnaround time. We're a bit on the pricier side, but their yarn is always top-notch and their customer service is excellent. They usually have a pretty quick turnaround time, too, which is great when you need yarn in a hurry. Whichever yarn dyer you choose, be sure to do your research and pick one that's right for you.

Small production 15 to 30 kg cotton,polyester,viscose ,narrow tape automatic high pressure and high temperature vertical machine for dyeing and bleaching for laboratory or small lots of yarn. used for preliminary dyeing tests on yarn packages, hanks, tops, loose stock fibers, small warp beams, narrow tapes and fabric beams by using inter- changeable spindle carriers - water - energy + savings +? ? Environment high-end quality, cutting-edge sustainable technologies and very low running costs this is our new smdy yarn dyeing machine! Yarn dyeing, reinvented! 50% savings on electric energy 30% savings on water, chemicals and utilities improved yarn dyeing quality faster payback times sustainable yarn dyeing.HTHP Horizontal Tubular Dyeing Machine, HTHP Vertical Dyeing Machine, HTHP Vertical Tubular Dyeing Machine, HTHP Sample Dyeing Machine, , Yarn Conditioning / HTHP Polyester Yarn Dyeing Machine, Filament Yarn Dyeing Machine, Hthp Vertical Loose Fiber Dyeing Machine,Hydro Extractor, Hot Air Drier and accessories under the brand name of smwdyeing.

Smw is a leading manufacturer of Package Dyeing Machines offering complete dyeing and drying solutions for capacities ranging from 1 kg to 2000 kg or more. Our machines are universal – capable of dyeing natural or man-made fibre in a variety of forms.

Our current range of machines is now more eco-friendly, with features like Air Pad system for reduced water consumption and Variable Frequency Drive for greater energy efficiency.

Package Dyeing Machines

The MLR is as low as 1:5 thereby reducing cost of dyeing and effluent treatment. We constantly upgrade our technology in close cooperation with dyers of repute, and today supply dyeing machines that use the latest technology achieved through incorporation of a variety of accessories. Our experience in the field has enabled us to develop various user-friendly machines.

SMW Package Dyeing Machines are manufactured from in SS 316/ SS 316 L /SS 316 Ti as per German manufacturing standards -- pressure kier for static pressure of 4.5 bar and temperature up to 140° C, subjected to a pressure test at 5.85 bar.

Technical Data:

Maximum design pressure 6 bar

Maximum design temperature 160°C

Heating gradient 25°C - 130°C approx. at 5°C/min. (Dry saturated steam pressure at 7 bar)

Cooling gradient 130°C - 85°C approx. at 3.5°C/min. (Cold water of 25°C at 3 bar)

Technical Data:

Capacity* Kgs. Pump Kw Length Width Height

20 3.7 6 1 1.8

40 3.7 6 1 1.8

60 5.5 6 1 1.8

80 7.4 6.5 1 2.2

100 9.3 7 1 2.5

120 11 7 1.5 1.8

160 11 7 1.5 2.2

200 15 7 1.5 2.5

240 18.5 7.5 2.75 1.8

360 22 7.5 2.75 2.2

400 22 8 2.75 2.5

480 30 8 4 2.5

600 37 8 4 2.8

HTHP Horizontal Tubular Dyeing Machine, HTHP Vertical Dyeing Machine, HTHP Vertical Tubular Dyeing Machine, HTHP Sample Dyeing Machine, , Yarn Conditioning / HTHP Polyester Yarn Dyeing Machine, Filament Yarn Dyeing Machine, Hthp Vertical Loose Fiber Dyeing Machine,Hydro Extractor, Hot Air Drier and accessories under the brand name of smwdyeing.

SMW Loose Fibre dyeing proposes at least 2 different types of machinery:

- which is the traditional vertical kier dyeing machine suitable for all kind of fibre. This machine is multipurpose as it can dye also Packages, Tops, Hank, Tow and Beams.

- the BigForm system, that looks like a vertical kier dyeing machine with the difference that the loose fibres are loaded into modular baskets of 100 kg, 200 or 500 kg each. These baskets are specially designed for achieving the best possible dyeing and washing performances

Every type of the above machines has its own characteristics so we invite you to visit the detailed pages of each type in order to evaluate which one is more suitable for your type of business.

We really had to reset all the information we had collected along more than 60 years of brilliant and experienced activity in the yarn dyeing industry and start thinking out of the box on something different, something that not necessarily had to be stuck with the common sense of the industry.

Today, after 3 years of industrial testing led by our Engineering Team, SMW is finally ready with a new line of package dyeing machines that is the very essential summary of our devotion to both the community and the environment.

Sharman Mechanical Works is a leading HTHP Filament Yarn Dyeing Machine Manufacturers in Delhi. This machine is used to dye Filament Yarns. The machine consists of a dye vat, a dye pump, and a yarn tensioner. The yarn is fed through the dye vat and the dye pump, which pump the dye through the yarn. The yarn tensioner keeps the yarn under tension so that the dye is evenly distributed throughout the yarn. Our company is located in India. We have a long history of experience in the design and manufacture of dyeing machines, and we have a deep understanding of the unique challenges involved in filament yarn dyeing. As a result, they are able to produce machines that are reliable, efficient, and capable of producing high-quality results.

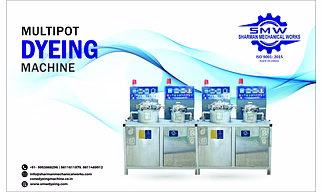

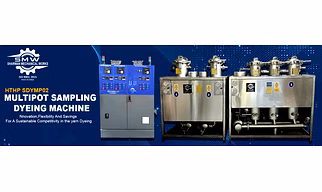

SMW Multi Pot Sample Dyeing Machine is ideal to run 2, 4, 6, & 8 Pots coupled to each other, dyeing yarns of same colour or running individually to facilitate dyeing yarn of different colours simultaneously. This is very useful for standardizing the recipes of dyeing before batches are taken in bulk. This avoids trial and error methods, hence saves time and resources utilized. Each pot has a range from 100 gms. To 1.5 kg. per batch as per the requirement. The apparatus allows sampling trails in laboratory. Each vessel can be charged with different type of materials. Each kier has its own pump and controller. Main feature of this machine is a perfect reproducibility from laboratory to bulk production. The machines are available with different levels of automations. The machine is suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, Zipper, Hanks, Ribbons, Tops & Loose Fiber.

Multi Pot Sample Dyeing MachineTechnical Specification :

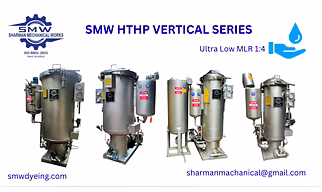

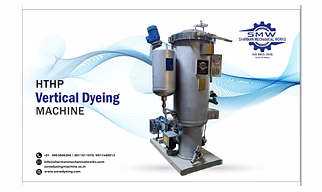

HTHP vertical dyeing machines are faster growing in the markets. We are manufacturing high temperature vertical yarn dyeing machine with latest quality and trending designed, best selling machine on textile company with highly experienced in yarn dyeing machine. Sharman Mechanical Works are manufacturers, suppliers and exporters of vertical yarn dyeing machine with long lasting features and international standards. HTHP vertical yarn dyeing machines have been creating for Fabric and yarn dyeing such as Ribbon, Top, Hank, and Zippers. Our machine is dyeing 10 to 1500kg at a one time.

HTHP Horizontal Tubular Dyeing Machine, HTHP Vertical Dyeing Machine, HTHP Vertical Tubular Dyeing Machine, HTHP Sample Dyeing Machine, , Yarn Conditioning / HTHP Polyester Yarn Dyeing Machine, Filament Yarn Dyeing Machine, Hthp Vertical Loose Fiber Dyeing Machine,Hydro Extractor, Hot Air Drier and accessories under the brand name of smwdyeing.
