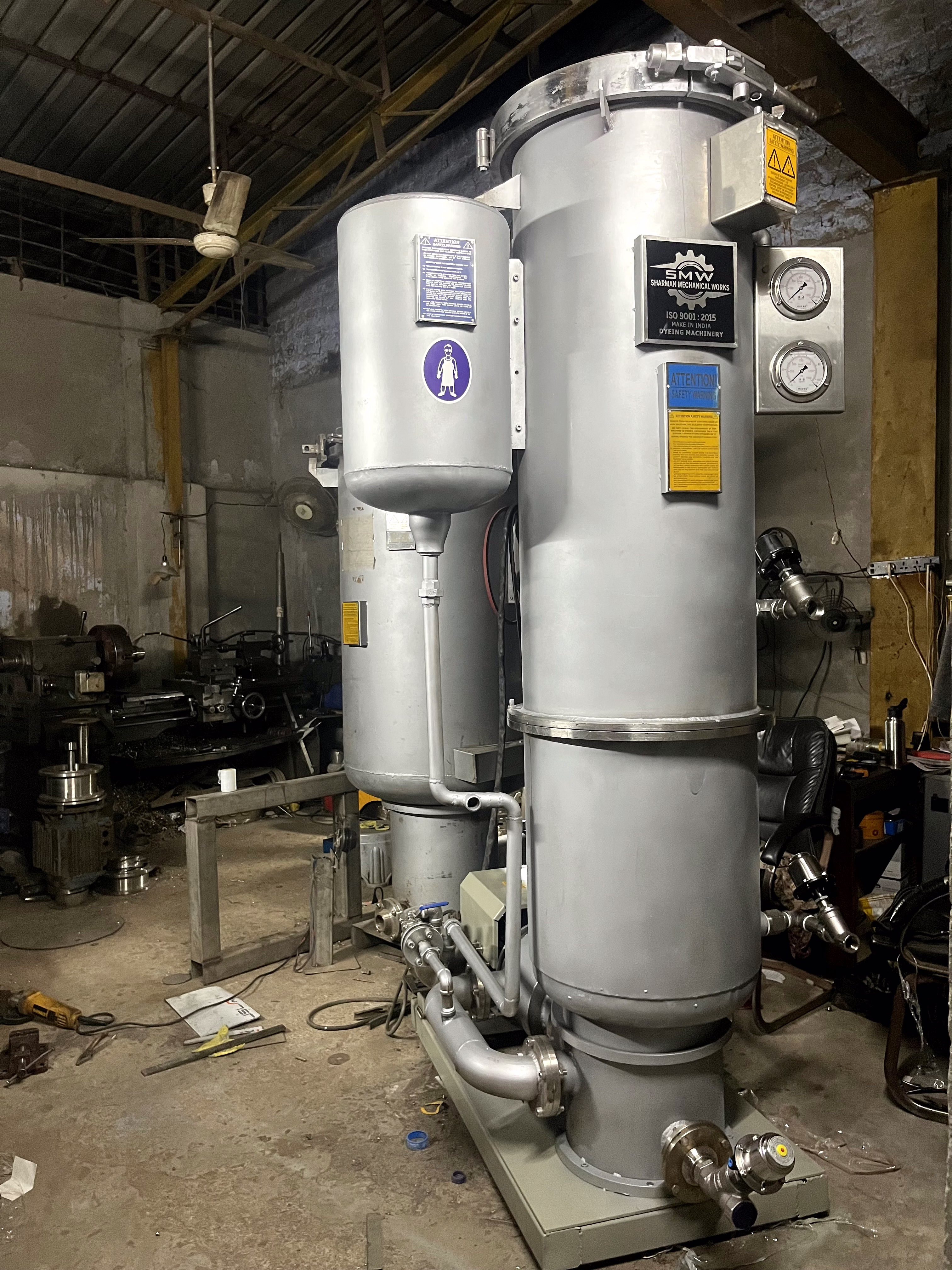

The Hthp Vertical Loose Fiber Dyeing Machine by SMW is a state-of-the-art vertical kier dyeing machine designed specifically for the efficient dyeing of loose fibers. Manufactured in India, this machine supports a wide range of fiber types including cotton, viscose, and narrow tapes. It stands out for its versatility as it can also dye packages, tops, hanks, tow, and beams, making it an ideal asset for textile manufacturers seeking multipurpose fiber dyeing solutions. The machine is built using high-grade SS 304 and SS 316 stainless steel, ensuring durability and resistance to corrosion at elevated operating temperatures. It offers capacities ranging from 5 to 1500 kg per batch, suitable for small to large-scale industrial applications. Operating at 440V, 3-phase power supply, the system functions efficiently at temperatures from 25°C to 130°C, with controlled heating at approximately 5°C per minute from dry saturated steam pressure at 7 bars. The Hthp Vertical Loose Fiber Dyeing Machine supports eco-friendly and precise dyeing processes, backed by over 60 years of expertise and three years of rigorous industrial testing by SMW's engineering team. This machine merges traditional vertical kier dyeing principles with innovative modular basket loading techniques (as seen in the BigForm system), optimizing dyeing and washing performance for loose fibers. It is designed to meet modern industrial requirements with automatic operation, round shape configuration, and a single-tube construction to maximize efficiency and fabric quality.
Key Features
| Features | Description |
|---|---|
| Machine Type | Automatic Vertical Kier Dyeing Machine |
| Material | High-Grade Stainless Steel SS 304 and SS 316 |
| Capacity | 5 to 1500 Kg batch size |
| Application | Loose Fiber Dyeing, Cone Dyeing, Zipper Dyeing, Narrow Tape Dyeing, Viscose Dyeing, Cotton Dyeing |
| Voltage & Phase | 440 V, 3 Phase |
| Operating Temperature Range | 25°C to 130°C |
| Heating Rate | Approx. 5°C per minute using dry saturated steam at 7 bar pressure |
| Design Features | Round shape, single tube construction, modular basket loading for improved dyeing |
| Origin | Made in India |
| Attributes | Description |
|---|---|
| Model Number | SMDYF1 |
| Number of Tubes | 1 |
| Material Grade | SS 304 & SS 316 |
| Capacity Range | 5 Kg to 1500 Kg |
| Operating Voltage | 440V |
| Phase | 3 Phase |
| Temperature Control | 25°C to 130°C at approx. 5°C/min heating rate |
| Steam Pressure | 7 bar (Dry Saturated Steam) |
| Shape | Round |
| Made In | India |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, this machine is multipurpose and capable of dyeing different fiber forms including packages, tops, hanks, tow, beams, and cones, providing great flexibility in production.
The modular baskets, available in 100 kg, 200 kg, or 500 kg capacities, optimize dyeing and washing performances by ensuring even dye penetration and ease of loading/unloading, improving efficiency and quality.
Yes, it is specially designed to handle a variety of fibers including viscose and cotton with precise temperature and steam pressure controls for optimal dye absorption.
The SS 304 and SS 316 materials used are corrosion-resistant; however, regular cleaning and routine inspection during scheduled maintenance are recommended to maintain optimal performance and longevity.
The machine is designed to operate up to 130°C with controlled heating at approx. 5°C/min under 7 bar steam pressure. This ensures safe and efficient dyeing cycles without overheating risks.
Country Of Origin: India
SMW Loose Fibre dyeing proposes at least 2 different types of machinery:

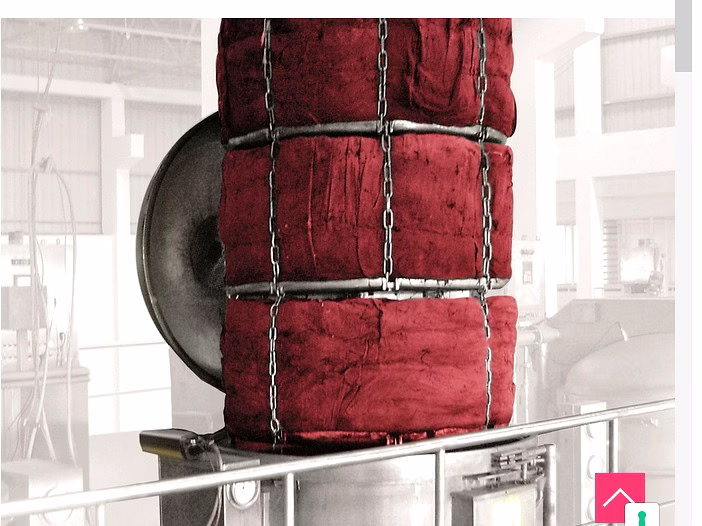

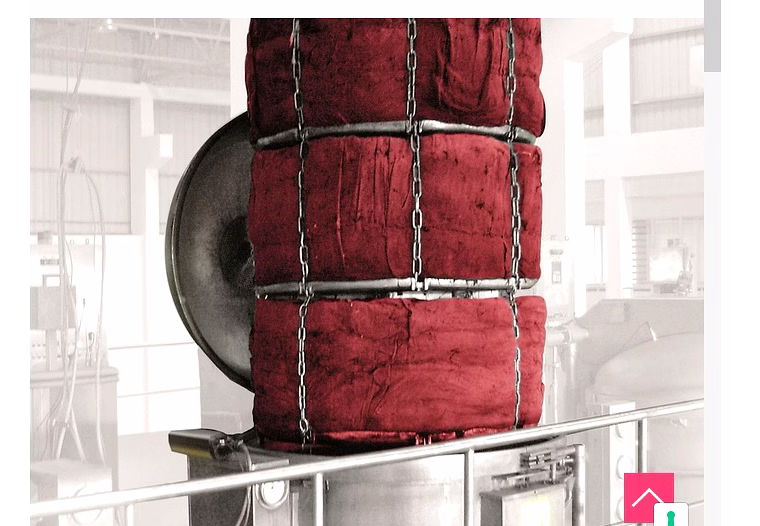

- which is the traditional vertical kier dyeing machine suitable for all kind of fibre. This machine is multipurpose as it can dye also Packages, Tops, Hank, Tow and Beams.
- the BigForm system, that looks like a vertical kier dyeing machine with the difference that the loose fibres are loaded into modular baskets of 100 kg, 200 or 500 kg each. These baskets are specially designed for achieving the best possible dyeing and washing performances
Every type of the above machines has its own characteristics so we invite you to visit the detailed pages of each type in order to evaluate which one is more suitable for your type of business.
We really had to reset all the information we had collected along more than 60 years of brilliant and experienced activity in the yarn dyeing industry and start thinking out of the box on something different, something that not necessarily had to be stuck with the common sense of the industry.
Today, after 3 years of industrial testing led by our Engineering Team, SMW is finally ready with a new line of package dyeing machines that is the very essential summary of our devotion to both the community and the environment.
Material ss 304 , 316
Capacity 5 - 1500 kg
Usage/Application LOOSE FIBER DYEING , CONE DYEING , ZIPPER DYEING , NARROW TAPE DYEING , VISCOSE DYEING , COTTONE DYE
Machine Type Automatic
Shape Round
Voltage 440v
Phase 3 Phase
Operating Temp. 25- 130 degree C approx at 5 degree C /min. (Dry Saturated steam pressure at 7 bar)
Number Of Tubes 1
I Deal In New Only
Model Name/Number SMDYF1
Country of Origin Made in India
