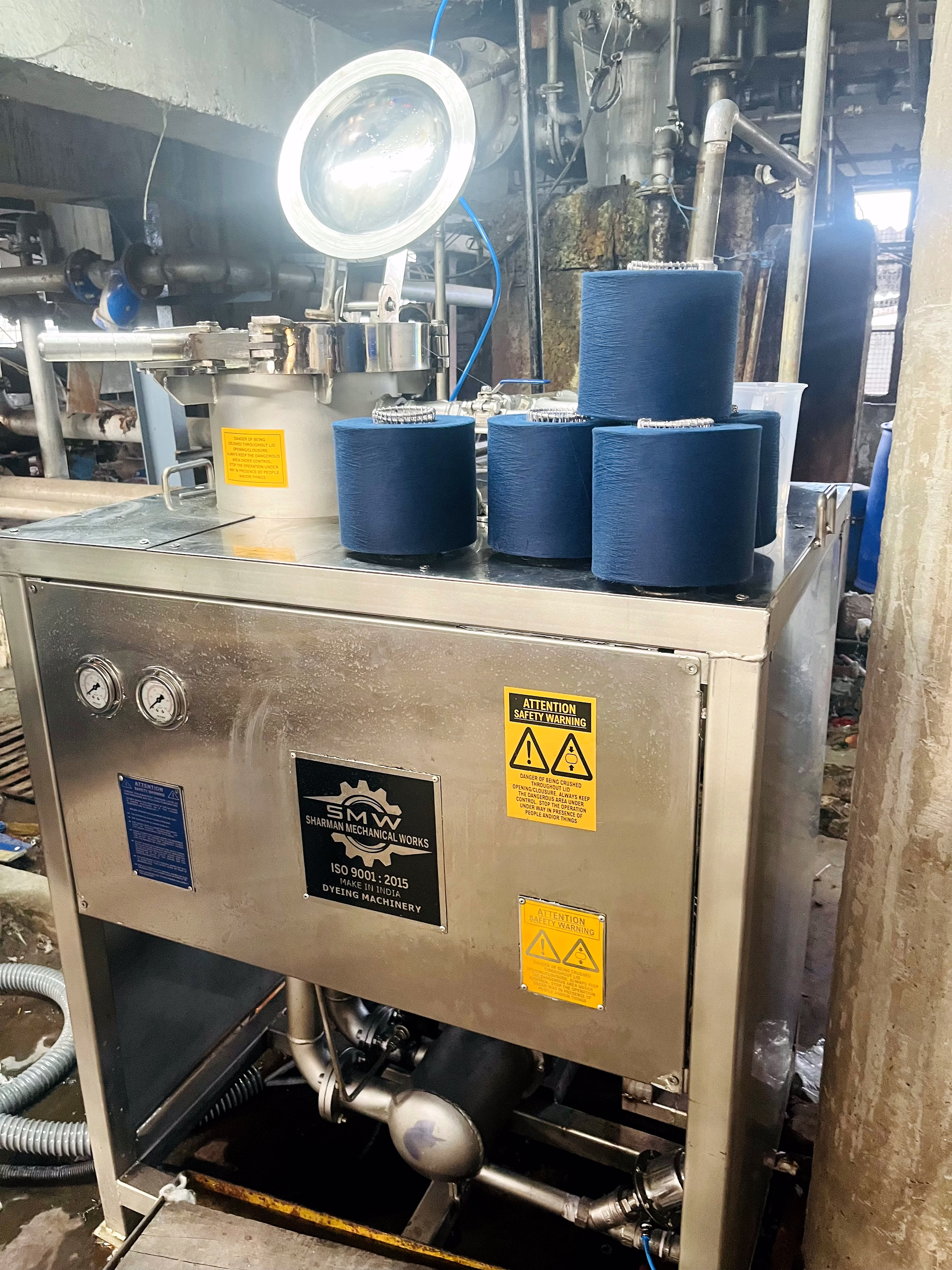

The HTHP Polyester Yarn Dyeing Machine by SMW is a cutting-edge automatic vertical dyeing solution designed specifically for small-scale production ranging from 1 to 30 kg. Ideal for dyeing and bleaching polyester, viscose, cotton, narrow tapes, and various yarn forms such as packages, hanks, tops, loose fibers, and small warp beams, this machine supports preliminary dyeing tests and small lot productions with high efficiency and precision. Featuring an interchangeable spindle carrier system, the machine offers exceptional versatility to handle different yarn types and fabric beams. Constructed with durable SS 316L stainless steel, it ensures longevity and resistance against corrosion during high pressure and temperature operations (up to 140°C). The HTHP machine is engineered for sustainable yarn dyeing with 50% reductions in electrical energy usage and 30% savings in water and chemical consumption, making it environmentally friendly and cost-effective. Its automatic operation mode, low steam consumption (4 kg/cm²), and compatibility with 440V 3-phase power input enhance its industrial usability. This advanced yarn dyeing equipment is perfect for laboratories or small production units seeking high-quality dyeing results combined with energy, water, and chemical efficiency.
Key Features
| Features | Description |
|---|---|
| Production Capacity | 1 KG to 30 KG small batch dyeing |
| Material Construction | High-grade SS 316L stainless steel |
| Applicable Yarn Types | Polyester, viscose, cotton, narrow tapes, yarn packages, hanks, tops, loose fibers |
| Machine Type | Fully automatic vertical dyeing machine |
| Operating Temperature | Up to 140°C |
| Power Supply | 440 V, 3 phase |
| Energy Efficiency | 50% electricity savings |
| Water and Chemical Savings | 30% reduction in water & chemicals usage |
| Steam Consumption | 4KG/cm² |
| Environmental Impact | Sustainable yarn dyeing technology with very low running costs |
| Versatility | Interchangeable spindle carriers for different yarn/fabric formats |
| Application | Lab and small lot dyeing and bleaching for yarns and narrow tapes |
| Attributes | Description |
|---|---|
| Brand | SMW |
| Model Name/Number | SMWDYCFT |
| Country of Origin | Made in India |
| Maximum Capacity | 30 KG |
| Minimum Capacity | 1 KG |
| Material | SS 316L Stainless Steel |
| Machine Shape | Vertical |
| Voltage | 440 V |
| Phase | 3 Phase |
| Operating Temperature | 140°C |
| Steam Pressure | 4 KG/cm² |
| Power Consumption | Very Low |
| Application Type | Polyester, viscose yarn dyeing, bleaching |
| Usage | Laboratory tests and small production lots |
| Automation | Automatic operation |
| Energy and Water Saving | 50% electricity, 30% water and chemical savings |
| Accessories Included | Optional Hydro Extractor, Hot Air Drier |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The machine can dye polyester, viscose, cotton yarns, narrow tapes, yarn packages, hanks, tops, and loose stock fibers.
The machine supports dyeing batch sizes from 1 kg up to 30 kg.
It reduces electrical energy consumption by 50% and water and chemical usage by 30%, contributing to sustainable and eco-friendly dyeing processes.
Yes, it features interchangeable spindle carriers allowing dyeing of yarn packages, small warp beams, fabric beams, narrow tapes, and loose fibers.
Constructed from SS 316L stainless steel, it ensures corrosion resistance and high durability under high temperature and pressure conditions during dyeing.
It is ideal for laboratory tests and small lot production due to its small batch capacity and precise control.
It operates on 440 V, 3-phase electrical supply with very low power consumption.
Country Of Origin: India
Small production 15 to 30 kg cotton,polyester,viscose ,narrow tape automatic high pressure and high temperature vertical machine for dyeing and bleaching for laboratory or small lots of yarn. used for preliminary dyeing tests on yarn packages, hanks, tops, loose stock fibers, small warp beams, narrow tapes and fabric beams by using inter- changeable spindle carriers - water - energy + savings +? ? Environment high-end quality, cutting-edge sustainable technologies and very low running costs this is our new smdy yarn dyeing machine! Yarn dyeing, reinvented! 50% savings on electric energy 30% savings on water, chemicals and utilities improved yarn dyeing quality faster payback times sustainable yarn dyeing.HTHP Horizontal Tubular Dyeing Machine, HTHP Vertical Dyeing Machine, HTHP Vertical Tubular Dyeing Machine, HTHP Sample Dyeing Machine, , Yarn Conditioning / HTHP Polyester Yarn Dyeing Machine, Filament Yarn Dyeing Machine, Hthp Vertical Loose Fiber Dyeing Machine,Hydro Extractor, Hot Air Drier and accessories under the brand name of smwdyeing.
