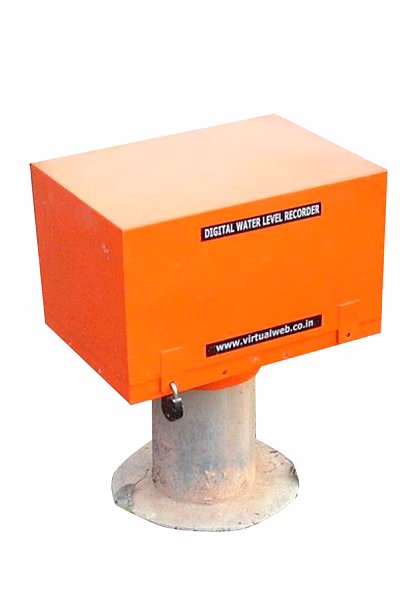

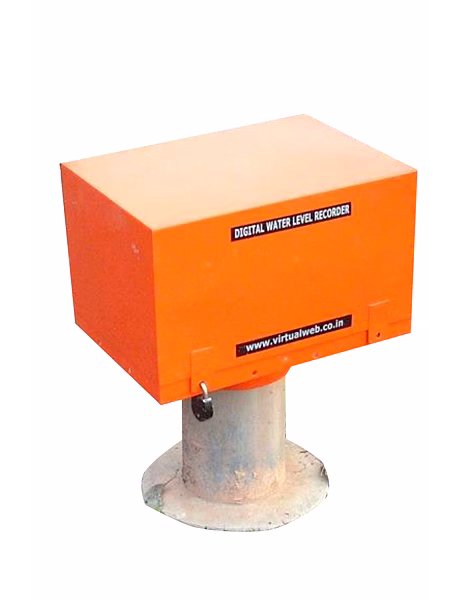

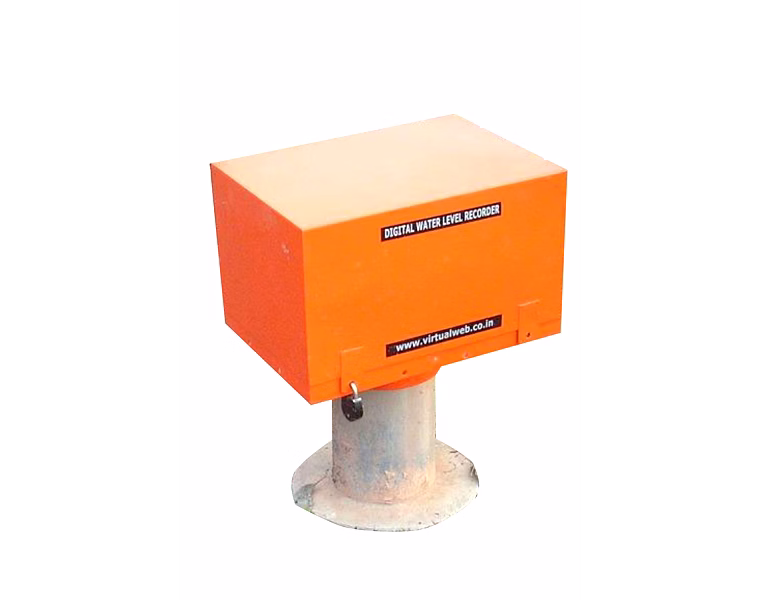

The Ground Water Level Recorder (Piezometer) Model GWLR-NV-VH-P-D-50-50 by Virtual is an advanced microcontroller-based instrument designed for precise and automatic monitoring of groundwater levels. Equipped with an IP65-rated data logger, it ensures durability and resistance against dust and water, ideal for challenging field environments. The device integrates a piezo-resistive silicon strain gauge sensor mounted on a 316 stainless steel diaphragm, ensuring high corrosion resistance and accurate pressure sensing. The integral cable includes a vent tube for barometric pressure compensation, enhancing data accuracy by mitigating atmospheric pressure fluctuations. Featuring an internal memory and real-time clock, along with a clear 16x2 LCD display, the recorder shows instrument status and stores real-time data efficiently. It supports multiple measurement ranges including 10, 20, 50, 70, 100, 200, and 300 meters, allowing flexibility for diverse groundwater monitoring applications in wells and aquifers. Data collected by the instrument is saved in Microsoft Excel format, facilitating straightforward analysis and reporting. This Ground Water Level Recorder is essential for environmental monitoring, hydrological surveys, and groundwater resource management, offering reliability, precision, and user-friendly data handling.
Key Features
| Features | Description |
|---|---|
| Measurement Technology | Piezo-resistive silicon strain gauge sensor |
| Protective Housing | IP65-rated data logger for dust and water resistance |
| Sensor Diaphragm Material | 316 Stainless Steel (SS) |
| Barometric Pressure Compensation | Integral cable with vent tube |
| Data Storage | Internal memory with real-time clock |
| Display | 16 x 2 LCD screen for instrument status |
| Data Output Format | Microsoft Excel compatible files |
| Measurement Range Options | 10, 20, 50, 70, 100, 200, 300 meters |
| Application | Ground and well water level monitoring |
| Microcontroller | Advanced internal microcontroller for real-time data acquisition |
| Attributes | Description |
|---|---|
| Model Number | GWLR-NV-VH-P-D-50-50 |
| Sensor Type | Piezo-resistive silicon strain gauge |
| Material | 316 Stainless Steel diaphragm |
| Ingress Protection | IP65 |
| Data Logger Memory | Internal memory with RTC |
| Display Type | 16 x 2 character LCD |
| Data Output | Excel (.xls) format |
| Cable Features | Integral vent tube for barometric pressure compensation |
| Measurement Ranges | 10m, 20m, 50m, 70m, 100m, 200m, 300m |
| Power Supply | Microcontroller powered - details per technical datasheet |
| Applications | Groundwater level monitoring in wells, environmental & hydrological studies |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The device includes an integral cable with a vent tube that allows equalization of atmospheric pressure above the water level sensor, ensuring that pressure readings are compensated for barometric fluctuations, thereby increasing measurement accuracy.
Yes, the data logger is housed in an IP65-rated enclosure that provides adequate protection against dust ingress and water jets, making it suitable for continuous outdoor groundwater monitoring.
The Ground Water Level Recorder saves the collected data in Microsoft Excel format (.xls), facilitating easy data analysis and reporting.
The sensor diaphragm is made from 316 stainless steel, which offers excellent corrosion resistance and durability in harsh groundwater environments, ensuring longevity and reliable readings.
Yes, the recorder is available in various measurement ranges including 10, 20, 50, 70, 100, 200, and 300 meters to accommodate different well depths and monitoring requirements.
Brand: virtual
Country Of Origin: India
“Virtual” make Ground Water Level Recorder (Piezometer) is reflect state of the art in micro controller based instrumentation design. The Water Level sensor can be attached with this IP65 data logger for the collection of real time data automatically. The micro controller has its internal memory along with, a real time clock with an LCD (16 X 2) to display the instrument status. Piezo-resistive silicon strain gauge, bounded to 316 SS diaphragm and integral cable contain a vent tube for Barometric pressure compensation. Comes with different ranges 10, 20, 50, 70, 100, 200, 300 meters. Data file is saved in Microsoft’s Excel. This instrument is used for ground / wells water level monitoring.
