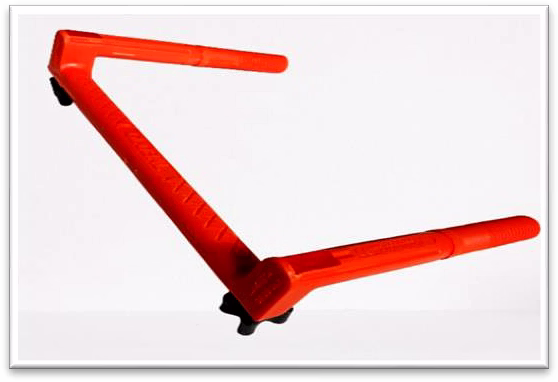

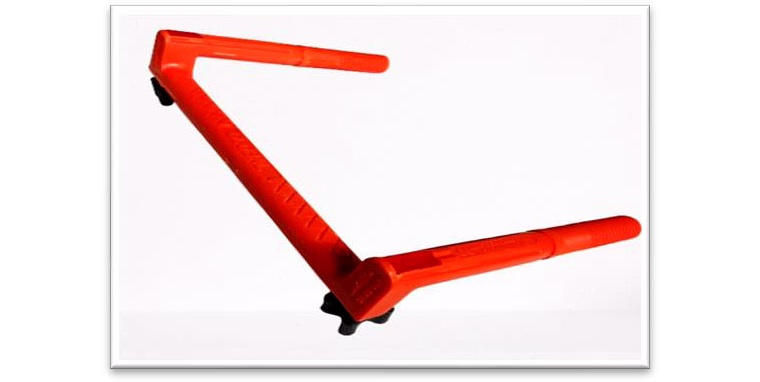

The Galvanized Steel STGS032 PVC Encapsulated Rungs are premium-grade manhole steps designed specifically to meet the rigorous demands of underground man entry chambers. Manufactured in accordance with the European Standard EN13101:2002, these rungs feature a robust core made from Ø16 mm mild steel rod of SAE 1018 grade, ensuring exceptional structural strength and durability. Each steel rod is galvanized with a zinc plating exceeding 10 µm, providing superior corrosion defense. Adding to their resilience, the rungs are encapsulated with a minimum 2.5 mm thick layer of polypropylene (PP), offering enhanced corrosion protection, UV stability, and high impact resistance while eliminating any sharp edges for safety. The steps measure a width of 330 mm and length of 225 mm, with 70 mm designed to be securely grouted inside the wall for optimal anchorage. The anti-slip surface and lateral slipping protection provide additional user safety during manhole entry and exit. Available in vibrant colors such as orange, yellow, black, and blue, these steps combine durability, safety, and compliance with international standards, making them ideal for demanding underground infrastructure projects. Their easy installation and cost-effectiveness make them a preferred choice in the utility and construction industries.
Key Features
| Features | Description |
|---|---|
| Core Material | Ø16 mm Mild Steel Rod, Grade SAE 1018 |
| Galvanization | Zinc Plating above 10 µm for corrosion resistance |
| Encapsulation | Minimum 2.5 mm Polypropylene (PP) coating for protection and UV stability |
| Compliance | Manufactured as per EN 13101:2002 European Standard |
| Step Dimensions | Width 330 mm, Length 225 mm, with 70 mm for wall grouting |
| Weight Capacity | Max Load approximately 550 kg, Compression Load 465 kg, Pull Out Load 253 kg |
| Safety Features | No sharp edges, anti-slip threads, lateral slipping protection |
| Color Options | Available in orange, yellow, black, and blue |
| Installation | Extremely easy to install and cost-effective |
| Additional Properties | Spark proof and polymer covered with high impact resistance |
| Attributes | Description |
|---|---|
| Standard Description | EN 13101:2002 - Steps for underground man entry chambers |
| Steel Rod Diameter | Ø16 mm |
| Steel Grade | SAE 1018 Mild Steel |
| Zinc Plating Thickness | Above 10 µm |
| Polypropylene Encapsulation Thickness | Minimum 2.5 mm |
| Step Width | 330 ± 1 mm |
| Step Length | 220-225 mm |
| Grip Length (Embedded Portion) | 70 ± 1 mm |
| Colors Available | Orange, Yellow, Black, Blue |
| Product Weight | 1.430 kg (approx.) |
| Pull Out Load Capacity | 253 kg (approx.) |
| Compression Load Capacity | 465 kg (approx.) |
| Maximum Load Capacity | 550 kg (approx.) |
| Surface Features | Anti-slip, no sharp edges, lateral slipping protection |
| UV Stability | UV Stabilized Master Batch included |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The polypropylene encapsulation, with a minimum thickness of 2.5 mm, provides superior protection against corrosion, UV radiation, and physical impacts, substantially extending the lifespan of the rungs in harsh underground environments.
The rungs exhibit anti-slip threads and lateral slipping protection, coupled with the absence of any sharp edges or corners, ensuring a safe and secure foothold for users during manhole access.
Yes, the STGS032 rungs are engineered to handle a maximum load of approximately 550 kg, with tested pull-out and compression loads of 253 kg and 465 kg respectively, making them reliable under heavy-duty maintenance operations.
The 70 mm grip length is the part of the rung designed to be grouted inside the manhole wall, ensuring a secure and stable anchorage enhancing both safety and structural integrity.
Yes, these rungs conform to the European Standard EN13101:2002 for steps used in underground man entry chambers, with certification available on request.
Country Of Origin: India
What sets us apart from our competitors is the wide range of product features that only we can guarantee. The following are some of the factors that set our products apart.
We manufacture Manhole steps as per the European Standard- Steps for underground man entry chambers i.e., EN13101:2002.
Plastic encapsulation for protection from all types of corrosion.
Superior resistance exceeding international standards.
Spark proof and polymer covered.
High impact resistance.
Extremely easy to install and cost-effective.
No sharp edges or corners and anti-slip surfaces.
The steps conform to all quality parameters. Test Certificate according to Applicable European Standard EN13101:2002
Unique designed with a step width of 330 mm and length of 225 mm
Out of 275 mm , 70 mm can be grouted inside wall
TECHNICAL DATA
Standard Description EN 13101:2002 -
Core Material Ø16 mm MILD STEEL ROD Grade-SAE 1018 -
Zinc Plating Above 10 µm at any point on steel rod. µm
Encapsulation POLYPROPYLENE (PP) Min 2.5 mm at any
point. mm
Dowel Distance 330 ± 1 mm
Leg Length 220-225 mm
Grip Length 70 ± 1 mm
Standard Color Orange,Yellow,Black,Blue
Product Weight 1.430 * kg
Pull Out Load 253 * kg
Compression Load 465 * kg
Max. Load 550 * kg
( * approx.)
KEY FEATURES
Full Encapsulation for high corrosion resistance.
UV Stablized Master Batch.
High Impact Resistance
Non Slip Threads
Lateral Slipping Protection.
No sharp edges.
