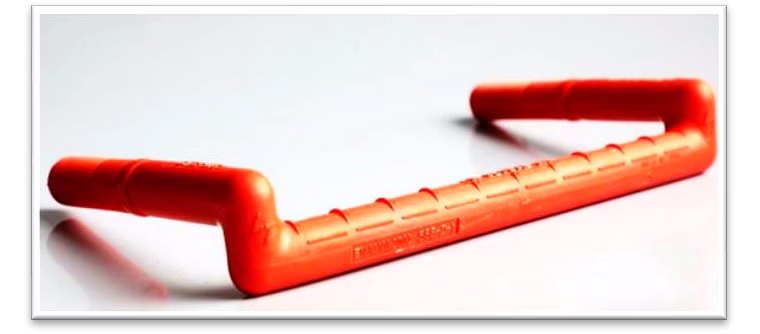

The Galvanized Steel STGS018 PVC Encapsulated Rungs are premium-quality manhole steps designed and manufactured according to the stringent European Standard EN13101:2002 for underground man entry chambers. Featuring a robust core of Ø16 mm mild steel rod (Grade SAE 1018) with zinc plating above 10 µm, each rung is fully encapsulated in a minimum 2.5 mm thick polypropylene (PP) layer. This advanced encapsulation provides superior corrosion resistance, UV stabilization, and spark-proof protection, making the rungs exceptionally durable in harsh environments. With a uniquely engineered step width of 330 mm and a length of 225 mm, and a grouting length of 70 mm into the wall, these steps ensure easy installation, enhanced safety with non-slip threads, lateral slipping protection, and no sharp edges for user safety. The steps also exhibit high impact resistance and load-bearing capacities ideal for industrial and municipal applications, guaranteed to withstand heavy compression and pull-out loads. Overall, the STGS018 model offers a cost-effective and reliable solution for safe and durable underground access.
Key Features
| Features | Description |
|---|---|
| Standard Compliance | Manufactured as per European Standard EN13101:2002 |
| Core Material | Ø16 mm Mild Steel Rod, Grade SAE 1018 |
| Protective Coating | Zinc plating above 10 µm on steel rod |
| Encapsulation Material | Polypropylene (PP), minimum 2.5 mm thick |
| Step Dimensions | Width 330 mm ±1 mm; Length 225 mm; Grip Length 70 mm ±1 mm |
| Corrosion Resistance | Full PVC encapsulation for superior corrosion and UV resistance |
| Safety Features | Non-slip threads, lateral slipping protection, no sharp edges |
| Load Capacity | Maximum load approximately 540 kg; Pull-out load approx. 230 kg; Compression Load approx. 445 kg |
| Installation | Easy to install with 70 mm embedded length for firm wall grouting |
| Color Options | Available in Orange, Yellow, Black, Blue |
| Attributes | Description |
|---|---|
| European Standard | EN13101:2002 |
| Core Material Diameter | 16 mm |
| Steel Rod Grade | SAE 1018 |
| Zinc Plating Thickness | Above 10 µm |
| Encapsulation Thickness | Minimum 2.5 mm Polypropylene |
| Step Width | 330 ± 1 mm |
| Step Length | 225 mm |
| Grip Length for Grouting | 70 ± 1 mm |
| Colors Available | Orange, Yellow, Black, Blue |
| Product Weight | Approx. 1.350 kg per rung |
| Pull Out Load | Approx. 230 kg |
| Compression Load | Approx. 445 kg |
| Maximum Load | Approx. 540 kg |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The polypropylene encapsulation on the STGS018 rungs is at least 2.5 mm thick at any point, providing excellent corrosion resistance and impact durability.
The rungs have non-slip thread patterns and lateral slipping protection, which, combined with the polymer coating, eliminate sharp edges and reduce the risk of slips when climbing.
The STGS018 rungs have been tested to withstand a maximum load of approximately 540 kg, a pull-out load of around 230 kg, and a compression load near 445 kg, suitable for heavy-duty industrial use.
Yes, the full polypropylene encapsulation and zinc-plating exceed international corrosion resistance standards, making STGS018 optimal for use in harsh underground environments including chemical or salt exposure.
Yes, the rungs have a unique design allowing 70 mm of the 225 mm length to be embedded securely inside the wall with grout, facilitating easy installation while ensuring stability.
Country Of Origin: India
What sets us apart from our competitors is the wide range of product features that only we can guarantee. The following are some of the factors that set our products apart.
We manufacture Manhole steps as per the European Standard- Steps for underground man entry chambers i.e., EN13101:2002.
Plastic encapsulation for protection from all types of corrosion.
Superior resistance exceeding international standards.
Spark proof and polymer covered.
High impact resistance.
Extremely easy to install and cost-effective.
No sharp edges or corners and anti-slip surfaces.
The steps conform to all quality parameters. Test Certificate according to Applicable European Standard EN13101:2002
Unique designed with a step width of 330 mm and length of 225 mm
Out of 25 mm , 70 mm can be grouted inside wall
TECHNICAL DATA
Standard Description EN 13101:2002 -
Core Material Ø16 mm MILD STEEL ROD Grade-SAE 1018 -
Zinc Plating Above 10 µm at any point on steel rod. µm
Encapsulation POLYPROPYLENE (PP) Min 2.5 mm at any
point. mm
Dowel Distance 330 ± 1 mm
Leg Length 220-225 mm
Grip Length 70 ± 1 mm
Standard Color Orange,Yellow,Black,Blue -
Product Weight 1.350 * kg
Pull Out Load 230 * kg
Compression Load 445 * kg
Max. Load 540 * kg
( * approx.)
KEY FEATURES
Full Encapsulation for high corrosion resistance.
UV Stablized Master Batch.
High Impact Resistance
Non Slip Threads
Lateral Slipping Protection.
No sharp edges.
