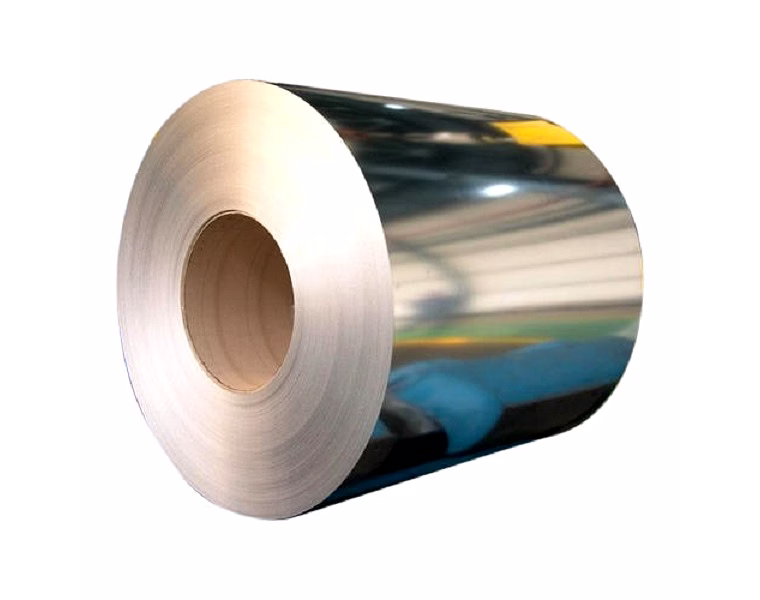

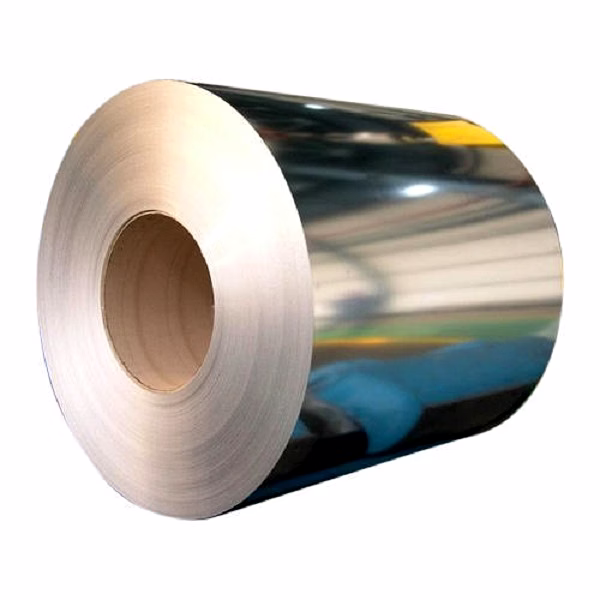

Our premium Galvanized Coils are engineered to meet diverse industrial demands, ranging from construction and infrastructure projects to automotive and white goods manufacturing. Designed for durability and versatility, these coils are ideal for applications such as steel framing, roofing, decking, HVAC systems, refrigerator and air cooler production, and automotive interior components. Manufactured with cold rolled steel base metal as per IS 513 standards, these coils undergo galvanization compliant with IS 277 or equivalent international standards including ASTM A 653 and EN10327. Available in thicknesses from 0.10 to 3.00 mm and widths ranging from 30 mm to 1420 mm, these galvanized coils offer multiple spangle finishes including regular, minimized, suppressed, and zero spangle, with or without tension leveling for superior flatness. Passivation treatments include both trivalent and hexavalent chromating, with options for oiled or non-oiled finishes. The yield strength varies from 240 MPa to 550 MPa, encompassing grades such as CQ, DQ, DDQ, EDDQ, and HSLA, catering to diverse strength and hardness requirements. Coil weights are maintained up to 8 tons for ease of handling with controlled or staggered winding tolerance between +/- 5 to +/- 15 mm. Perfectly suited for industrial users looking for reliable, customizable galvanized steel solutions with excellent corrosion resistance and mechanical properties.
Key Features
| Features | Description |
|---|---|
| Standards Compliance | Conforms to IS 277, ASTM A 653, EN10327 |
| Thickness Range | 0.10 mm to 3.00 mm |
| Width Range | 30 mm to 1420 mm |
| Base Metal | Cold Rolled Steel as per IS 513 |
| Spangle Options | Regular, Minimized, Suppressed, Zero (Skin Pass) |
| Passivation | Chromated (Trivalent / Hexavalent) |
| Oiling Options | Non-oiled, Oiled |
| Yield Strength | 240 MPa, 360 MPa, 550 MPa |
| Grades Available | CQ, DQ, DDQ, EDDQ, HSLA |
| Coil Weight | Up to 8 Tons |
| Winding Tolerance | Controlled/Staggered (+/- 5 to +/- 15 mm) |
| Attributes | Description |
|---|---|
| Application Areas | Construction & Infrastructures, White Goods, Automotive, Containers |
| Construction Use Cases | Steel framing, False ceiling, Sandwich panels, Ducting, Decking, Roofing, Purlin, HVAC |
| White Goods Use Cases | Refrigerators, Deep Freezers, Washing Machines, Air Coolers |
| Automotive Applications | Auto internal components, Bus bodies building |
| Container Applications | Grain silos, trunks, drums, barrels, crash guards, handrails, buckets, gardening cans, milk containers, animal feeding pans, fish pans |
| Thickness | 0.10 mm to 3.00 mm |
| Width | 30 mm to 1420 mm |
| Base Metal Standard | IS 513 |
| Surface Finish | Spangle Regular/Minimized/Suppressed/Zero |
| Leveling | With or without tension leveling |
| Passivation Type | Trivalent or Hexavalent Chromate |
| Oiling Condition | Oiled or Non-oiled |
| Yield Strength | 240, 360, 550 MPa |
| Temper | Extra Soft, Semi Hard, Full Hard |
| Hardness (HRB) | 35 to 90 |
| Grades | CQ, DQ, DDQ, EDDQ, HSLA |
| Maximum Coil Weight | 8 Tons |
| Winding Control | Controlled/Staggered with tolerance +/- 5 to +/- 15 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, these galvanized coils are available in thicknesses ranging from 0.10 mm to 3.00 mm and widths from 30 mm to 1420 mm, allowing customization as per specific industrial requirements.
The coils comply with relevant Indian standard IS 277 and equivalent international standards ASTM A 653 and EN10327, ensuring high quality and performance.
Yes, the product offers various spangle finishes including regular, minimized, suppressed, and zero spangle, as well as chromate passivation options with trivalent or hexavalent treatments.
They are used for manufacturing auto internal components and building bus bodies, due to their excellent corrosion resistance and mechanical strength.
Yes, buyers can select either oiled or non-oiled finish depending on the end-use requirements for handling and corrosion protection.
The coil weight can be up to 8 tons with controlled or staggered winding tolerance ranging from plus or minus 5 to 15 mm.
