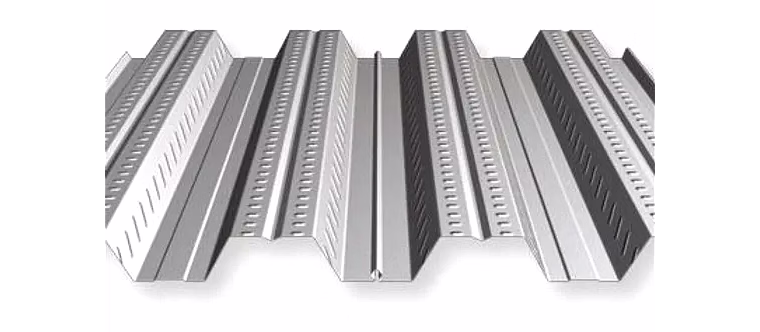

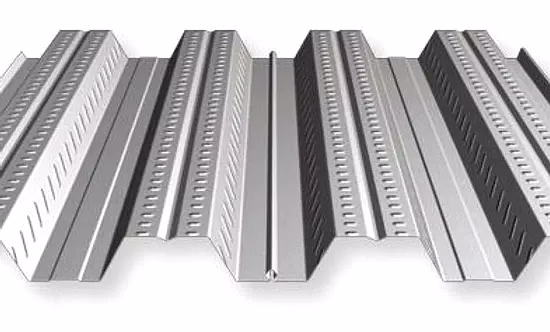

Floor and Roof Decking Sheets, also known as steel deck sheets, are engineered for use as a composite flooring system in construction projects. These sheets feature a ribbed profile with embossed surfaces that effectively interlock with concrete slabs, ensuring a robust reinforced concrete structure that acts both as permanent formwork and positive reinforcement. Manufactured from high-quality zinc-coated or precoated steel with zinc coatings ranging from 120 to 275 gsm, these decking sheets provide excellent corrosion resistance for durable performance in various environments. Available in thicknesses between 0.80 mm and 2.00 mm, the steel decks have a crest height of 51 mm and a pitch distance of 317 mm, optimizing structural strength and load distribution. The overall width measures 975 mm with an effective cover width of 962 mm, and the sheets come in multiple standard lengths from 2440 mm (8 ft) up to 4880 mm (16 ft), enabling flexibility for different architectural and structural requirements. These decking sheets are widely applicable in multi-story buildings, industrial sheds, warehouses, shopping malls, high-rise towers, multiplexes, power plants, and mezzanine floors, making them essential for contemporary construction demanding high strength, efficiency, and longevity.
Key Features
| Features | Description |
|---|---|
| Material | Zinc coated and precoated steel |
| Zinc Coating Thickness | 120 to 275 gsm for corrosion resistance |
| Sheet Thickness | 0.80 mm to 2.00 mm |
| Crest Height | 51 mm |
| Pitch Distance | 317 mm |
| Overall Width | 975 mm |
| Effective Cover Width | 962 mm |
| Available Lengths | 2440 mm (8 ft), 3050 mm (10 ft), 3660 mm (12 ft), 4270 mm (14 ft), 4880 mm (16 ft) |
| Profile | Ribbed with embossment for concrete interlock |
| Applications | Multi-story buildings, industrial sheds, high-rise buildings, shopping malls, power plants, mezzanine floors |
| Attributes | Description |
|---|---|
| Product Type | Composite Steel Floor and Roof Decking Sheet |
| Material Type | Zinc coated/precoated steel |
| Coating Weight (GSM) | 120-275 gsm Zinc coating |
| Sheet Thickness | 0.80 mm - 2.00 mm |
| Crest Height | 51 mm |
| Pitch Distance | 317 mm |
| Overall Width | 975 mm |
| Effective Width | 962 mm |
| Standard Lengths | 2440 mm (8 ft), 3050 mm (10 ft), 3660 mm (12 ft), 4270 mm (14 ft), 4880 mm (16 ft) |
| Surface Finish | Embossed ribbed profile |
| Application Areas | Multi-story buildings, industrial sheds, warehouses, shopping malls, high-rise buildings, multiplexes, power plants, mezzanine floors in industrial buildings |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The steel decking sheets come with zinc coating ranging from 120 gsm to 275 gsm, providing enhanced corrosion resistance.
Yes, the sheets are available in standard lengths from 2440 mm (8 ft) to 4880 mm (16 ft), offering flexibility for different building requirements.
The ribbed and embossed profile improves mechanical interlock with poured concrete, ensuring structural stability and acting as positive reinforcement.
Yes, they are specifically designed for applications including high-rise buildings, multi-story complexes, industrial sheds, and warehouses.
Thickness ranges from 0.80 mm to 2.00 mm depending on structural requirements.
