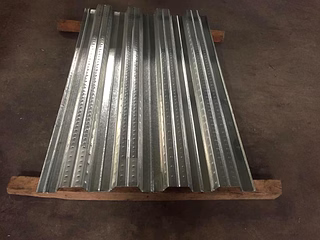

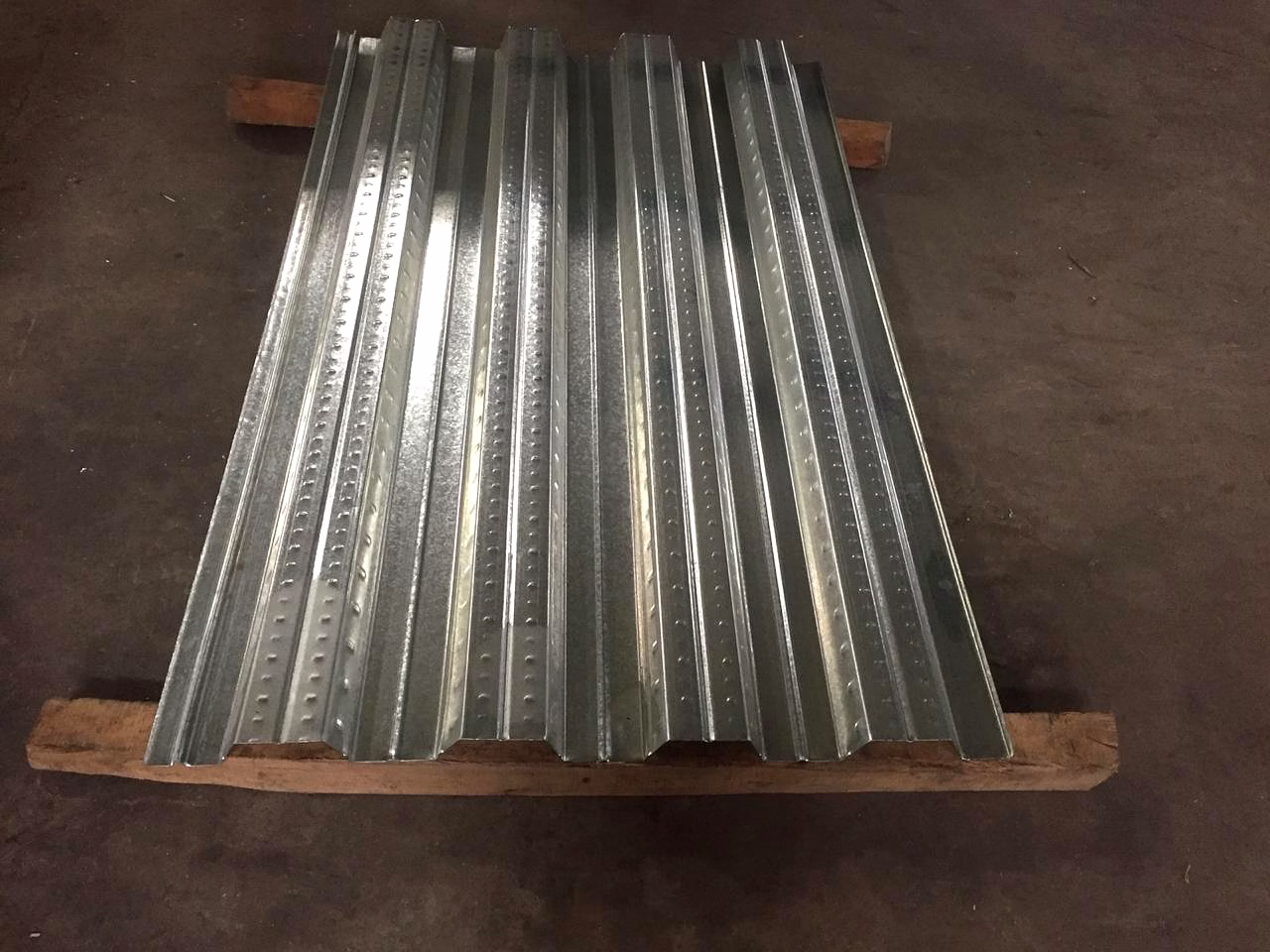

GI Deck Sheets are premium galvanized steel panels engineered specifically for composite floor systems and permanent formwork applications in modern construction projects. Designed for high-strength performance, these sheets offer exceptional tensile strength ranging from 245 to 550 MPa, making them capable of withstanding substantial load-bearing requirements in industrial mezzanines, commercial high-rise buildings, and steel-framed sheds. The galvanized surface ensures superior corrosion resistance through zinc coating thickness varying between 80 to 300 gsm, commonly Z-120, which extends the product lifecycle even in harsh environmental conditions. Available in multiple thickness options from 0.8 mm to 1.5 mm, and customizable lengths up to 24 feet, GI Deck Sheets provide versatile solutions adapted to various structural profiles, including the standard 51/230 mm profile and a width of 965 mm. These sheets are also fire-resistant and offer cost-effective installation, reducing labor and construction time while enhancing structural durability and safety. Ideal for composite concrete floors, roofing, and cladding in warehouses, power plants, factories, and commercial complexes, GI Deck Sheets support efficient and sustainable construction practices.
Key Features
| Features | Description |
|---|---|
| Material | Galvanized Steel |
| Thickness Range | 0.8 mm to 1.5 mm |
| Profile Types | 51/230 mm |
| Sheet Width | 965 mm |
| Customizable Length | Up to 24 ft |
| Tensile Strength | 245 – 550 MPa |
| Zinc Coating Thickness | 80 – 300 gsm (commonly Z-120) |
| Finish | Hot-dip Galvanized |
| Applications | Composite concrete floors, industrial mezzanine floors, roofing & cladding |
| Advantages | High load bearing, corrosion resistant, fire-resistant, quick installation, cost-effective |
| Attributes | Description |
|---|---|
| Material | Galvanized Steel |
| Thickness | 0.8 mm - 1.5 mm |
| Profile Dimensions | 51/230 mm |
| Width | 965 mm |
| Maximum Length | Up to 24 ft (customizable) |
| Tensile Strength | 245 - 550 MPa |
| Zinc Coating | 80 - 300 gsm (Typically Z-120) |
| Finish Type | Galvanized (Hot-dip) |
| Corrosion Resistance | High, due to zinc galvanization |
| Fire Resistance | Enhanced |
| Typical Uses | Composite floor systems, permanent formwork, roofing, industrial mezzanine floors |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the GI Deck Sheets are customizable up to a maximum length of 24 feet to suit various structural needs.
The GI Deck Sheets come in a 51/230 mm profile type, designed to provide optimal strength and support.
The zinc coating thickness between 80 to 300 gsm offers excellent corrosion resistance, significantly enhancing lifespan and reducing maintenance costs.
Yes, these sheets have enhanced fire resistance, making them suitable for safety-critical construction like commercial buildings and industrial facilities.
Thickness ranges from 0.8 mm to 1.5 mm, where thinner sheets are used for light mezzanine floors and thicker sheets for heavy-duty concrete composite floors.
Country Of Origin: India
Our GI Deck Sheets are high-strength, galvanized steel panels designed for composite floor systems and permanent formwork. With superior load-bearing capacity, corrosion resistance, and quick installation, they are ideal for industrial and commercial structures. Available in various profiles, thicknesses, and lengths to suit project needs. Durable, fire-resistant, and cost-effective for modern construction.
Technical Specifications
Thickness - 0.8 mm – 1.5 mm
Profile Types - 51/230 mm
Width Options - 965 mm
Length - Up to 24 ft (customizable)
Tensile Strength - 245 – 550 MPa
Zinc Coating Thickness 80 – 300 gsm (Z-120 commonly)
Finish - Galvanised
🛒 Ideal For
Composite concrete floors in high-rise & commercial buildings
Industrial mezzanine floors & steel-framed sheds
Roofing & cladding applications in warehouses, power plants, factories
