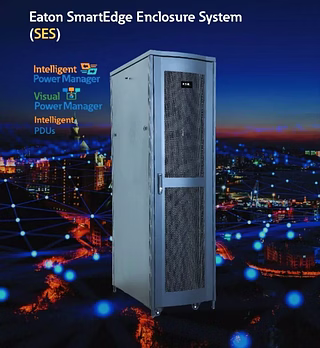

SmartEdge SES-36U-6x10-S1 – 36U Server Rack Enclosure

SmartEdge SES-36U-6x10-S1 is a 36U server enclosure engineered for equipment consolidation in industrial and commercial control rooms. Utilizing a certified load-bearing frame with load-rated uprights, the unit architecture supports uniformly distributed weights up to 800 kg. The chassis includes a vented front door with 60% free-area ventilation and removable side panels to support heat-managed server and power modules. Compatible with standard 19-inch rack-mount rails, the enclosure integrates vertical cable management channels for structured wiring. Units ship in palletized crates with shock-absorbing inserts and corrosion-resistant strapping. Supply-readiness is managed through lot-based traceability and quality inspection reports, addressing the procurement requirements of manufacturers requiring localized control cabinets with documented load ratings and environmental handling standards for cross-border infrastructure movement.

Key Features

• Load-rated welded steel frame → supports ≥800 kg uniformly distributed equipment weight to provide structural safety for high-density power and server modules.
• Perforated ventilation architecture → features a 60% free-area front door to reduce inlet temperature risk for passive-cooled IT and automation components.
• Adjustable-depth 19-inch rails → utilizes EIA-310 compatible uprights to accommodate equipment stacks from 0U to 36U with non-standard chassis depths.

Technical Attributes

• Usable Vertical Space: 36U → selection parameter defining the maximum vertical density for rack-mount equipment.
• Footprint: 6x10 nominal → selection parameter for determining floor-space allocation and aisle clearance.
• Material: Cold-rolled steel → ensures mechanical rigidity and abrasion resistance in industrial plant environments.
• Grounding: Dual M6 studs → provided to simplify protective earthing and prevent electrical potential build-up.

Material Build and Structural Logic of the 36U SmartEdge Enclosure

The technical framework of the SmartEdge SES-36U-6x10-S1 utilizes folded and welded cold-rolled steel members sized to maintain static rigidity under continuous server loads. The structural reasoning for the load-rated uprights is to prevent "vertical bowing" when the rack is populated with high-mass UPS modules and storage arrays—a failure in frame rigidity results in misaligned rail paths, making equipment removal high-risk and potentially damaging. Surface treatment comprises a phosphate conversion layer followed by a thermoset powder coat to provide uniform adhesion and reduce micro-corrosion in unconditioned indoor environments. Rack uprights are tapped to EIA-310 standards; this consistency enforces repeatable mounting torque and positional alignment for RU components. Quality consistency is managed through serialized dimensional inspections and corner-to-corner squareness checks. Failure to manage these tolerances—due to welding logic errors—manifests as "door binding" and a breach of the thermal boundary, leading to "hot-spot recirculation" that can decommission sensitive server assets. The reinforced frame ensures that the unit remains within its geometric limits during high-mass energy storage staging.

Functional Performance & Operational Efficiency in industrial and commercial control rooms

Operational efficiency is achieved through the unit’s integrated vertical cable channels and top/bottom gland plates, which are designed to reduce cable stress and preserve structured wiring integrity. failure to maintain structured routing—especially in high-density 36U stacks—results in "airflow blocking," where cable bundles prevent cool air from reaching the equipment intake. functional performance centers on the unit’s support for passive and active cooling strategies; the perforated front door facilitates convective flow, while provision for top-mounted fan modules allows for active heat rejection. In real operational scenarios, a failure in the grounding logic—due to poor contact at the studs—leads to "common-mode noise," which commonly causes logic errors in industrial control processors. grounding points with dual M6 studs are provided at both front and rear to simplify site installation. By providing a clean and organized equipment environment, the enclosure effectively improves the overall reliability of the localized control node, providing the technical transparency required for institutional asset management and regulatory review. The side panels are removable on captive fasteners to permit in-situ wiring modifications without disturbing mounted components.

Institutional Deployment & Logistical Readiness for Cross-Border Movement

Designed for industrial IT infrastructure, power distribution units, and localized control cabinets, the SES-36U is configured for the logistical requirements of multimodal multi-site rollouts. Units ship in palletized crates with hygroscopic desiccant and corrosion-inhibiting film to preserve the finish during long-haul sea freight and maritime storage. Failure to implement moisture-protected packaging results in "rust blooming" on the internal rail threads, manifesting as high-resistance joints upon site installation. For international procurement, supply-readiness is supported through lot-based traceability and quality inspection reports (CE/UL). Export-ready documentation includes technical data sheets and mechanical load test certificates provided with each consignment. Packaging utilizes shock-absorbing inserts to protect the finish and alignment during transit. OEM and private-label customization are supported, allowing system integrators to deliver branded cabinets with serialized build records. This high-authority approach ensures procurement teams receive verified, site-ready hardware that meet the performance and safety requirements of global manufacturing markets, providing the transparency required for large-scale energy infrastructure rollouts.
