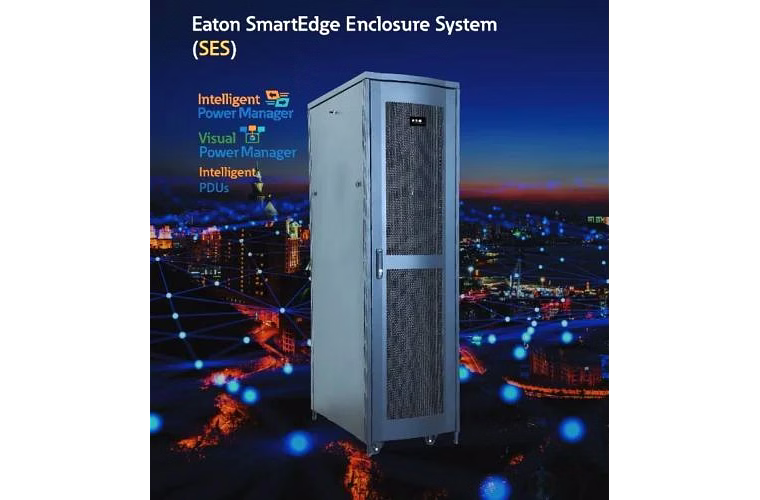

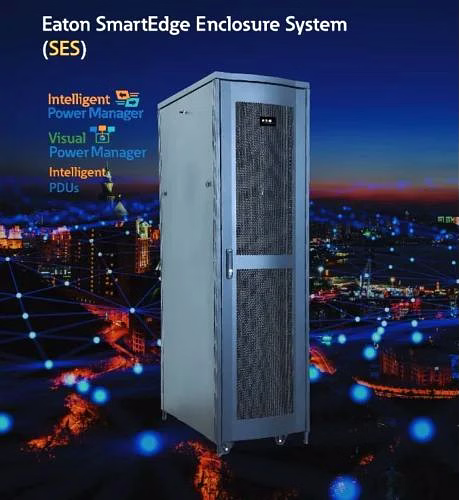

SmartEdge Enclosure System SES-27U-6x10-S1 – 27U Edge Rack Enclosure

The SES-27U-6x10-S1 is a 27U rack enclosure intended for denser edge and server installations requiring increased vertical capacity in a compact footprint. Utilizing a welded steel chassis with a reinforced base, the unit architecture supports heavier equipment loads, including integrated PDUs and modular energy storage. The design features adjustable-depth 19-inch mounting rails with "U" markings for standardized component placement and repeatable site configuration. Units ship with assembly guides and per-unit inspection records, ensuring supply-readiness for multi-site deployments. Transit packing includes reinforced crates with internal bracing to protect installed server blades and power modules. This enclosure is essential for facilities requiring floor-space efficiency and structured cable management for aggregated compute stacks with documented static loading verification.

Key Features

• 27U vertical capacity → provides expanded vertical space to support additional server blades and power modules in dense edge centers.
• Reinforced welded chassis → utilizes heavy-gauge steel and a reinforced base plate to maintain structural integrity under high-mass IT deployments.
• Modular accessory slots → allow cable managers, shelves and vertical PDUs to be preinstalled for rapid site commissioning.

Technical Attributes

• Mounting: 19" rails with U markings → ensures standard equipment compatibility and repeatable mounting heights.
• Cooling provisions: fan trays and vent panels → selection parameter for scalable thermal management strategies.
• Construction: welded frame with reinforced base → supports loaded equipment and forklift handling without structural racking.
• Packaging: reinforced crates with internal bracing → selection parameter ensuring protection for assembled or pre-populated units.

Structural scalability and depth-adjustable mounting of the 27U SmartEdge Enclosure

The SES-27U-6x10-S1 enclosure expands vertical capacity while keeping the same mounting standards found in EIA-310 19-inch racks. The welded frame and reinforced base plate are specifically designed to distribute concentrated loads from integrated battery stacks to the leveling feet, preventing "chassis sag" that can misalign the front and rear doors. A failure in rail parallelism results in "component binding," where the sliding rails of server blades lock up, potentially damaging the equipment's mechanical mounts. Quality consistency is managed through serialized dimensional inspections and corner-to-corner squareness checks. Failure to manage these tolerances—due to poor welding logic—results in "door jamming" and a breach of the thermal containment—a failure mode that leads to hot-air recirculation and equipment overheating. The modular rails feature depth adjustment in 25mm increments, allowing for the precise placement of heavier or deeper network and compute modules without the need for custom shelves. grounding points with M6 studs are provided throughout the frame to prevent electrical potential build-up, a critical standard for protecting sensitive CMOS logic from electrostatic discharge (ESD).

Functional Performance & Operational Efficiency in Denser Edge Clusters

Operational efficiency is achieved through the unit’s integrated cable-management routes, which are organized to keep power and data runs segregated to prevent electromagnetic interference (EMI). failure to maintain cable bend radii—especially for high-bandwidth fiber—results in "signal loss" and increased packet retry rates in the network stack. Design features preserve airflow and service access even with denser equipment populations. Pre-configured cable-management routes reduce installation time and avoid cable congestion that can impede equipment intake. The enclosure supports top panels with fan-tray mounting points that facilitate the high-velocity air exchange required for 27U equipment stacks. In a real operational scenario, a failure in the airflow logic—due to missing blanking panels—results in "short-cycling," where cooled air travels through empty RUs rather than the equipment, causing a 10°C rise in internal server temperatures. By maintaining a clean and organized environment, the enclosure effectively improves the overall reliability of the aggregated compute nodes, reducing the mean time to repair (MTTR) by enabling easy access to rear-panel interconnects.

Application & Industry Deployment Logistics for Multi-Site Rollouts

Ideal for edge data centers, telco cabinets and compact server rooms, the SES-27U supports factory configuration and integration into larger distributed systems. Units ship in heavy-duty reinforced crates with internal bracing designed to secure pre-populated equipment during multimodal transit. Failure to implement pre-populated shipping protection results in "vibration-induced loosening" of internal connections, leading to intermittent signal issues weeks after installation. For international procurement, supply-readiness is supported through serialized inspection records and dimensional drawings (ANSI/TIA). Export-ready documentation includes unit configuration snapshots and environment manifests provided with each shipment to facilitate site acceptance. Packaging utilizes moisture-barrier liners and desiccants to prevent humidity-induced terminal oxidation during maritime transit. Factory pre-population and labeling options are available, allowing system integrators to deliver deployment-ready "racks in a box" with serialized asset tracking. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global markets, providing the technical transparency required for institutional asset registration and facility commissioning.
