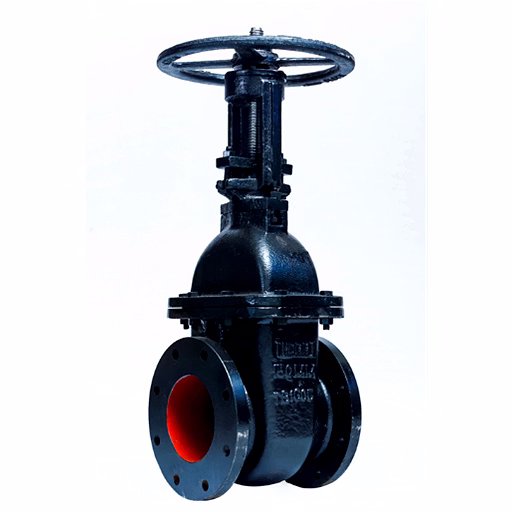

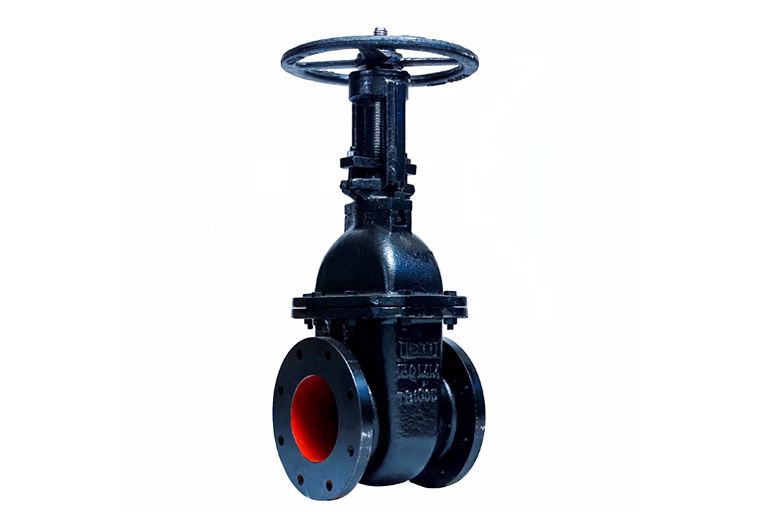

The Cast Iron Sluice Valve Rising is engineered for robust fluid control applications, adhering to Indian Standards IS 14846:2000. Crafted from high-quality Cast Iron (IS:210 FG200) for superior durability and corrosion resistance, this valve features a rising stem made from stainless steel (IS 6603 12Cr13) ensuring long-term operational reliability. The valve internals are constructed from Gun Metal (IS:318 LTB2) providing excellent wear resistance and smooth operation. Designed with drilling as per IS 1538 (PN 1.0), this sluice valve is rigorously body tested to withstand 15 Kg/cm² pressure and seat tested to 10 Kg/cm², making it ideal for water supply, irrigation, and industrial pipeline systems requiring stringent pressure handling and leak-proof sealing. Its robust construction guarantees high performance in regulating fluid flow, with easy visual indication of valve position via the rising stem mechanism.
Key Features
| Features | Description |
|---|---|
| Material - Body | Cast Iron (IS:210 FG200) |
| Valve Type | Sluice Valve (Rising) |
| Stem Material | Stainless Steel (IS 6603 12Cr13) |
| Internal Components | Gun Metal (IS:318 LTB2) |
| Standard Compliance | IS 14846:2000 |
| Drilling Standard | IS 1538 (PN 1.0) |
| Body Pressure Test | 15 Kg/cm² |
| Seat Pressure Test | 10 Kg/cm² |
| Operation Type | Rising Stem for Visual Position Indication |
| Attributes | Description |
|---|---|
| Valve Type | Rising Stem Sluice Valve |
| Body Material | Cast Iron (IS:210 FG200) |
| Stem Material | Stainless Steel (IS 6603 12Cr13) |
| Internal Material | Gun Metal (IS:318 LTB2) |
| Applicable Standard | IS 14846:2000 |
| Drilling Standard | IS 1538 (PN 1.0) |
| Max Body Pressure Test | 15 Kg/cm² |
| Max Seat Pressure Test | 10 Kg/cm² |
| Usage | For controlling flow in water supply, irrigation, and industrial pipelines |
| Operation | Rising stem operation allows external visual indication of valve position |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This valve is manufactured according to IS 14846:2000 for sluice valves, uses Cast Iron per IS:210 FG200, stainless steel stem as per IS 6603 12Cr13, gun metal internals as per IS:318 LTB2, and drilling conforms to IS 1538 (PN 1.0).
The valve body is pressure tested up to 15 Kg/cm² and the seat is tested up to 10 Kg/cm², ensuring reliable sealing and operation under high pressure conditions.
The rising stem design offers a clear visual indication of the valve position during operation, facilitating easier monitoring and status check without dismantling.
Yes, Cast Iron FG200 body, stainless steel stem, and gun metal internals are suitable for potable water supply and various industrial uses due to their corrosion resistance and durability.
Its drilling conforms to IS 1538 (PN 1.0), making it compatible with standard pipe flanges and fittings, ensuring straightforward installation and replacement.
Country Of Origin: India
Cast Iron (IS:210 FG200)
Sluice Valve (Rising)
Stem- S.S.(IS 6603 12Cr13)
Internals-Gun Metal (IS:318 LTB2)
Standard- IS 14846:2000
Driling as per IS 1538 (PN 1.0)
Body Tested to 15Kg/Cm2
Seat Tested to 10Kg/Cm2
