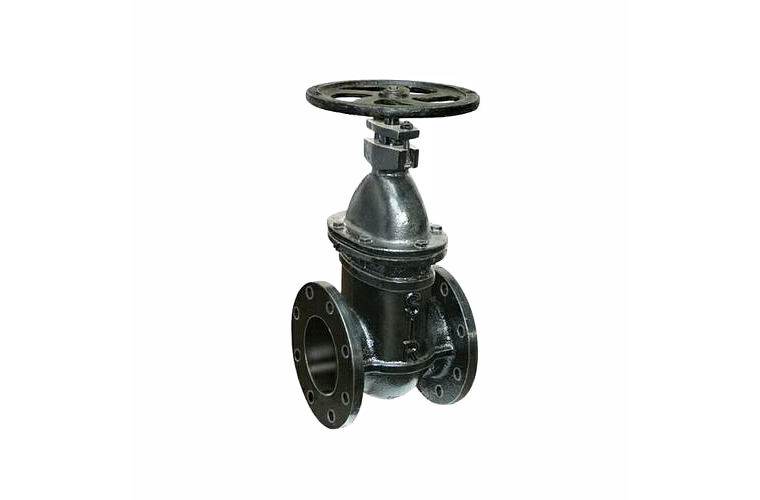

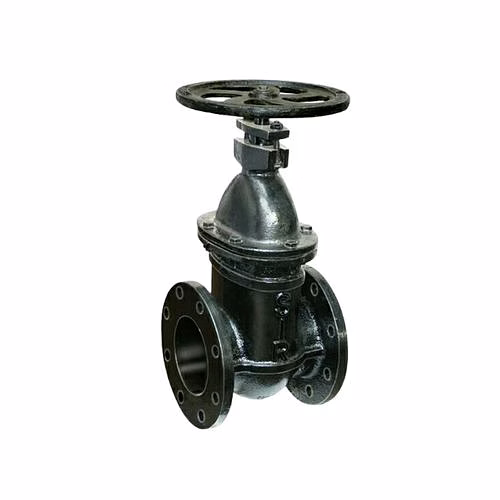

The Cast Iron Sluice Valve is expertly engineered according to Indian Standards IS 210 FG200 for cast iron and IS 14846:2000 for sluice valves. This high-quality valve features a durable cast iron body designed to withstand pressures up to 24 Kg/Cm2, ensuring robust performance in various industrial and municipal water management applications. Equipped with a stainless steel stem (IS 6603 12CR13), the valve offers excellent corrosion resistance and long service life. The internal components are made of gun metal (IS 318 LTB2), providing reliable sealing and operational efficiency. The valve comes fitted with a convenient wheel for easy manual operation. Precision drilling complies with IS 1538 standards (PN 1.6), ensuring compatibility with standard pipeline connections. The body and seat undergo rigorous pressure testing with body tested to 24 Kg/Cm2 and seat tested to 16 Kg/Cm2, promising leak-proof and durable performance in fluid control systems. This sluice valve is ideal for water supply, sewage, and irrigation systems requiring dependable flow control with compliance to Indian industrial standards.
Key Features
| Features | Description |
|---|---|
| Material of Body | Cast Iron (IS 210 FG200) |
| Valve Type | Sluice Valve with Wheel |
| Stem Material | Stainless Steel (IS 6603 12CR13) |
| Internal Components | Gun Metal (IS 318 LTB2) |
| Standard Compliance | IS 14846:2000 |
| Drilling Standard | IS 1538 (PN 1.6) |
| Body Pressure Test | 24 Kg/Cm2 |
| Seat Pressure Test | 16 Kg/Cm2 |
| Operation Mechanism | Manual Wheel Operated |
| Attributes | Description |
|---|---|
| Valve Size | Varies as per requirement |
| Pressure Rating | PN 16 (1.6 MPa) |
| End Connection | Flanged per IS 1538 |
| Face to Face Dimension | As per IS 14846:2000 |
| Application | Water Supply, Irrigation, Sewage, and Fluid Control Systems |
| Corrosion Resistance | High due to Stainless Steel Stem and Gun Metal Internals |
| Operating Temperature Range | Up to 120°C |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This sluice valve complies with IS 210 FG200 for cast iron, IS 14846:2000 for sluice valves, IS 6603 for stainless steel stem material, and IS 318 for gun metal internals. The drilling conforms to IS 1538 standards.
The valve body is pressure tested to 24 Kg/Cm2 and the seat is pressure tested to 16 Kg/Cm2 to ensure leak-proof and reliable operations.
The stem is made of stainless steel (IS 6603 12CR13), offering corrosion resistance, while the internals are constructed from durable gun metal (IS 318 LTB2) for optimum sealing.
Yes, the cast iron sluice valve is suitable for both potable water and sewage systems, complying with Indian standards to handle water and fluid control safely.
The valve is manually operated using a wheel, providing precise control over flow in pipeline systems.
Brand: adm
Country Of Origin: India
Cast Iron (IS:210 FG200)
Sluice Valve (With Wheel)
Stem -S.S (IS 6603 12CR13)
Internals-Gun Metal (IS:318 LTB2)
Standard- IS 14846:2000
Drilings as per IS 1538 (PN 1.6)
Body Tested to 24 Kg/Cm2
Seat Tested to 16Kg/Cm2
