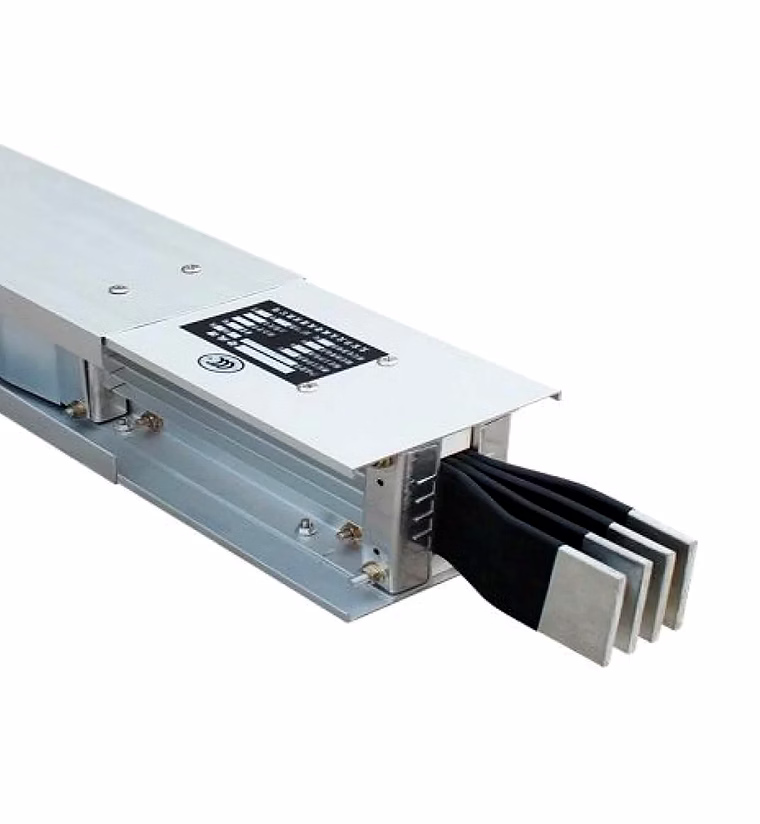

The Busbar Trunking System 800A–6000A is an advanced industrial power distribution solution designed for seamless current transfer between switchboards and connected electrical equipment. Engineered to meet IEC 61439 standards, this bus duct system supports high-capacity electrical distribution with structured installation layouts, suitable for both indoor and outdoor environments. It features aluminium or copper busbars offering current ratings from 800A to 6000A, combined with robust electro-galvanized steel or aluminium housings providing mechanical strength and corrosion resistance. Key innovations include silver plated joints for consistent electrical connectivity, integral earth arrangements for grounding continuity, and thermal management designs ensuring stable temperature control during heavy-duty operations. Available in IP4X, IP5X, and IP6X ingress protection ratings, this busway is ideal for demanding industrial, commercial, and infrastructure applications requiring high reliability and efficiency in power distribution.
Key Features
| Features | Description |
|---|---|
| Current Ratings | 800A to 5000A for Aluminium busbars; 630A to 6000A for Copper busbars |
| Busbar Material | Aluminium or Copper conductor systems |
| Ingress Protection | IP4X, IP5X, and IP6X rated enclosures |
| Housing Material | Electro-galvanized steel (1.5mm–2mm) or Aluminium wrap-around housing |
| Thermal Management | Engineered heat dissipation and temperature control for stable current transfer |
| Standards Compliance | Manufactured according to IEC 61439 electrical distribution assembly standards |
| Jointing System | Silver plated joints ensuring consistent electrical contact between trunking sections |
| Housing Formats | Rectangular and square formats for structured installation |
| Grounding | Integral earth arrangement for continuous grounding throughout the bus duct |
| Application Environment | Suitable for indoor and outdoor industrial and commercial installations |
| Attributes | Description |
|---|---|
| Current Rating (Aluminium Busbars) | 800A–5000A |
| Current Rating (Copper Busbars) | 630A–6000A |
| Ingress Protection Rating | IP4X, IP5X, IP6X |
| Housing Material | Electro-galvanized Steel thickness 1.5mm–2mm or Aluminium wrap-around |
| Insulation Class | Class B |
| Joint Type | Silver plated joints |
| Standard Color Finish | Siemens Grey RAL 7032 and RAL 7035 |
| Standards | IEC 61439 compliant |
| Housing Formats | Rectangular and square |
| Application Type | Indoor and Outdoor duty |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the system offers configurations for both indoor and outdoor duty, supported by IP4X to IP6X ingress protection ratings.
This busbar trunking system complies with IEC 61439 standards for electrical distribution assemblies, ensuring high safety and reliability.
Yes, the busbar trunking system is available with either aluminium or copper conductor busbars, with specific current rating ranges for each.
Silver plated joints are integrated between trunking sections to provide consistent and reliable electrical contact throughout the system.
The system uses a Class B insulation system to ensure proper electrical isolation and stability.
The housing is made from electro-galvanized steel with 1.5mm to 2mm thickness or aluminium wrap-around panels, providing structural strength and durability.
Brand: hartik
Country Of Origin: India
Busbar Trunking system used for high-capacity electrical power distribution between switchboards and connected equipment. IEC 61439 compliant construction supports structured installation across industrial and commercial facilities, while engineered thermal management helps maintain stable current transfer under demanding operational conditions.
Busbar Trunking System Overview
Busbar Trunking provides structured electrical power distribution between switchboards and connected equipment in industrial plants, commercial facilities, and infrastructure installations. The trunking assembly supports organized routing of high-current conductors while maintaining controlled termination between electrical distribution points.
Electrical Ratings and Standards
IEC 61439 compliant bus duct construction aligns the system with recognized switchgear and power distribution standards. Current ratings range from 800A to 5000A in aluminium busbars and from 630A to 6000A in copper busbars, supporting diverse facility load requirements.
Thermal and Mechanical Construction
The trunking structure is engineered for controlled heat dissipation, thermal rating stability, and mechanical stress endurance. Housing is available in electro-galvanized steel ranging from 1.5mm to 2mm thickness or aluminium wrap-around construction, supporting structured installation in electrical distribution corridors.
Protection and Grounding Configuration
Ingress protection options include IP4X, IP5X, and IP6X ratings depending on installation requirements. An integral earth arrangement supports grounding continuity along the trunking route, while Class B insulation contributes to stable electrical separation between conductors and enclosure.
Installation and Jointing System
Silver plated joints assist electrical continuity between trunking sections during installation. Rectangular and square housing formats support alignment within electrical rooms and plant corridors, while indoor and outdoor duty options enable deployment across varied facility layouts.
