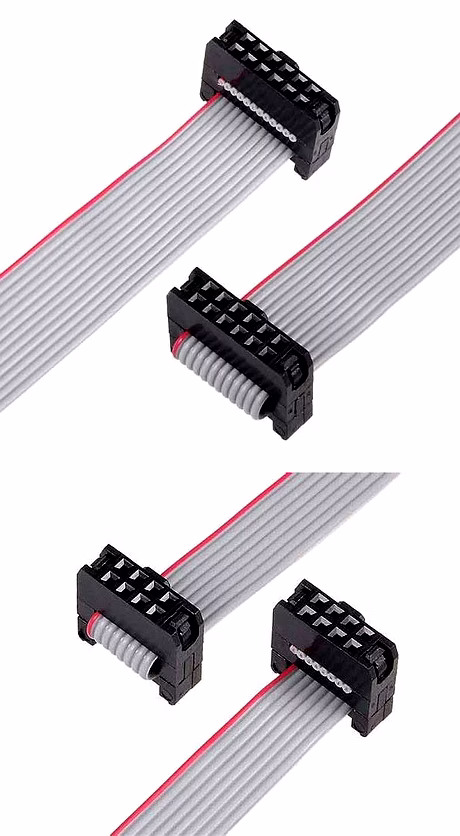

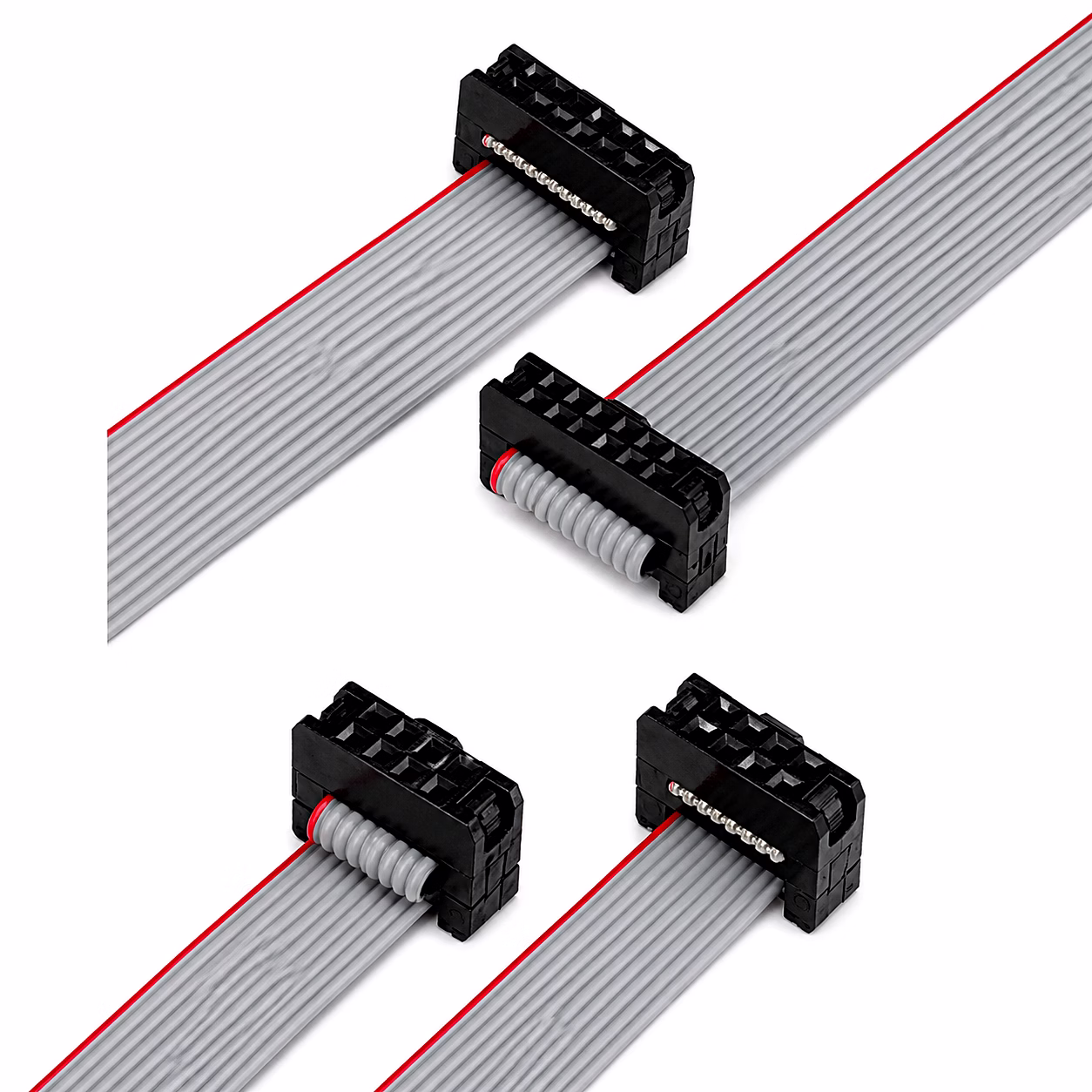

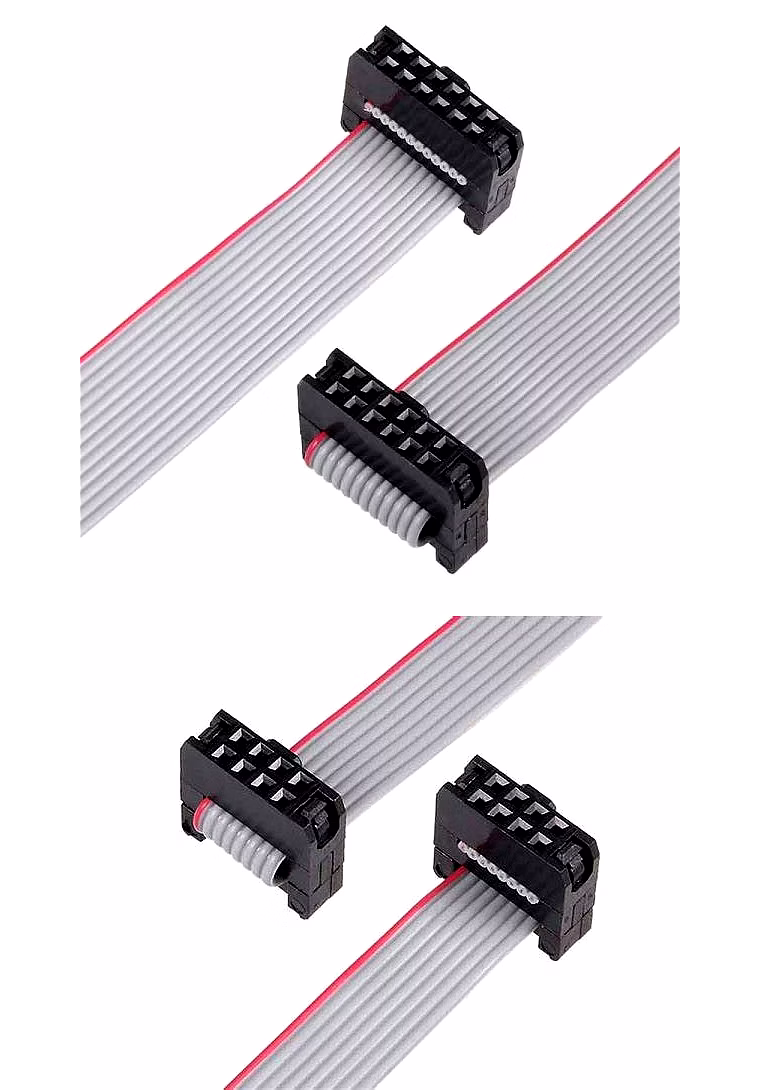

The Ribbon Connector Assembly from RFNT SOLUTION PRIVATE LIMITED is a versatile and reliable connection solution designed specifically for flat ribbon cables in industrial and electronic applications. Available in multiple pin counts including 6, 10, 14, 16, 20, 26, 34, 40, 50, and 64, and supporting pitches of 1.27 mm, 2.00 mm, and 2.54 mm, this connector assembly ensures compatibility with a wide range of devices and circuit designs. Both male and female variants are offered to provide flexible connection options. It caters to flat ribbon cables ranging from 28 to 26 AWG, with IDC press-fit or crimp termination methods providing secure and efficient cable attachment. The cable's grey color with red edge marking allows for easy polarity identification. Designed to withstand voltage ratings from 30V to 300V and current ratings of 1A per contact, this ribbon connector assembly operates reliably within -20°C to +85°C environmental conditions. It features high insulation resistance and low crosstalk for signal integrity, making it ideal for PLCs, I/O modules, industrial automation equipment, servo drives and CNC machines, computer and embedded systems, medical and test instruments, and control panels. This product supports various connector types including IDC ribbon connectors, box header connectors, D-Sub IDC connectors, MDR ribbon connectors, and board-to-board ribbon connectors, thereby catering to a broad range of industrial and electronic assembly needs.
Key Features
| Features | Description |
|---|---|
| Pin Counts | 6, 10, 14, 16, 20, 26, 34, 40, 50, 64 |
| Pitch Options | 1.27 mm, 2.00 mm, 2.54 mm |
| Connector Type | Male / Female variants |
| Cable Type | Flat ribbon cable (28–26 AWG) |
| Termination Method | IDC press-fit / crimp |
| Colour Coding | Grey cable with red edge marking |
| Voltage Rating | 30V – 300V |
| Current Rating | 1A per contact |
| Operating Temperature | -20°C to +85°C |
| Insulation Resistance | High with low crosstalk |
| Applications | PLC & I/O modules, industrial automation, servo drives, CNC machines, embedded systems, medical equipment, control panels |
| Attributes | Description |
|---|---|
| Pin Count Range | 6 to 64 pins |
| Pitch | 1.27 mm / 2.00 mm / 2.54 mm |
| Connector Gender | Male and Female |
| Cable Gauge | 28 to 26 AWG |
| Termination | IDC press-fit or crimp termination |
| Cable Colour | Grey with red edge marking |
| Voltage Rating | 30V to 300V |
| Current per Contact | 1A |
| Operating Temperature Range | -20°C to +85°C |
| Insulation Resistance | High insulation with low crosstalk |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Ribbon Connector Assembly is available in pin counts of 6, 10, 14, 16, 20, 26, 34, 40, 50, and 64 pins.
This connector assembly supports pitch sizes of 1.27 mm, 2.00 mm, and 2.54 mm.
It offers IDC press-fit and crimp termination methods for secure cable attachment.
The assembly is compatible with flat ribbon cables ranging from 28 AWG to 26 AWG.
Yes, it is suitable for industrial automation equipment, including PLC & I/O modules, servo drives, and CNC machines.
The connector assembly operates reliably within -20°C to +85°C.
Brand: rfnt
Country Of Origin: India
Ribbon Connector Assy from RFNT is specified for industrial automation equipment, with available details focused on the product format, stated configurations, and ordering points buyers typically confirm before approval. Exact mating, dimensional, and application requirements are not fully specified here and should be verified against your drawing or approved sample
Overview
Ribbon Connector Assy from RFNT is specified for industrial automation equipment, with available details focused on the product format, stated configurations, and ordering points buyers typically confirm before approval. Exact mating, dimensional, and application requirements are not fully specified here and should be verified against your drawing or approved sample
Configuration Details
Ribbon Connector Assy is described with details such as female cable type: flat ribbon cable (28-26 awg), plus termination: idc press-fit / crimp. These points help buyers compare construction style, connection method, and assembly layout against the intended build
Stated Attributes
Stated attributes include pin counts: 6, 10, 14, 16, 20, 26, 34, 40, 50, 64 and pitch: 1.27 mm / 2.00 mm / 2.54 mm. Where ratings, dimensions, or counts affect fit, confirm the exact requirement before production or replacement planning
Selection Guidance
The provided product text references use contexts such as industrial automation equipment and medical & test equipment. Buyers can use these references to align the assembly with documented equipment or harness requirements
Ordering Notes
For purchasing control, confirm connector make, part version, cable length, wire size, and any protection or labeling requirement that applies to your build. That review is especially important where the listing states customization, multiple makes, or buyer-specific configuration
