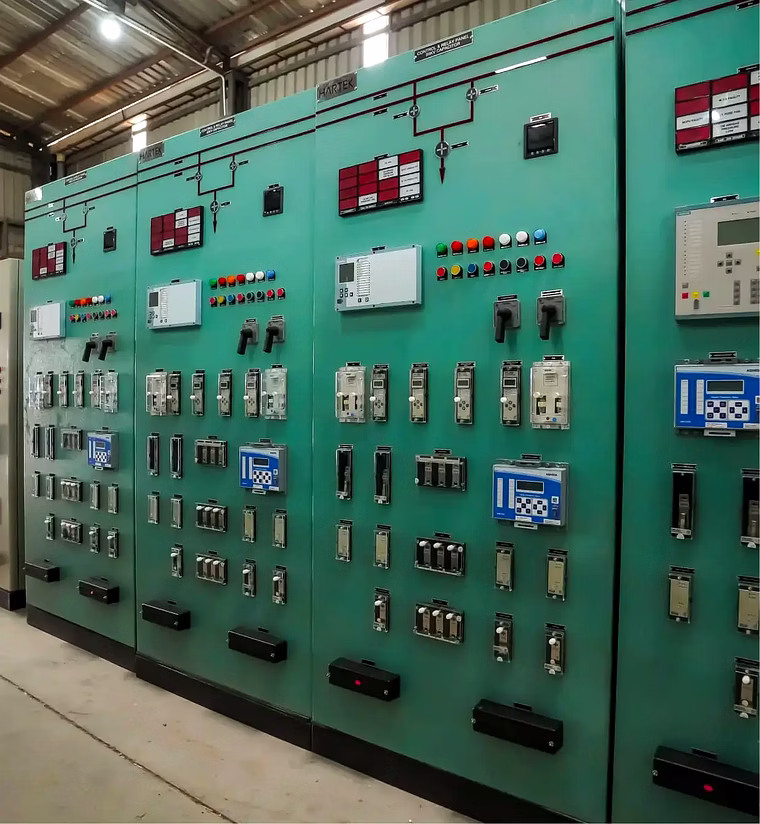

The Control Relay Panel for Substation Systems up to 220kV is an advanced industrial power control solution designed specifically for high-voltage electrical substations and industrial power systems. Engineered to operate within voltage levels ranging from 11kV to 220kV, this control panel integrates comprehensive monitoring, control, and protection functions crucial for stable substation operations and industrial power management. Featuring a robust SCADA-enabled interface, the panel facilitates centralized real-time supervisory control and system status monitoring through its mimic display with LED indicators or semaphore signaling, providing clear visual cues for operators. The panel is available in simplex or duplex enclosure configurations, supporting flexible system layouts, redundancy, or enhanced relay integration. Strategically designed with a bottom cable entry system and spacious cable termination areas, it ensures organized wiring, simplified maintenance, and easy access within control room environments. Its modular layout supports future scalability allowing seamless upgrades or additional control circuit installations. With an IP5X indoor protection rating, an 80–120 micron protective coating, and Siemens Grey finish standards (RAL 7032 and RAL 631), the control relay panel guarantees durability and aesthetic consistency across installations. This panel is ideal for integrating into electrical substations, power plants, telecom infrastructures, railway power systems, and other heavy industrial applications requiring precise and reliable power control and protection up to 220 kV.
Key Features
| Features | Description |
|---|---|
| Voltage Range | Supports high-voltage systems at 11kV, 33kV, 66kV, 132kV, and 220kV |
| SCADA Integration | Enables centralized monitoring and supervisory control within grid and plant systems |
| Enclosure Configurations | Available in Simplex or Duplex formats for redundancy or expanded relay setup |
| Display Interface | Equipped with mimic display featuring LED indicators or semaphore signaling for operational status |
| Cable Management | Bottom cable entry and spacious termination area for organized wiring and maintenance |
| Protection Rating | IP5X ingress protection suitable for indoor environments |
| Control Voltages | Supports 24VDC, 110VDC, and 220VDC control circuits |
| Surface Coating | 80–120 microns protective coating ensuring corrosion resistance |
| Panel Color & Finish | Siemens Grey RAL 7032 and RAL 631 standard finishes |
| Customizable Layout | Panel dimensions and layout configurable to specific project requirements |
| Attributes | Description |
|---|---|
| Operational Voltage | 11kV, 33kV, 66kV, 132kV, 220kV |
| Enclosure Type | Simplex or Duplex |
| Degree of Protection | IP5X |
| Control Voltage | 24VDC, 110VDC, 220VDC |
| Monitoring Interface | SCADA with mimic display (LED/Semaphore) |
| Cable Entry | Bottom Entry |
| Surface Coating Thickness | 80–120 microns |
| Panel Finish Color | Siemens Grey (RAL 7032, RAL 631) |
| Panel Dimensions | Configurable based on customer requirements |
| Installation Environment | Indoor substations and industrial control rooms |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the panel supports SCADA integration to allow centralized monitoring and supervisory control compatible with existing grid or plant automation systems.
Simplex enclosures are suited for standard setups, while duplex configurations provide redundancy or accommodate more complex relay arrangements for enhanced system reliability.
Bottom cable entry offers structured cable routing within control rooms, streamlining wiring management and facilitating easier maintenance access.
No, the panel is rated IP5X designed for indoor installation environments typical of control rooms within substations or industrial facilities.
Yes, panel size and layout can be adapted according to project specifications ensuring precise fit and functional optimization.
Brand: hartik
Country Of Origin: India
Control Relay Panel used for monitoring, control, and protection functions in high-voltage power systems up to 220 kV. Structured panel design supports organized substation and industrial control integration, while SCADA connectivity and mimic display interfaces assist operators with clear operational supervision and coordinated system management.
Control Relay Panel Overview
Control Relay Panel supports monitoring, control, and protection functions within electrical substations, industrial facilities, and utility power systems. The panel architecture is commonly integrated into high-voltage networks handling operational levels from 11kV up to 220kV, supporting structured control and relay operations.
Application in Power System Control
Relay panels coordinate supervisory control across substations, power plants, industries, telecom infrastructure, and railway power systems. Control circuits and relay assemblies support equipment monitoring and operational coordination across transmission and distribution installations.
Monitoring Interface and Control Integration
SCADA-compatible monitoring enables centralized supervisory control within grid management environments. A front-mounted mimic display equipped with LED indicators or semaphore signaling allows operators to observe equipment status and relay activity during routine system operations.
Panel Construction and Access Configuration
The enclosure can be configured in simplex or duplex formats depending on system layout or redundancy requirements. Bottom cable entry assists structured cable routing inside control rooms, while spacious cable termination areas support organized wiring and maintenance access.
Electrical Ratings and Surface Protection
The control relay panel is designed for integration with systems operating at 11kV, 33kV, 66kV, 132kV, and 220kV. IP5X protection supports indoor installation environments, while an 80–120 micron protective coating and Siemens Grey RAL finishes provide standardized panel appearance.
