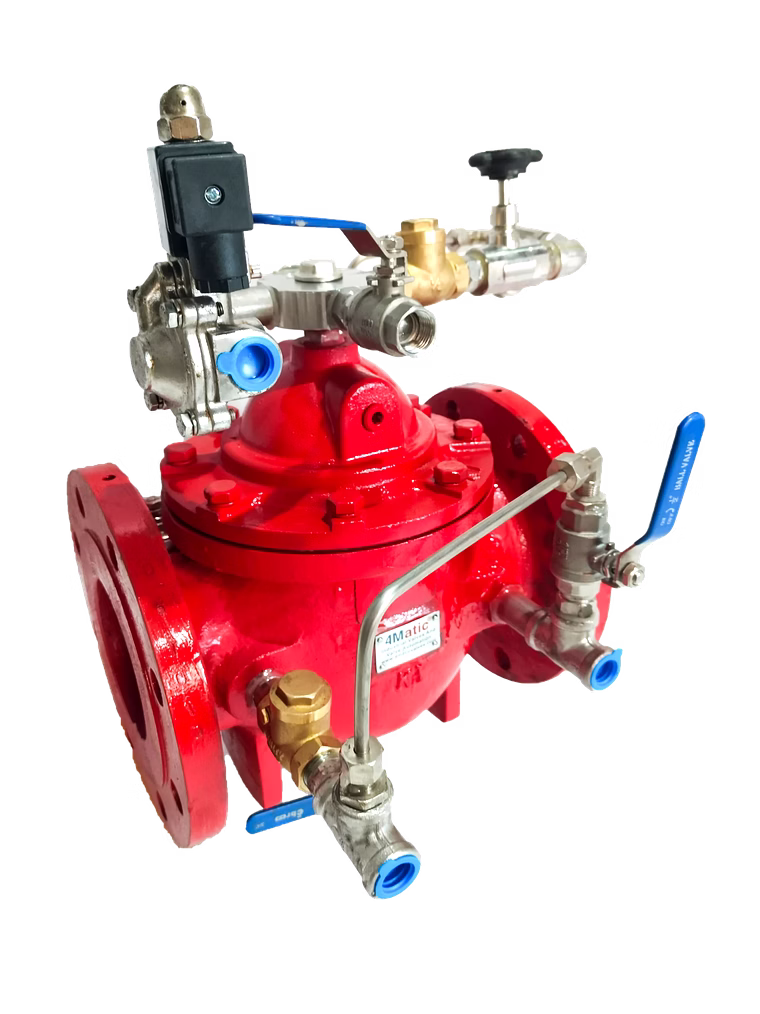

The 4MDLG Series Deluge Valve with Alarm System is a precision-engineered fire protection valve designed for high-risk environments requiring immediate and uniform water discharge. Suitable for sizes ranging from 1 1/2" to 8", this valve features a robust construction using diverse materials such as Cast Iron (CI), Ductile Iron (DI), WCB, CF8, CF8M, and Bronze to withstand inlet pressures up to 16 kg/cm². Equipped with durable seals made of NBR or EPDM, and flanged ends, the valve is ideal for water and fire fighting applications. It operates by staying normally closed under regular conditions, instantly opening upon fire detection system activation to allow water flow to all system nozzles or sprinklers simultaneously, ensuring rapid fire suppression. Additionally, its integrated alarm system provides both audible and visual alerts to facilitate immediate response, enhancing operational safety in critical infrastructure. This valve is optimally suited for industrial plants, commercial complexes, and any high-risk facilities requiring stringent fire control measures.
Key Features
| Features | Description |
|---|---|
| Size Range | 1 1/2" to 8" |
| Body Material Options | Cast Iron (CI), Ductile Iron (DI), WCB, CF8, CF8M, Bronze |
| Maximum Inlet Pressure | Up to 16 kg/cm² |
| Seal Material | NBR / EPDM |
| End Connection Type | Flanged Ends |
| Primary Application | Water / Fire Fighting |
| Valve Operation | Normally Closed, opens immediately on fire detection |
| Integrated Alarm System | Provides instant audible and visual indication |
| Response Time | Rapid discharge to all open sprinklers/nozzles |
| Compliance | Engineered for critical & high-risk fire protection applications |
| Attributes | Description |
|---|---|
| Nominal Size | 1 1/2" to 8" |
| Body Material | CI / DI / WCB / CF8 / CF8M / Bronze |
| Max Inlet Pressure | Up to 16 kg/cm² |
| Seal Material | NBR / EPDM |
| End Type | Flanged |
| Operating Condition | Normally closed; activated by fire detection system |
| Application | Water and fire fighting systems |
| Alarm Features | Integrated audible and visual alarm system |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The 4MDLG Series Deluge Valve is offered in several body materials including Cast Iron (CI), Ductile Iron (DI), WCB, CF8, CF8M stainless steel, and Bronze to suit different installation environments and pressure requirements.
The integrated alarm system activates instantly with both audible and visual signals upon valve operation, providing rapid notification of fire activation to ensure prompt response and safety.
This deluge valve supports a maximum inlet pressure of up to 16 kg/cm², making it suitable for a range of high-pressure fire fighting applications.
It is engineered specifically for critical and high-risk applications requiring fast and uniform water discharge in fire fighting, including industrial facilities, commercial buildings, and infrastructure with stringent fire protection needs.
While primarily designed for fire fighting applications, the valve is compatible with water systems where instant discharge safety protocols are necessary and can be adapted accordingly.
Country Of Origin: India
4MDLG Series Deluge Valve with Alarm System is a high-performance fire protection solution engineered for critical & high-risk applications where instant and uniform water discharge is essential. Designed with precision engineering, this system delivers rapid response, reliable operation, and maximum safety, aligned with 4Matic’s commitment to intelligent valve technology.
The valve remains normally closed and opens immediately upon activation by a fire detection system, allowing water to flow simultaneously to all open sprinklers or nozzles. The integrated alarm system provides instant audible and visual indication, ensuring fast emergency response.
