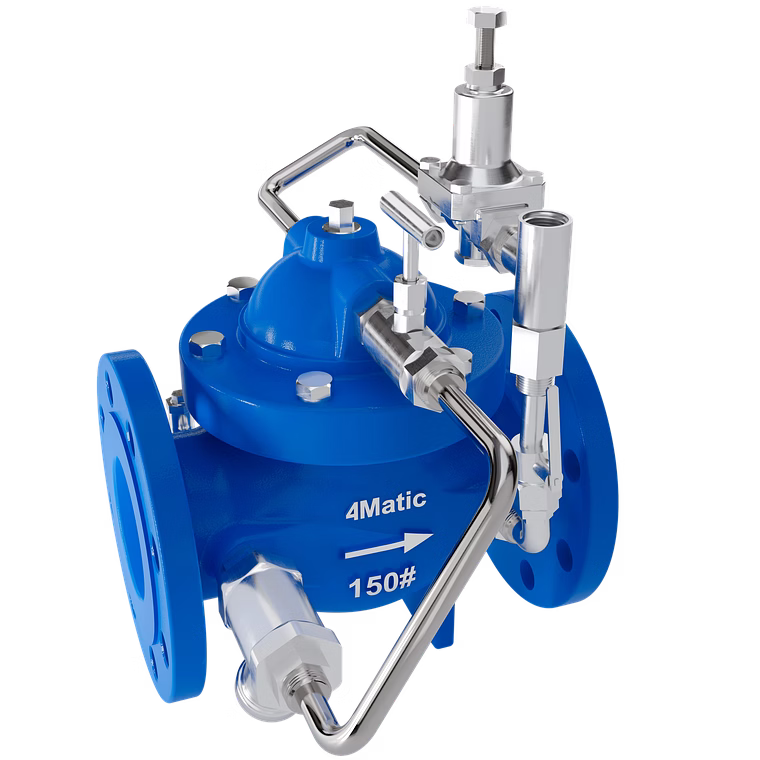

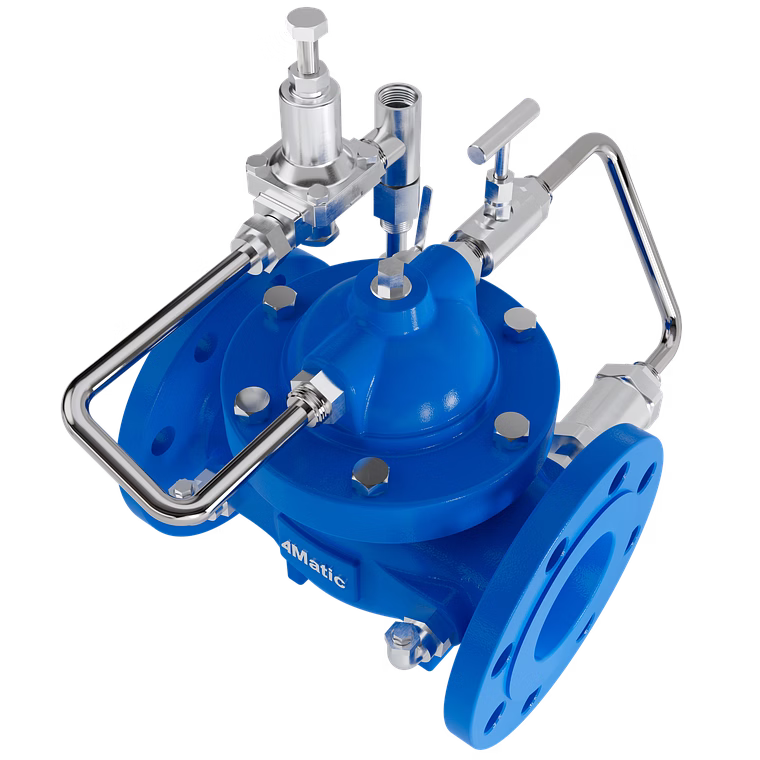

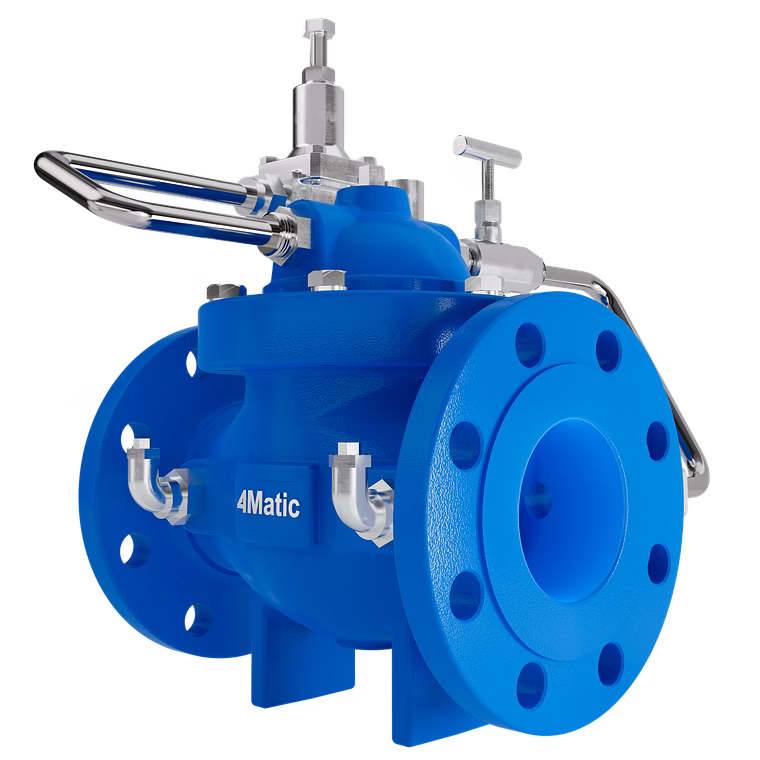

The 4MRPS Series Pilot Operated Pressure Reducing Valve (PRV) is expertly engineered to provide reliable and precise pressure regulation in pipelines where controlling high inlet pressures is critical. This valve is tailored to maintain outlet pressure at a safe and consistent level, ensuring system safety and operational efficiency across various industrial applications including water, oil, and gas supply systems. The valve comprises three integral components that work in tandem to adjust and stabilize pressure effectively. Constructed from high-grade materials such as CI, WCB, CF8, and CF8M, the 4MRPS Series offers superior durability and corrosion resistance, further enhanced by a protective epoxy coating that extends valve service life in demanding environments. The valve design supports flexible sealing options including NBR, EPDM, and Viton, accommodating different media and service conditions. With size options ranging from 1.5" to 32", and temperature handling up to 150°C, this pilot operated PRV is versatile enough for heavy industrial use. Installation of the 4MRPS Series ensures prevention of pipe damage due to pressure surges, maintaining steady outlet pressure irrespective of fluctuations in inlet pressure, thereby safeguarding downstream equipment and processes.
Key Features
| Features | Description |
|---|---|
| Pressure Regulation Type | Pilot Operated Pressure Reducing Valve |
| Material Construction | Cast Iron (CI), WCB, Stainless Steel Grades CF8 and CF8M |
| Size Range | 1.5 inches to 32 inches |
| Maximum Operating Temperature | Up to 150°C |
| Maximum Inlet Pressure | 12 kg/cm² |
| Pressure Adjusting Range | 1-6 kg/cm², 4-10 kg/cm², 10-16 kg/cm² |
| Seal Material Options | NBR, EPDM, Viton (other materials on request) |
| End Connections | Flanged |
| Surface Protection | Epoxy Coating for enhanced corrosion resistance |
| Application | Water, Oil, Gas pipelines |
| Attributes | Description |
|---|---|
| Body Material | CI / WCB / CF8 / CF8M |
| Temperature Capacity | Up to 150°C |
| Size Range | 1.5" to 32" |
| Pressure Range (Inlet) | Up to 12 kg/cm² |
| Pressure Adjusting Range | 1-6 kg/cm² | 4-10 kg/cm² | 10-16 kg/cm² |
| Seal Materials | NBR / EPDM / Viton |
| End Type | Flanged |
| Coating | Epoxy Coating |
| Suitable Media | Water, Oil, Gas |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The 4MRPS Series PRV comes standard with NBR, EPDM, and Viton seals, providing adaptability for various media. Custom sealing materials can also be requested to meet specific application requirements.
The epoxy coating significantly enhances corrosion resistance, protecting the valve body from harsh environments and extending its operational lifespan in water, oil, and gas pipeline applications.
The 4MRPS Series PRV can handle a maximum inlet pressure of 12 kg/cm². It regulates and maintains a consistent outlet pressure within the adjustable range regardless of variations in inlet pressure.
Yes, the valve is available in sizes ranging from 1.5 inches up to 32 inches to accommodate a broad range of pipeline dimensions in industrial systems.
Absolutely, the 4MRPS Series is designed for use with water, oil, and gas pipelines, making it versatile for various industrial fluid control applications.
Country Of Origin: India
4MRPS Series Pilot Operated PRV is basically designed for the applications where there is a need To reduce the high level inlet pressure to a safe and consistent level of pressure per the requirement of a particular application. Following figure displays three main constituents of 4MRPS Series Pilot Operated PRV.
Salient Features :
Why Choose 4Matic PRVs?
The 4Matic Pilot Operated PRV isn’t just a valve it’s a commitment to safety, reliability, and innovation. Whether you’re operating in water distribution, industrial processing, or critical infrastructure, this valve delivers unmatched performance tailored to your needs.
Applications:
Specification :
