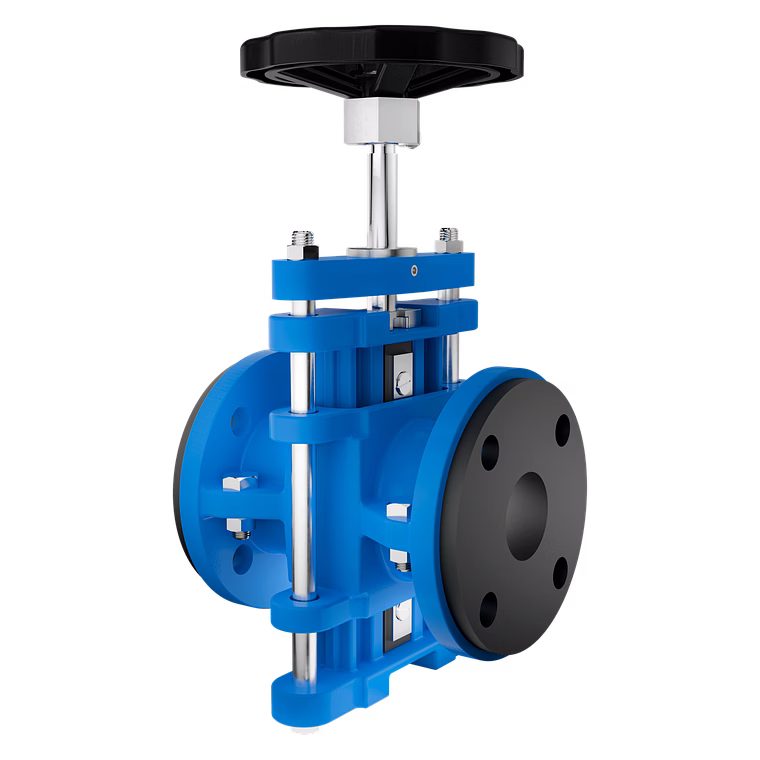

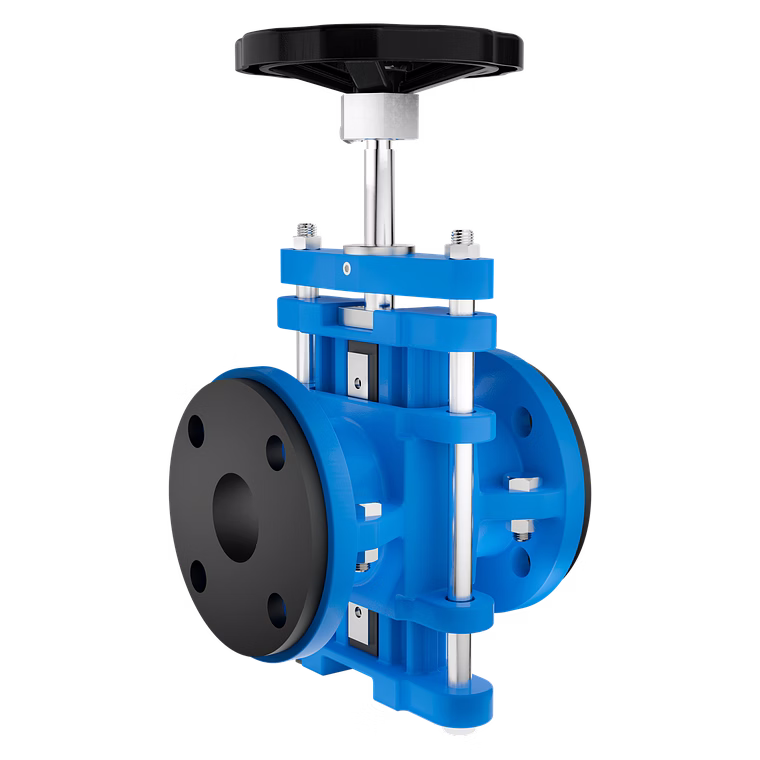

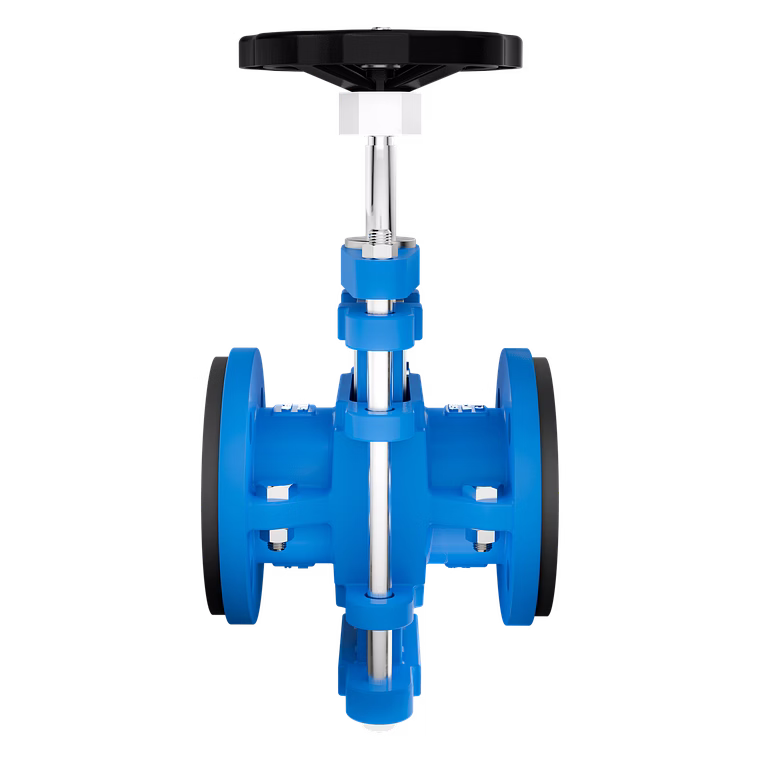

The 4MCPF Series Pinch Valve is a robust manually operated pinch valve designed for precise flow control of fluids, slurries, and gases in demanding industrial environments. Featuring a durable elastomer sleeve, the valve achieves tight, bubble-tight sealing by pinching the flow passage when the handwheel is turned, ensuring zero leakage even under high pressure. This valve series supports a size range of 40mm to 300mm and is constructed from industrial-grade materials such as Cast Iron (CI), Ductile Iron (DI), WCB, Stainless Steel 304, and Stainless Steel 316, enabling excellent resistance to abrasion and corrosion. With operational limits up to 180°C temperature and pressures reaching 6 kg/cm², the 4MCPF pinch valve is ideally suited for applications involving slurry, mining, chemical processing, and wastewater treatment. Its rugged construction combined with elastomer sleeve versatility enables it to manage abrasive and corrosive media effectively, making it a preferred choice for industries aiming for reliable, leak-proof flow regulation.
Key Features
| Features | Description |
|---|---|
| Operation Type | Manual handwheel operation for precise flow control |
| Sealing Mechanism | Elastomer sleeve provides bubble-tight shutoff ensuring zero leakage |
| Size Range | 40mm to 300mm |
| Material Construction | CI, DI, WCB, Stainless Steel 304, Stainless Steel 316 |
| Maximum Temperature | Up to 180°C |
| Maximum Pressure | Up to 6 kg/cm² |
| Suitable Media | Slurry, mining waste, chemicals, abrasive and corrosive fluids |
| Industry Applications | Mining, chemical processing, food processing, wastewater treatment |
| Durability | High resistance to abrasion and corrosion due to elastomer sleeve and body material |
| Testing | Rigorous factory testing for reliability and safety assurance |
| Attributes | Description |
|---|---|
| Valve Type | Pinch Valve |
| Valve Series | 4MCPF |
| Operation | Manual handwheel |
| Materials | Cast Iron (CI), Ductile Iron (DI), WCB, Stainless Steel 304, Stainless Steel 316 |
| Sleeve Material | Durable elastomer rubber |
| Flow Control Method | Pinching elastomer sleeve to constrict flow |
| Size Range | 40mm - 300mm |
| Maximum Operating Temperature | 180°C |
| Maximum Operating Pressure | 6 kg/cm² |
| Common Applications | Slurry handling, mining, chemical processing, wastewater treatment |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The valve bodies are available in Cast Iron (CI), Ductile Iron (DI), WCB, Stainless Steel 304, and Stainless Steel 316 to suit various industrial requirements and resist corrosion and abrasion.
It utilizes a flexible elastomer sleeve that is pinched by the valve body, providing a bubble-tight seal which prevents any leakage even with abrasive and corrosive slurries.
The valve is rated to operate safely up to 180 degrees Celsius.
Yes, with elastomer sleeves and body materials resistant to corrosion, it is specifically designed for chemical processing environments.
The maximum operating pressure is up to 6 kg/cm², making it suitable for low to moderate pressure applications.
While primarily designed for slurry, mining, chemical, and wastewater treatment, the valve’s elastomer sleeves can be customized for food-grade materials depending on client requirements.
The valve operation is manual, controlled by turning the handwheel to apply pressure on the elastomer sleeve, thereby pinching the flow path and regulating the fluid passage.
Country Of Origin: India
A 4MCPF Series Pinch Valve is a type of valve used to control the flow of fluids or gases through a pipeline by pinching the valve body with a flexible elastomer sleeve. The valve is operated manually using a handwheel that controls the movement of the pinch mechanism.
Key features:
Operation: Turning the handwheel applies pressure to the elastomer sleeve, constricting the flow passage to regulate or stop the flow.
Material: Typically used for handling abrasive or corrosive materials because the flexible sleeve can be made from durable rubber or other elastomeric materials.
Sealing Mechanism: The pinch valve provides a tight, bubble-tight seal when closed, making it suitable for applications where zero leakage is important.
Applications: Often used in industries like mining, chemicals, food processing, and water treatment, especially where solid or slurry transport is involved.
