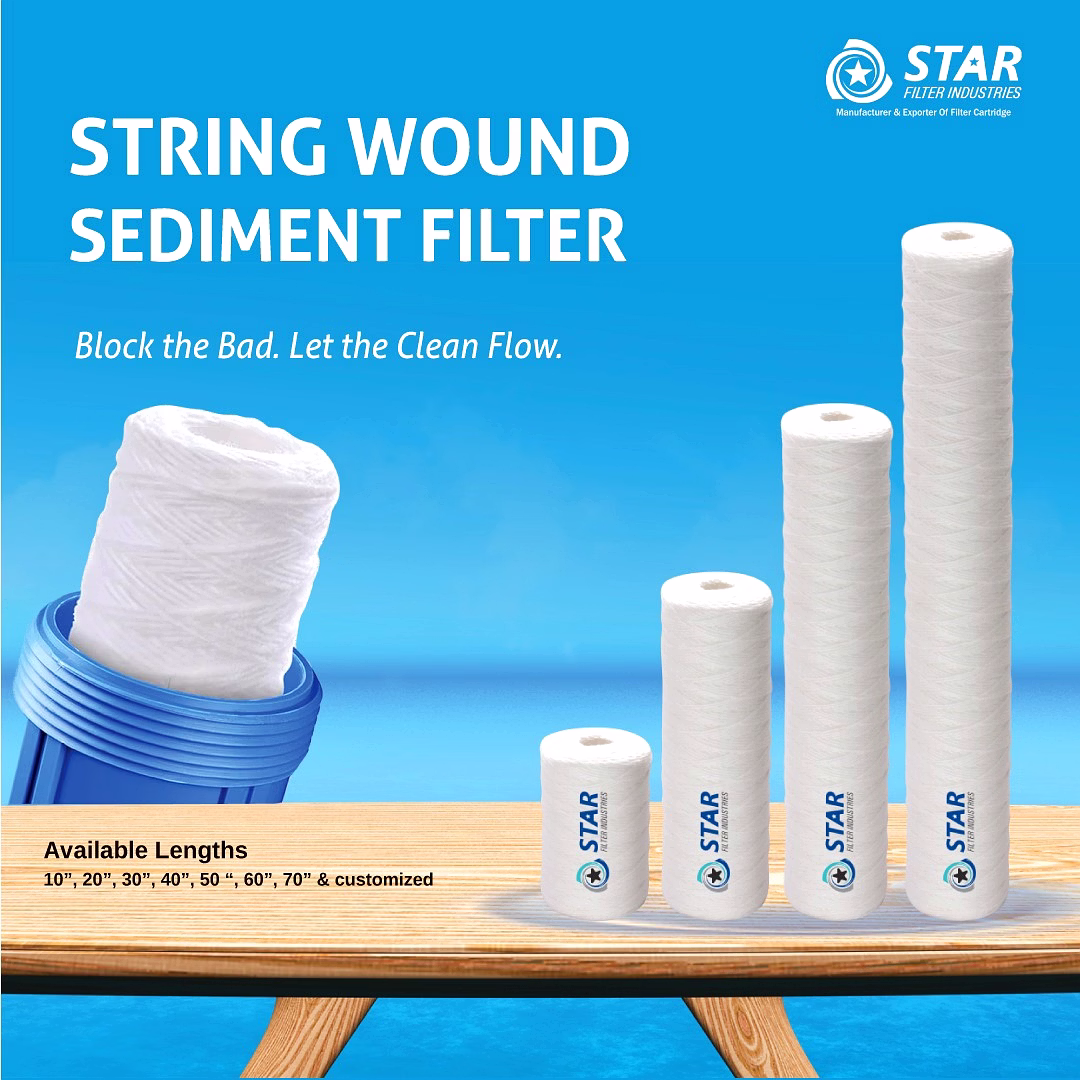

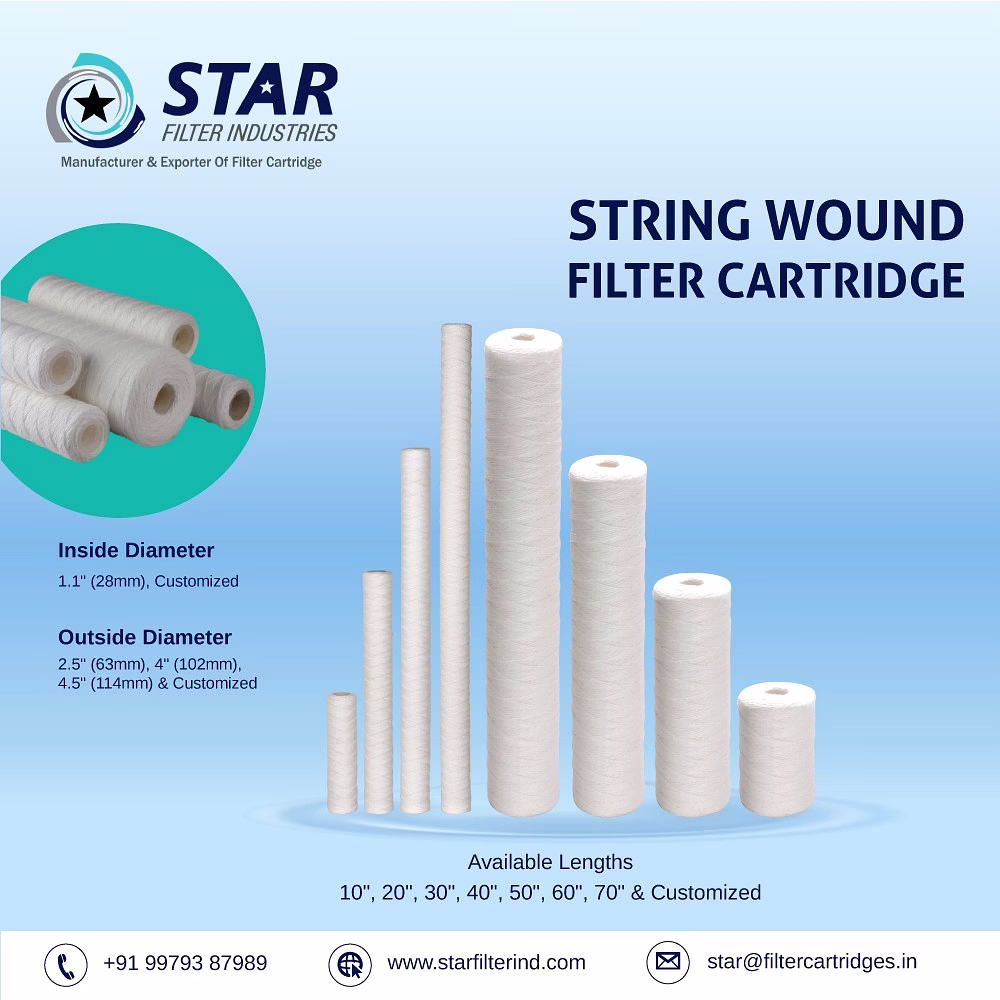

The Wound Filter Cartridge from STAR FILTER INDUSTRIES is a depth filtration solution designed for efficient removal of suspended solids, rust, dirt, and other sediment from liquids. Built with 100% polypropylene media, this cartridge uses tightly wound filter yarn around a center core to create a high-capacity depth filter that traps particles throughout the media structure, helping extend service life and reduce changeout frequency. This wound filter cartridge is available in multiple lengths including 10", 20", 30", 40", 50", 60", 70" and customized options, making it suitable for a wide range of industrial and commercial filtration systems. It is offered in several inside diameters such as 0.79" (20 mm), 1" (25 mm), 1.1" (28 mm), 1.18" (30 mm), and 1.97" (50 mm), along with outside diameters of 2.5" (63 mm), 4" (102 mm), 4.5" (114 mm), 6" (152 mm), and customized sizes to match specific housings. With micron ratings from 1 to 100 micron, this cartridge supports applications that require coarse to fine sediment filtration. The polypropylene construction is suitable for use up to a maximum temperature of 150°F (68°C), and its initial pressure drop ranges from 0.2 to 0.6 psi at 19 to 76 LPM, depending on length and micron rating. This makes the cartridge a practical choice for systems where stable flow, high dirt holding capacity, and consistent filtration performance are essential. Wound Filter Cartridges are commonly used in pre-filtration, industrial water treatment, process liquid filtration, chemical filtration, and other applications where sediment reduction is critical. Their depth filtration design provides better particle retention than surface-only media in many sediment-heavy liquids, making them a reliable and cost-effective filtration option for B2B buyers seeking customizable filter cartridges for demanding operations.
Key Features
| Features | Description |
|---|---|
| Filter Media | 100% Polypropylene Media |
| Construction Type | Wound depth filter with layered string around center core |
| Length Options | 10", 20", 30", 40", 50", 60", 70" and customized |
| Micron Ratings | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 micron |
| Temperature Resistance | Maximum 150°F (68°C) for polypropylene |
| Sediment Holding Capacity | High dirt-holding capacity for rust, dirt, and suspended solids |
| Attributes | Description |
|---|---|
| Product Name | Wound Filter Cartridge |
| Brand/Store Name | STAR FILTER INDUSTRIES |
| Filter Media | 100% Polypropylene |
| Filter Type | Depth filter |
| Construction | Cotton or polypropylene string wound around center core |
| Length | 10", 20", 30", 40", 50", 60", 70" and customized |
| Inside Diameter | 0.79" (20 mm), 1" (25 mm), 1.1" (28 mm), 1.18" (30 mm), 1.97" (50 mm) |
| Outside Diameter | 2.5" (63 mm), 4" (102 mm), 4.5" (114 mm), 6" (152 mm) and customized |
| Micron Rating | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 micron |
| Maximum Temperature | 150°F (68°C) |
| Initial Pressure Drop | 0.2 to 0.6 psi |
| Flow Rate | 19 to 76 LPM depending on length and micron rating |
| Application | Removal of sediment, rust, dirt, and suspended solids from liquids |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Its depth filter construction with layered wound media provides high dirt-holding capacity, allowing it to trap rust, dirt, and suspended solids throughout the cartridge rather than only on the surface.
Yes, it is available in multiple inside diameters, outside diameters, and customized lengths, making it suitable for different housing specifications.
The cartridge is available in 1, 3, 5, 10, 20, 25, 30, 50, 75, and 100 micron ratings.
It is suitable up to 150°F (68°C) for polypropylene, which makes it appropriate for many standard industrial liquid filtration applications.
The flow rate ranges from 19 to 76 LPM, depending on the cartridge length and micron rating.
