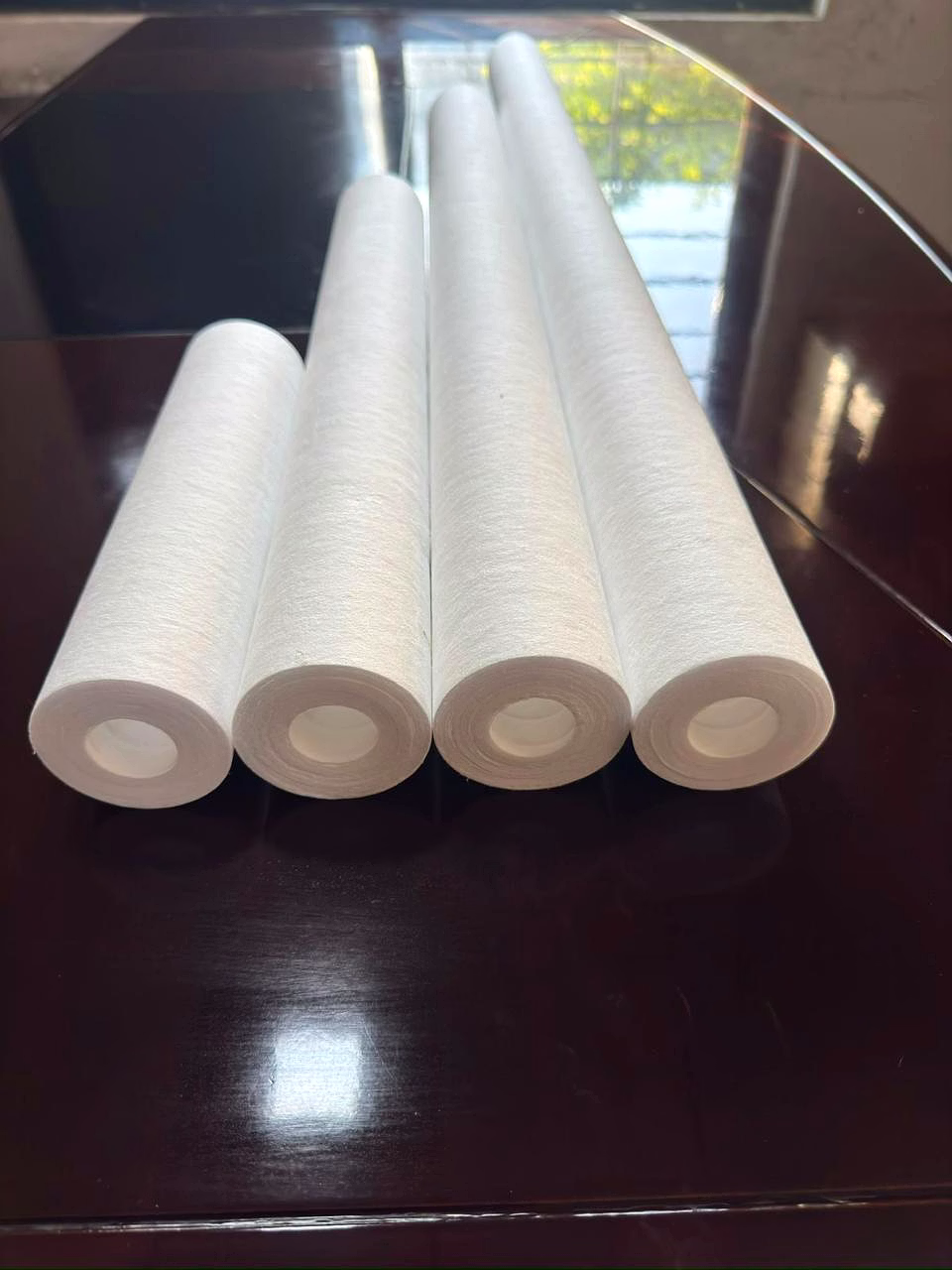

The PP Filter Cartridge by STAR FILTER INDUSTRIES is a high-performance melt-blown polypropylene filter designed for efficient sediment filtration in various industrial and commercial applications. Crafted from 100% polypropylene media, this cartridge ensures superior chemical resistance, durability, and thermal stability up to 150°F (68°C). Available in multiple lengths from 10" to 70" and customizable sizes, it suits diverse filter housings and flow requirements. The cartridge offers a wide range of micron ratings from 1 to 100 microns, guaranteeing precise filtration of suspended particles without imparting any sedimentary taste or odor to the filtered fluids. With various inside and outside diameter options and multiple end cap configurations—such as Polypro-226, PolyPro core/extender, flat/closed, and Poly-222 fin—the cartridge provides adaptability for seamless integration into different filtration systems. Ideal for water treatment, food & beverage, pharmaceutical, and chemical industries, this PP Filter Cartridge is engineered to deliver reliable, long-lasting performance while maintaining clean and clear liquids.
Key Features
| Features | Description |
|---|---|
| Filter Media | 100% Polypropylene |

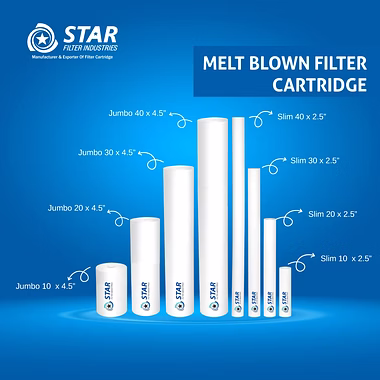

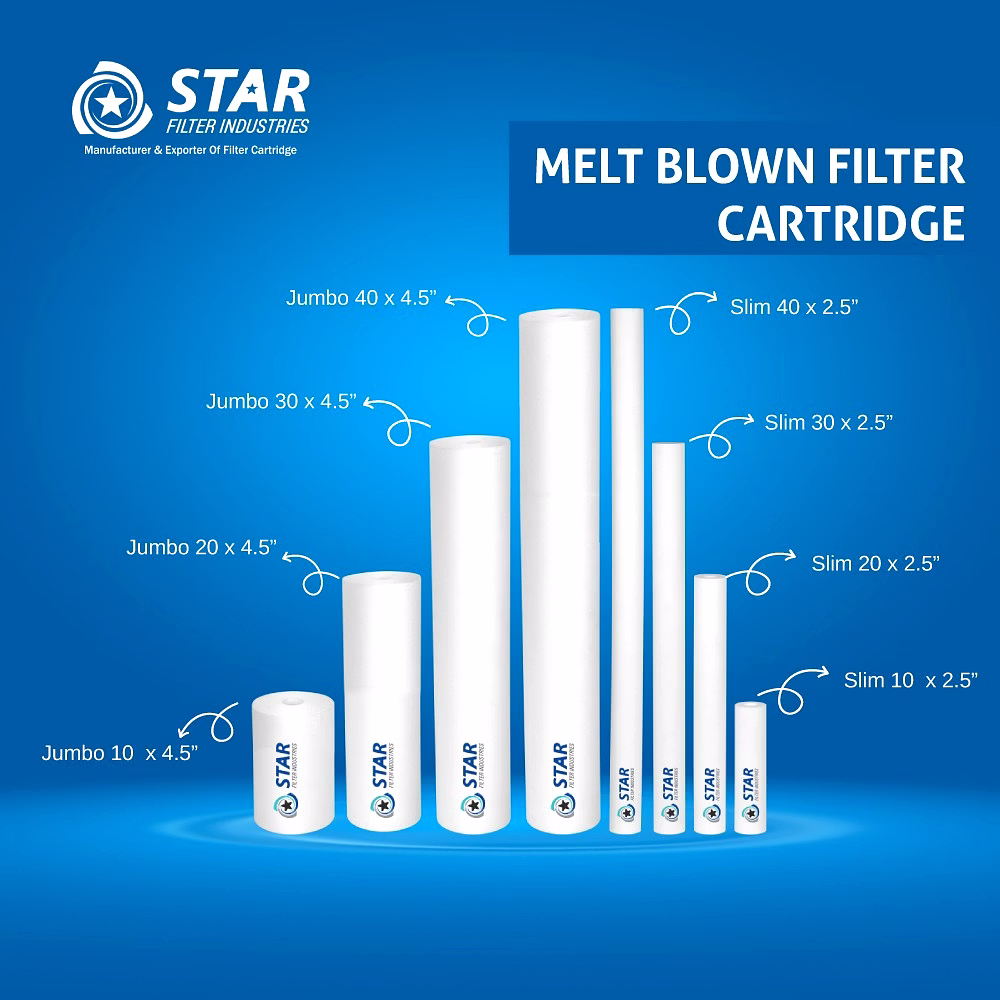

| Available Lengths | 10" to 70" and Customizable |
| Inside Diameter | 0.79" (20mm), 1" (25mm), 1.1" (28mm), 1.18" (30mm), 1.97" (50mm), Customized |
| Outside Diameter | 2.5" (63mm), 4" (102mm), 4.5" (114mm), 6" (152mm), Customized |
| Maximum Temperature | 150°F (68°C) |
| Micron Rating | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 microns |
| Initial Pressure Drop | 0.2 to 0.6 psi at 19 to 76 LPM |
| Flow Rate | Dependent on length and micron rating |
| End Cap Options | Polypro-226, PolyPro Core/Extender, Flat/Closed, Poly-222, Fin |
| Filter Cartridge Type | Melt-blown polypropylene cylindrical cartridge |
| Attributes | Description |
|---|---|
| Material Composition | 100% Polypropylene |
| Length Range | 10" - 70" and customizable |
| Inside Diameter Options | 0.79" (20mm), 1" (25mm), 1.1" (28mm), 1.18" (30mm), 1.97" (50mm), Custom |
| Outside Diameter Options | 2.5" (63mm), 4" (102mm), 4.5" (114mm), 6" (152mm), Custom |
| Maximum Operating Temperature | 150°F (68°C) |
| Micron Ratings Available | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 microns |
| Initial Pressure Drop | 0.2 to 0.6 psi at 19 to 76 LPM |
| End Cap Configurations | Polypro-226, PolyPro Core/Extender, Flat/Closed, Poly-222, Fin |
| Filter Type | Melt-Blown Polypropylene Cartridge |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The PP Filter Cartridge is made from 100% melt-blown polypropylene media, ensuring chemical resistance and thermal stability.
Micron ratings range from 1 to 100 microns to accommodate various filtration needs.
Yes, lengths from 10" to 70" and diameters can be customized to fit specific system requirements.
The maximum operating temperature is 150°F (68°C), suitable for most industrial water filtration applications.
Various end caps are available including Polypro-226, PolyPro core/extender, flat/closed, and Poly-222 fin designs.
Country Of Origin: India
