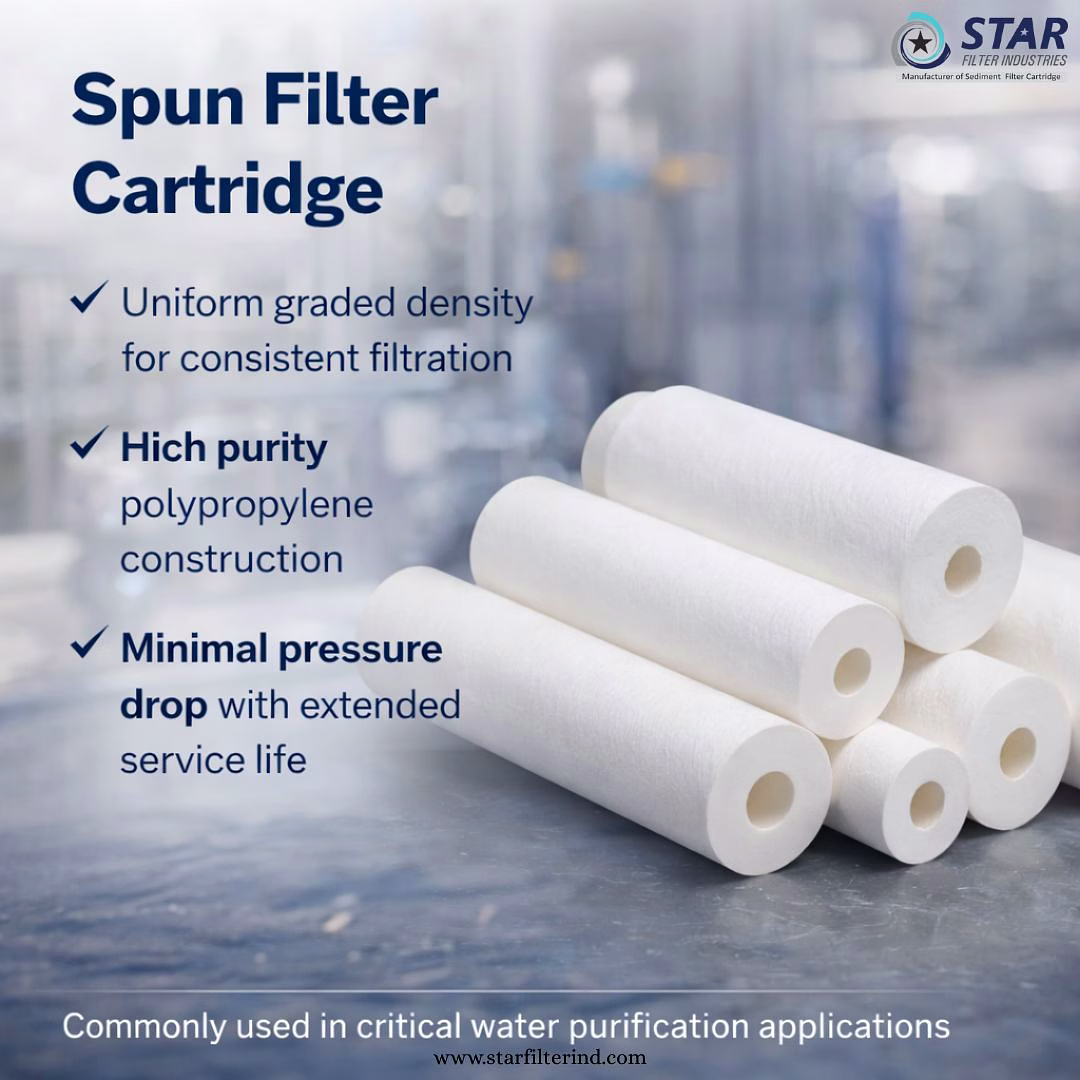

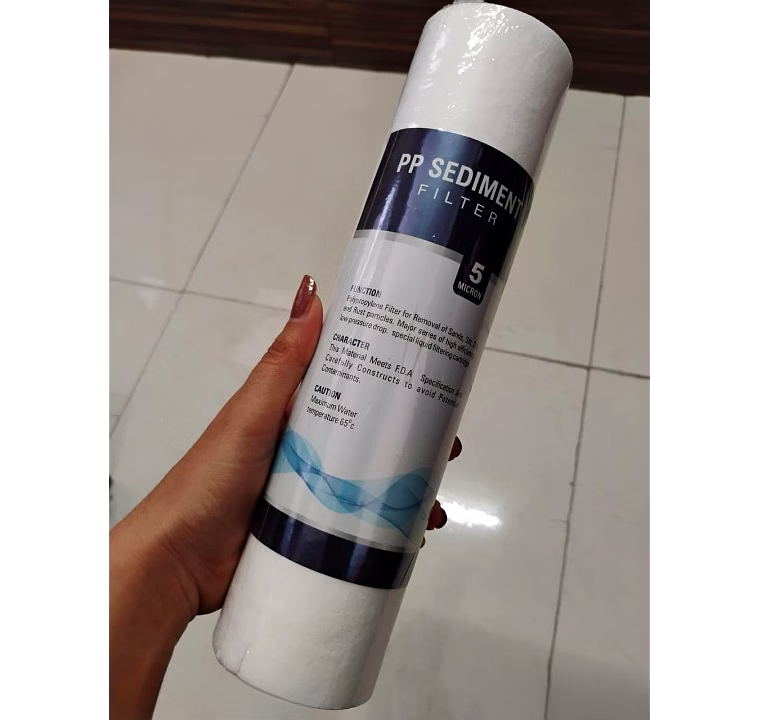

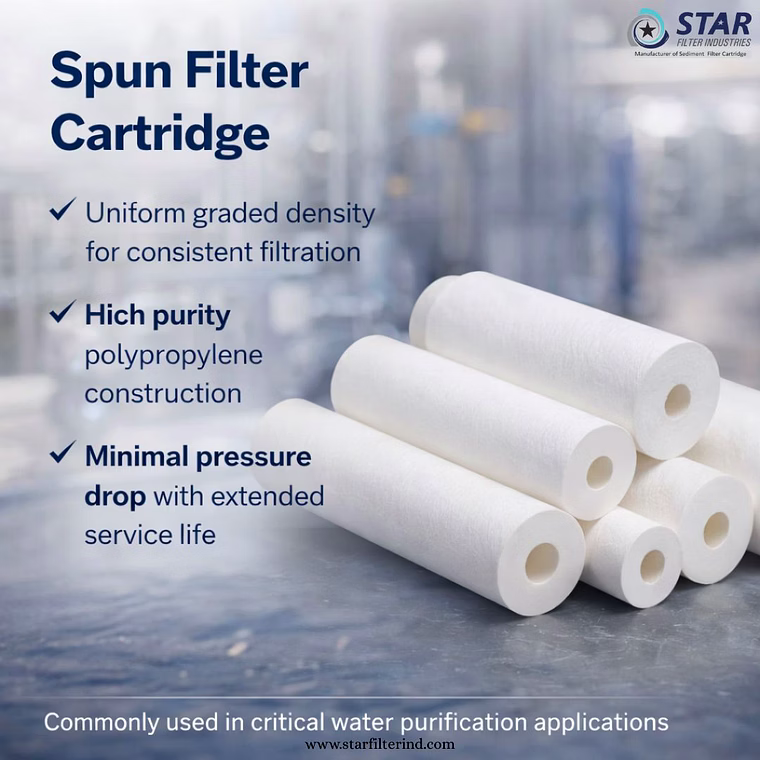

The Spun Filter Cartridge by STAR FILTER INDUSTRIES is a high-quality filtration solution designed with 100% pure polypropylene media. Available in multiple lengths ranging from 10" to 70" and customizable sizes, these cartridges offer versatile inside diameters (20mm to 50mm) and outside diameters (63mm to 152mm), tailored to meet specific industrial filtration requirements. Engineered to handle maximum temperatures up to 150°F (68°C), the cartridge’s micron rating options span from 1 to 100 microns, providing precise filtration performance for various applications including industrial, chemical, pharmaceutical, food & beverage, cosmetics, and water treatment sectors. Featuring robust end cap options such as Polypro-226, PolyPro Core/Extender, and others, this spun bonded filter cartridge ensures durability and effective contaminant removal. Its thermal bonding process produces a low-density, highly efficient filter media ideal for use as both prefilter and final filter. The cartridge supports flow rates dependent on length and micron rating, typically ranging from 19 to 76 LPM at an initial pressure drop between 0.2 to 0.6 psi, making it adaptable to diverse system needs. With a minimum order quantity (MOQ) of 1 unit, it enables flexible procurement for industrial buyers seeking reliable filtration media from STAR FILTER INDUSTRIES.
Key Features
| Features | Description |
|---|---|
| Filter Media | 100% Pure Polypropylene Microfibres |
| Available Lengths | 10", 20", 30", 40", 50", 60", 70" & Customized |
| Inside Diameter | 0.79" (20mm), 1" (25mm), 1.1" (28mm), 1.18" (30mm), 1.97" (50mm) & Customized |
| Outside Diameter | 2.5" (63mm), 4" (102mm), 4.5" (114mm), 6" (152mm) & Customized |
| Maximum Operating Temperature | 150°F (68°C) |
| Micron Rating Options | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 microns |
| Flow Rate | 19 to 76 LPM depending on length and micron rating |
| Initial Pressure Drop | 0.2 to 0.6 psi |
| End Cap Varieties | Polypro-226, PolyPro Core/Extender, Flat/Closed, Poly-222, Fin |
| Manufacturing Process | Thermal bonding of pure polypropylene microfibres |
| Attributes | Description |
|---|---|
| Media Type | Polypropylene spun bonded |
| Length Options | 10" - 70" and custom lengths |
| Inner Diameter Options | 20mm to 50mm, customizable |
| Outer Diameter Options | 63mm to 152mm, customizable |
| Max Temperature | 150°F (68°C) |
| Micron Ratings | 1 to 100 microns |
| Flow Capacity | 19-76 LPM depending on size and rating |
| Initial Pressure Drop | 0.2 - 0.6 psi |
| End Cap Types | Multiple variants including Polypro-226 and Poly-222 |
| MOQ | 1 unit |
| Units | Numbers |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the cartridge can be customized in length (10" to 70" standard, plus custom sizes) and inside/outside diameters as per client requirements.
The maximum temperature limit for the polypropylene material in the cartridge is 150°F (68°C).
Micron ratings are available in a range from 1 micron up to 100 microns, providing flexibility for varied filtration needs.
This product offers multiple end cap types including Polypro-226, PolyPro Core/Extender, Flat/Closed, Poly-222, and Fin variants to fit different filtration housing requirements.
Yes, the spun bonded polypropylene media is approved and suitable for pharmaceutical, food, beverage, and cosmetic filtration applications.
Country Of Origin: India
Inclusive of all taxes
You Save: 0
Rajkot , India
Manufacturer, Brand Owner, Exporter, Importer
GST- 24adxfs2098a1zt
