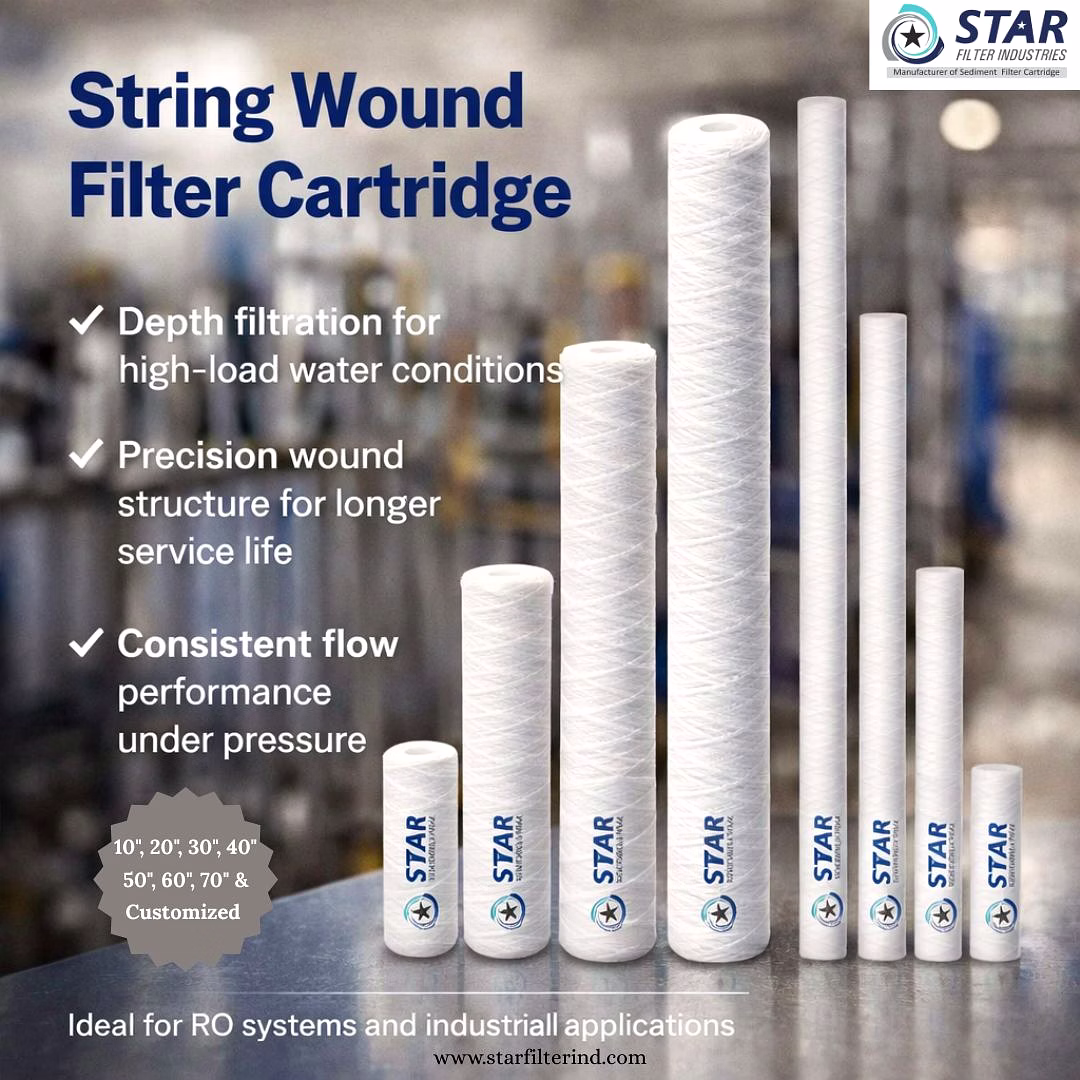

The Wound Filter Cartridge from STAR FILTER INDUSTRIES is a high-performance filtration component designed specifically for efficient sediment removal in various industrial liquid filtration applications. Constructed with 100% polypropylene media, this filter cartridge offers excellent chemical resistance and durability, ideal for demanding environments. Available in multiple lengths including 10", 20", 30", 40", 50", 60", 70", or custom sizes, it provides flexibility to fit diverse filter housings. The wound design features tightly wrapped polypropylene strings around a robust core, creating a depth filter that effectively traps large volumes of sediment such as rust, dirt, and other particulates, ensuring cleaner liquids and prolonged downstream equipment life. With inside diameters of 1.1" (28 mm) and outside diameters ranging from 2.5" (63 mm) to 4.5" (114 mm) or customized sizes, this filter cartridge fits a broad range of filtration systems. Operating safely at temperatures up to 180°F (82°C), it supports demanding industrial processes. Its micron rating options vary widely from 1 to 100 microns, enabling precision filtration to meet specific process requirements. Additionally, versatile end cap options such as Polypro-226, PolyPro Core/Extender, flat/closed ends, Poly-222, and Fin designs facilitate easy installation and compatibility with various filter housings. This wound filter cartridge is an ideal choice for industries requiring reliable sediment removal with superior flow capacity and robust construction.
Key Features
| Features | Description |
|---|---|
| Filter Media | 100% Polypropylene |
| Available Lengths | 10", 20", 30", 40", 50", 60", 70", Custom sizes |
| Inside Diameter | 1.1" (28 mm), Customized |
| Outside Diameter | 2.5" (63 mm), 4" (102 mm), 4.5" (114 mm), Customized |
| Maximum Operating Temperature | 180°F (82°C) |
| Micron Rating | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 |
| End Cap Options | Polypro-226, PolyPro Core/Extender, Flat/Closed, Poly-222, Fin |
| Design Type | Wound Depth Filter with High Sediment Holding Capacity |
| Sediment Removal Capability | Effective removal of rust, dirt, and large particulates |
| Attributes | Description |
|---|---|
| Filter Material | 100% Polypropylene String |
| Lengths Available | 10", 20", 30", 40", 50", 60", 70", Custom |
| Inside Diameter | 1.1" (28 mm), Custom Sizes |
| Outside Diameter | 2.5" (63 mm), 4" (102 mm), 4.5" (114 mm), Customized |
| Micron Ratings | 1, 3, 5, 10, 20, 25, 30, 50, 75, 100 Microns |
| Maximum Operating Temperature | 180°F (82°C) |
| End Cap Types | Polypro-226, PolyPro Core/Extender, Flat/Closed, Poly-222, Fin |
| Core Construction | Polypropylene Core for Strength and Durability |
| Sediment Removal Type | Large Particulates, Rust, Dirt, Sediment |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Wound Filter Cartridge is available in standard sizes ranging from 10" to 70" in length, with inside diameters starting at 1.1" (28 mm) and outside diameters from 2.5" (63 mm) up to 4.5" (114 mm). Custom sizes can also be manufactured to meet specific application requirements.
The polypropylene filter media in this wound filter cartridge is rated for a maximum continuous operating temperature of 180°F (82°C), making it suitable for numerous industrial filtration processes requiring moderate heat resistance.
This wound filter cartridge offers a broad range of micron ratings to accommodate different filtration needs, including 1, 3, 5, 10, 20, 25, 30, 50, 75, and 100 microns.
Various end cap options are available including Polypro-226, PolyPro Core/Extender, Flat/Closed ends, Poly-222, and Fin styles to ensure compatibility with multiple filter housings and facilitate easy installation.
Yes, the depth filtration design using wound polypropylene strings provides excellent sediment holding capacity and is highly effective at removing large sediment such as rust, dirt, and other particulate matter from liquids.
Country Of Origin: India
