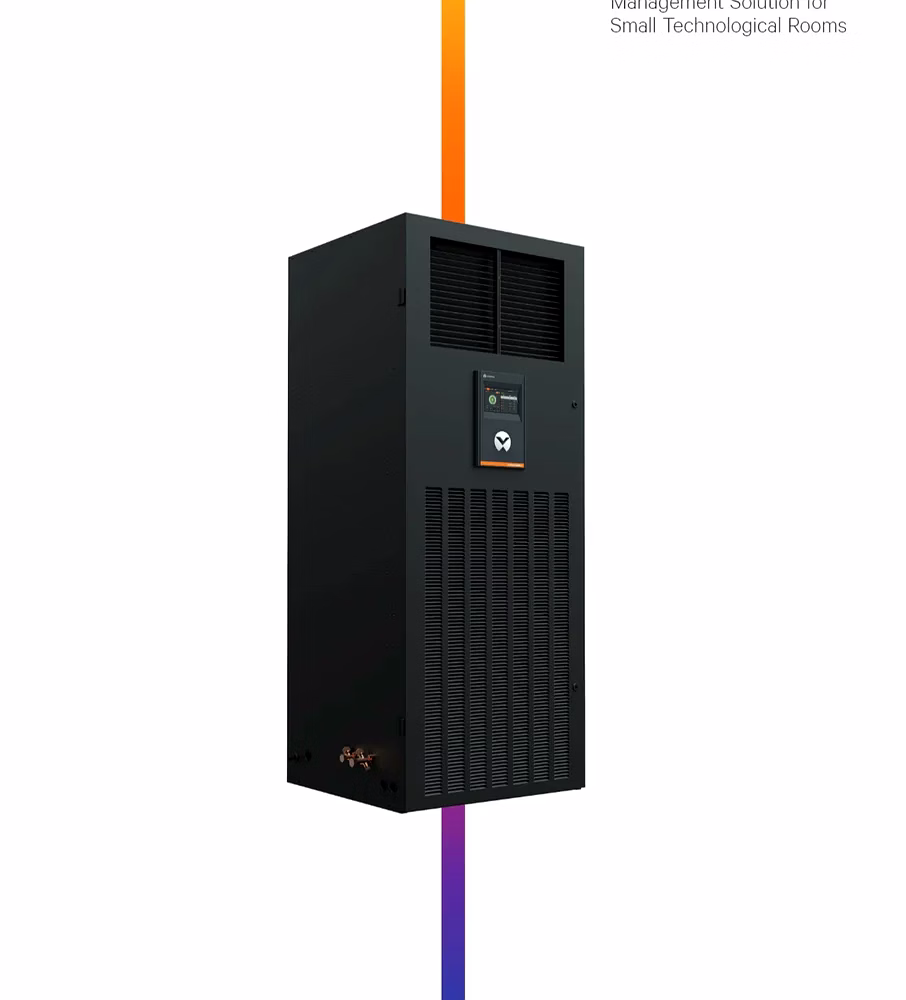

Vertiv DM 7 kW to 27 kW Thermal Management Solution – Modular Cooling Unit

Vertiv DM 7 kW to 27 kW is a modular thermal management unit designed for rack- and room-level cooling in high-density IT and industrial environments. The system architecture supports variable cooling capacities from 7 kW to 27 kW, allowing for staged redundancy and right-sized deployment as facility heat rejection profiles evolve. Utilizing EC fans and variable-speed drives, the unit maintains tight temperature and humidity setpoints through a PID-based control interface. Configured for large-volume projects, units ship on palletized skids with technical specifications and lot-based inspection reports. Supply readiness includes support for standard chilled-water or direct-expansion (DX) interfaces, addressing the procurement requirements of data centers and manufacturing plants requiring predictable thermal management with documented compliance for site acceptance testing.

Key Features

• Modular 7–27 kW capacity → enables staged redundancy and right-sizing for progressive facility thermal growth.
• Variable-speed EC fans → improves part-load energy efficiency and reduces acoustic signature in sensitive IT environments.
• Integrated PID control → provides narrow-band temperature and humidity regulation to protect sensitive electronic components.

Technical Attributes

• Cooling Range: 7–27 kW → selection parameter for matching localized rack or room heat loads.
• Operating Ambient: 0–45°C → defines the installation envelope without requiring thermal derating.
• Control Interface: Remote-monitoring ready → selection parameter for integration with facility BMS or SCADA.
• Fluid Connections: 1" to 2" BSP/NPT → ensure mechanical compatibility with existing plant piping headers.

Modular Architecture and Heat-Exchange Logic of Vertiv DM Cooling Units

The technical framework of the Vertiv DM 7 kW to 27 kW Thermal Management Solution utilizes a modular architecture consisting of a hermetic compressor stage (for DX models) and a high-efficiency brazed plate or fin-and-tube evaporator. This structure is engineered to balance refrigerant charge with pressure drop, ensuring stable heat removal across the entire 7–27 kW band. The mechanical frame uses a welded steel substructure with integrated anti-vibration mounts to isolate the unit’s mechanical noise from the connected equipment racks. Without this specific structural reasoning, transmitted vibration would cause microscopic displacement of server components, leading to "latent failure" and reduced disk drive lifespan. Quality consistency is managed through lot-based serial numbering and factory functional test certificates that record the unit's sensible cooling capacity at design conditions. A failure in the fan-speed synchronization logic leads to "airflow bypass," where cooled air recirculates back into the unit rather than the IT aisle—a failure mode that causes localized hot spots and equipment shutdowns.

Functional Performance and Efficiency Dynamics in High-Density Cooling

Operational efficiency is achieved through the unit’s variable-capacity modulation, which delivers part-load Coefficient of Performance (COP) improvements by preventing frequent compressor short-cycling. The control logic implements staged compressors and duty cycling to maintain the delta-T (temperature difference) across the evaporator core within target bands. If the unit detects a loss of fluid flow or a pressure drop beyond set thresholds, the PID controller triggers an alarm and initiates a fail-safe shutdown to protect the compressor from "liquid slugging"—a catastrophic failure where liquid refrigerant returns to the compressor, leading to mechanical rupture. Thermal stability is maintained even under fluctuating room loads, protecting sensitive electronics from "thermal drift." For industrial applications, the unit can be integrated with standard chilled-water loops, allowing for expansion using existing facility chillers. The on-board diagnostics report fan speeds and discharge pressures, enabling B2B facility managers to implement predictive maintenance schedules based on component run-hours and operational stress metrics, effectively reducing the total cost of ownership for the cooling infrastructure.

Institutional Deployment Readiness and Cross-Border Logistics for Thermal Units

Designed for data center aisles, process enclosures, and equipment rooms, the Vertiv DM is configured for the logistical requirements of large-volume supply. Units are packaged on palletized skids with corrosion-resistant banding and protective film to preserve the cabinet finish during multimodal transit. Failure to implement moisture-protected packaging results in localized oxidation of the heat-exchanger fins, which reduces the effective surface area for heat transfer and lowers the unit's kW rating upon installation. For international procurement, supply-readiness is supported by lot-specific test certificates and technical dossiers that facilitate customs clearance and regulatory review. Export-ready documentation include packing lists and commercial invoices formatted for regulatory filing. Packaging utilizes shock-absorbing skids to prevent mechanical misalignment of the brazed plate exchangers during transport. This high-authority approach ensures that procurement teams receive installation-ready components that meet the rigorous technical specifications of institutional cooling projects. Each unit is supplied with detailed service access manuals, providing the technical depth required for site commissioning and long-term asset management.
