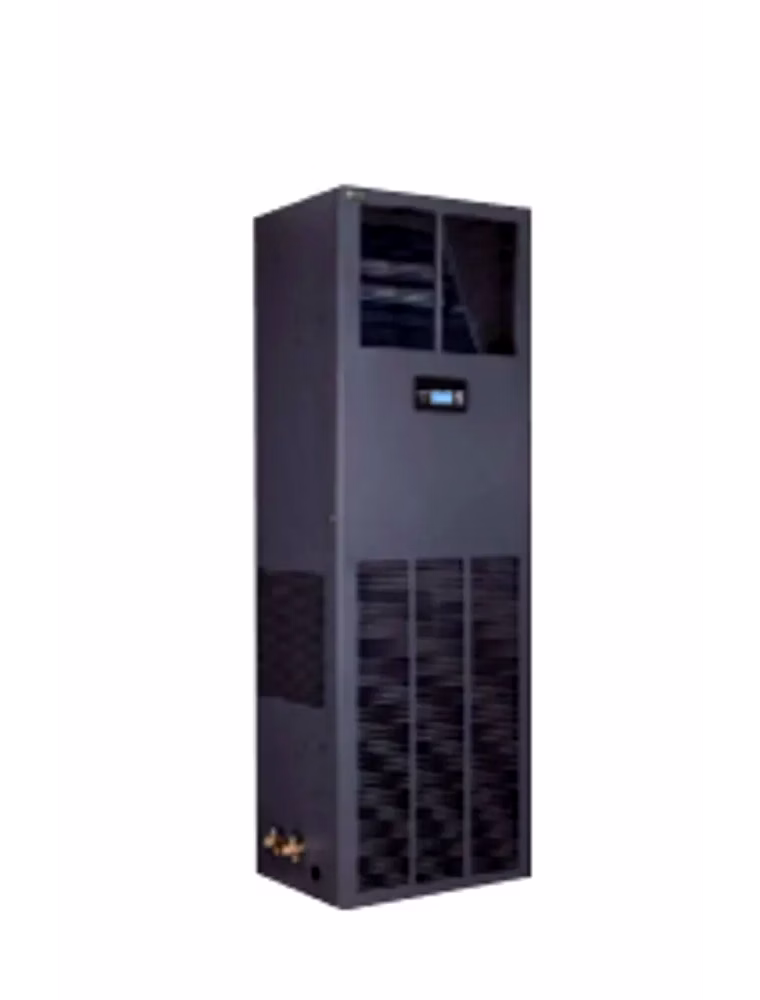

Liebert DM Air Cooled 12.5 kW – Packaged Cooling Module

Liebert DM Air Cooled 12.5 kW is a packaged thermal management system rated for small-to-medium equipment rooms and industrial technical spaces. Housed in a rigid mild-steel cabinet with an anti-corrosion finish, the unit integrates a refrigerant circuit, variable-speed axial fans, and a digital control interface to deliver 12.5 kW of sensible cooling. The architecture emphasizes structural stability and field-service accessibility, featuring front-access panels that reduce required clearance in tight mechanical aisles. Units are supplied in palletized crates with vibration-damping supports and corrosion-inhibiting film. Supply readiness includes lot-based test documentation and Modbus-ready controls, ensuring suitability for industrial procurement and integration into building management systems requiring documented performance baselines for site acceptance testing.

Key Features

• 12.5 kW nominal capacity → selection parameter for equipment-room sizing without requiring central plant chiller capacity.
• Mild-steel rigid cabinet → provides weldable mounting points and structural integrity for high-vibration industrial environments.
• Air-cooled condenser architecture → eliminates dependence on chilled-water infrastructure, simplifying rapid site commissioning.

Technical Attributes

• Cooling Capacity: 12.5 kW → primary selection criterion for matching room sensible heat loads.
• Ingress Protection: IP44 typical → selection parameter for indoor protected installations.
• Control Interface: Dry-contact / Modbus → integration choice for centralized facility monitoring.
• Refrigerant Circuit: Hermetic compressors → ensures a sealed, maintenance-reduced operating cycle.

Structural Architecture and Material Selection of Liebert DM Cooling Systems

The technical framework of the Liebert DM Air Cooled 12.5 kW utilizes a high-grade mild-steel enclosure with an internal layout that physically separates electrical control compartments from the refrigerant and airflow pathways. This compartmentalization is vital for reducing electrical heat gain into the cooled airstream and for preventing the "micro-arcing" that can occur if condensate moisture migrates into the switchgear. Internal structural members are treated with a corrosion-resistant coating specifically where they contact the drip pan, preventing the "pinhole corrosion" that leads to cabinet leaks and floor damage in equipment rooms. The structural reasoning for the mild-steel frame is to provide a robust mounting base for the hermetic compressors, which generate significant rotational vibration during startup cycles. Failure to maintain this mechanical rigidity results in "fatigue cracking" of the refrigerant piping, leading to a total loss of charge and catastrophic system failure. Quality consistency is maintained through lot-based electrical verification and factory leak testing (helium sniffer), with pass/fail records documented per unit to support procurement audits.

Functional Performance and Modulated Heat Rejection in Air-Cooled Modules

Operational efficiency is achieved through the unit’s variable-speed fans, which modulate condenser-side thermal transfer based on real-time ambient temperature sensors. This prevents "high-head" pressure trips during peak summer conditions and improves part-load efficiency by up to 20% compared to fixed-speed units. The control firmware implements setpoint hysteresis and soft-start sequencing to limit inrush currents—a critical operational standard for facilities utilizing generator backup where sudden 12.5 kW loads can destabilize the frequency. If the unit detects an "out of range" humidity or temperature event, it triggers local alarms and can initiate remote alerts via the Modbus interface. Functional stability is maintained through the use of axial fans with aerodynamic blade profiles, reducing the acoustic signature for installations near office areas. A failure to manage the "condensate lift" in the drip pan results in water overflow into the supply-air ducting; the Liebert DM utilizes a sloped pan with high-capacity drainage to mitigate this risk. By maintaining a stable leaving-air temperature, the unit protects critical IT equipment from thermal cycling, effectively extending the service life of server power supplies and networking components.

Institutional Deployment Readiness and Cross-Border Logistics for DM Units

Recommended for telecom shelters, remote equipment rooms, and manufacturing control cabinets, the Liebert DM is configured for the logistical requirements of large-scale procurement rollouts. Units are supplied in palletized crates with internal foam cushioning and shock indicators to protect the sensitive compressor alignment during multimodal transit. Failure to implement shock-mitigating packaging results in microscopic fractures in the compressor valve plates, which manifests as a loss of capacity months after site installation. For international projects, supply-readiness is supported through lot-specific technical specifications and compliance declarations that facilitate customs clearance. Export-ready documentation include unit-level inspection reports and wiring schematics provided in the technical dossier. Packaging utilize corrosion-inhibiting film to prevent atmospheric damage during maritime freight. OEM integration options, including custom paint finishes and private-label marking, are supported under controlled batching agreements. This high-authority approach ensures that procurement teams receive verified, site-ready hardware that meet the rigorous performance standards of global industrial and institutional markets, providing the technical and logistical transparency needed for multi-site facility management.
